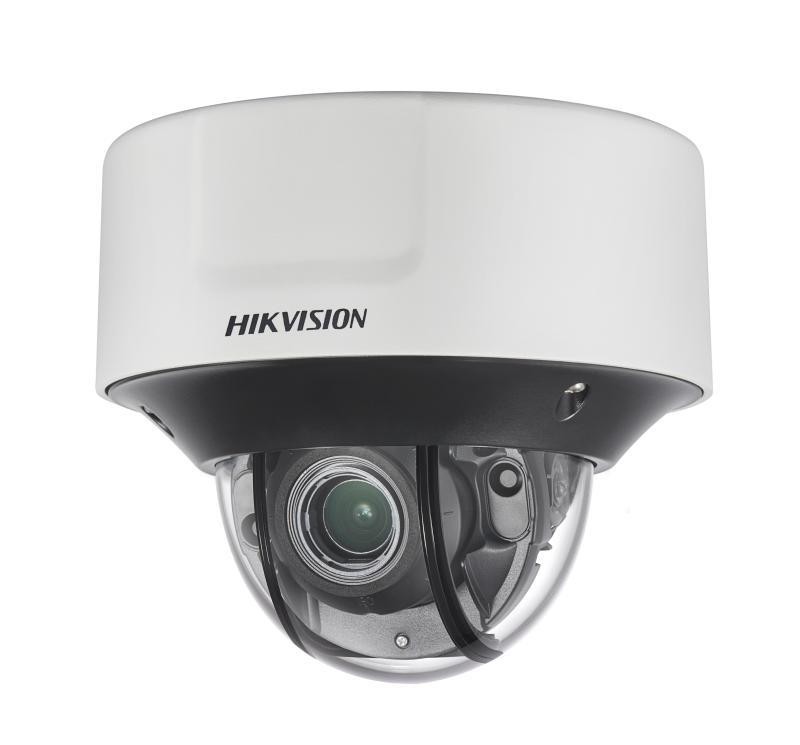

2 MP DeepinView Outdoor Moto Varifocal Dome Camera

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light thanks to LightFighter technology
Anti-IR reflection bubble guarantees image quality
Intelligent functions based on deep learning
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor network
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection
Water and dust resistant and vandal proof (IP67 and IK10).

View Less

Available models:

DS-2CD7526G0-IZHS(2.8-12mm)

DS-2CD7526G0-IZHS(8-32mm)

DS-2CD7526G0-IZS(2.8-12mm)

DS-2CD7526G0-IZS(2.8-12mm)(B)

DS-2CD7526G0-IZHS(2.8-12mm)(B)

DS-2CD7526G0-IZ(H)S

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/1.8ʺ Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range140 dB
Day & NightIR Cut Filter.
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens
FocusAuto, semi-auto, manual
Lens TypeMotorized lens, 2.8 to 12 mm and 8 to 32 mm optional
FOV2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
Aperture2.8 to 12 mm: F1.2 to 2.5 ,8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range
Lens MountIntegrated
Auto-IrisP-iris

Illuminator
IR Range2.8 to 12 mm: up to 30 m; 8 to 32 mm: up to 50 m
Wavelength850 nm

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ;60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Video Stream5 defined streams and up to 5 custom stream
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 ;Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream support
H.265+Main stream supports
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Target CroppingYes
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
Audio1-ch 3.5 mm input (line in), 1-ch 3.5 mm output (line out), mono
Alarm 1 input, 1 output (max. 24 VDC/VAC, 1A)
Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware ResetReset via reset button on camera body, web browser and client software
Communication Interface1 RJ45 10M/100M/1000M Ethernet port
Power Output12 VDC, max. 100 mA
Interface StyleConnector panel
Heater-H: yes

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,
CountingCounting

Deep Learning Function
Face CaptureFace detection performance: detects up to 30 faces at the same time ,Detectable face position: supports swing left and right from -65° to 65°,tilt up and down from -45° to 45°
Premier ProtectionLine crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

General
Linkage MethodTrigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email
Firmware Version5.5.90
Web Client Language32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions-IZS: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing), -IZHS: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)
Power Consumption and Current-IZS: With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 -IZHS: With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 "with extra load" means that an extra device is connected to and powered by the camera.
Camera DimensionCamera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″) ,With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Camera WeightCamera: 1450 g (3.2 lb.) ,With package: 1950 g (4.3 lb.)

Approval
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Environment2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Camera

Image Sensor

1/1.8ʺ Progressive Scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

140 dB

Day & Night

IR Cut Filter.

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focus

Auto, semi-auto, manual

Lens Type

Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional

FOV

2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°

Aperture

2.8 to 12 mm: F1.2 to 2.5 ,8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range

Lens Mount

Integrated

Auto-Iris

P-iris

Illuminator

IR Range

2.8 to 12 mm: up to 30 m; 8 to 32 mm: up to 50 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ;60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Video Stream

5 defined streams and up to 5 custom stream

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)

Custom Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 ;Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream support

H.265+

Main stream supports

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Smooth Streaming

Yes

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2

Network Storage

microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Target Cropping

Yes

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS, distortion correction

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio

1-ch 3.5 mm input (line in), 1-ch 3.5 mm output (line out), mono

Alarm

1 input, 1 output (max. 24 VDC/VAC, 1A)

Video Output

1Vp-p composite output (75 Ω/CVBS), only for adjustment

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset

Reset via reset button on camera body, web browser and client software

Communication Interface

1 RJ45 10M/100M/1000M Ethernet port

Power Output

12 VDC, max. 100 mA

Interface Style

Connector panel

Heater

-H: yes

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,

Counting

Deep Learning Function

Face Capture

Face detection performance: detects up to 30 faces at the same time ,Detectable face position: supports swing left and right from -65° to 65°,tilt up and down from -45° to 45°

Premier Protection

Line crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

General

Linkage Method

Trigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email

Firmware Version

5.5.90

Web Client Language

32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Startup and Operating Conditions

-IZS: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing), -IZHS: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)

Power Consumption and Current

-IZS: With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 -IZHS: With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 "with extra load" means that an extra device is connected to and powered by the camera.

Camera Dimension

Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″) ,With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)

Camera Weight

Camera: 1450 g (3.2 lb.) ,With package: 1950 g (4.3 lb.)

Approval

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Environment

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Camera

Image Sensor1/1.8ʺ Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range140 dB
Day & NightIR Cut Filter.
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

FocusAuto, semi-auto, manual
Lens TypeMotorized lens, 2.8 to 12 mm and 8 to 32 mm optional
FOV2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
Aperture2.8 to 12 mm: F1.2 to 2.5 ,8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range
Lens MountIntegrated
Auto-IrisP-iris

Illuminator

IR Range2.8 to 12 mm: up to 30 m; 8 to 32 mm: up to 50 m
Wavelength850 nm

Video

Max. Resolution1920 × 1080
Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ;60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Video Stream5 defined streams and up to 5 custom stream
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 ;Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream support
H.265+Main stream supports
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Audio

Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network

Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+


Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Target CroppingYes
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio1-ch 3.5 mm input (line in), 1-ch 3.5 mm output (line out), mono
Alarm 1 input, 1 output (max. 24 VDC/VAC, 1A)
Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware ResetReset via reset button on camera body, web browser and client software
Communication Interface1 RJ45 10M/100M/1000M Ethernet port
Power Output12 VDC, max. 100 mA
Interface StyleConnector panel
Heater-H: yes

Event

Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,
CountingCounting

Deep Learning Function

Face CaptureFace detection performance: detects up to 30 faces at the same time ,Detectable face position: supports swing left and right from -65° to 65°,tilt up and down from -45° to 45°
Premier ProtectionLine crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

General

Linkage MethodTrigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email
Firmware Version5.5.90
Web Client Language32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions-IZS: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing), -IZHS: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)
Power Consumption and Current-IZS: With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4 -IZHS: With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 "with extra load" means that an extra device is connected to and powered by the camera.
Camera DimensionCamera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″) ,With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Camera WeightCamera: 1450 g (3.2 lb.) ,With package: 1950 g (4.3 lb.)

Approval

EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Environment2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
