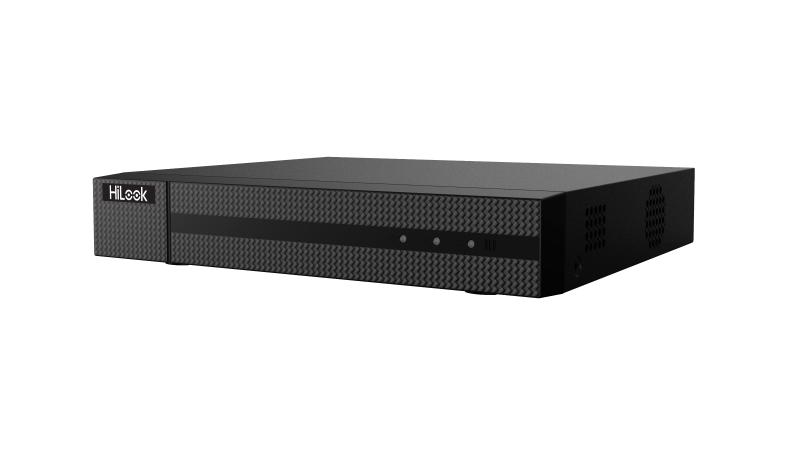

8-ch Mini 1U 4K NVR

  • Up to 8 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4-ch @ 1080p decoding capacity
  • 1 HDD for continuous video recording.

Available models:

DS-HiLookI-NVR-108MH-C(B)

Specification

  • Video and Audio
  • IP video input8-ch ,Up to 8 MP resolution
  • Incoming bandwidth80 Mbps
  • Outgoing bandwidth80 Mbps
  • HDMI/VGA outputHDMI:1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA:1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audio input1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding formatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous playback8-ch
  • Live view/Playback resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Capability1-ch @ 8 MP / 4-ch @ 1080p
  • Network
  • Network protocolsIPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS
  • Remote connection64
  • Hard disk
  • SATA1 SATA interface
  • CapacityUp to 6TB capacity for each disk
  • External interface
  • USB interface2 × USB 2.0
  • Interface
  • Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • General
  • Power supply12 VDC,≤18W
  • Consumption (without hard disk)≤10W
  • Working temperature-10 to +55º C (+14 to +131º F)
  • Working humidity10 to 90 %
  • Consumption(without hard disk)≤ 10 W
  • Dimensions(W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight(without hard disk)≤ 1 kg (2.2 lb)
