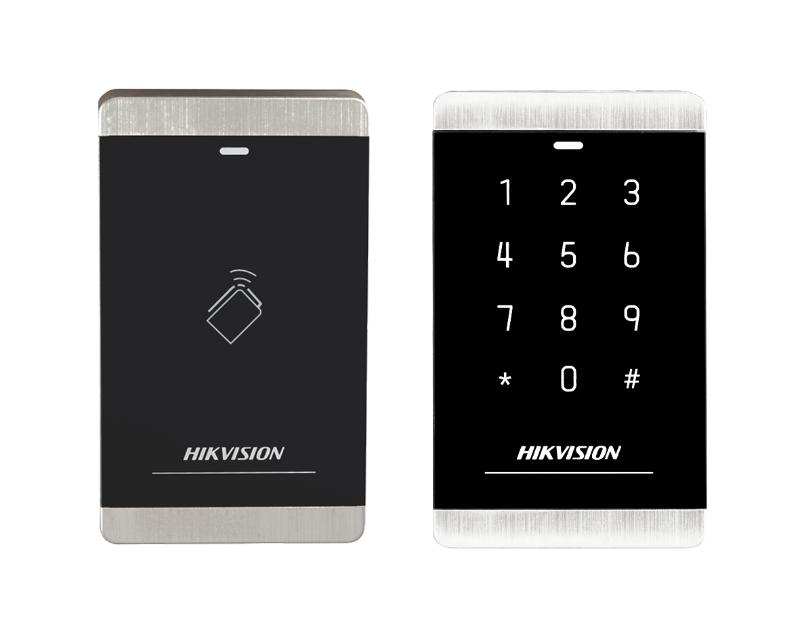

Pro 1103 Series Card Reader

  • M1 card reader
  • PC+ABS material shell with PMMA panel design
  • Built-in audible beeper
  • RS-485 and Wiegand interface
  • IP64
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1103M
DS-K1103MK
DS-K1103
Data Sheet

Specification

  • Authentication
  • Card reading frequency13.56MHz
  • General
  • Power supply12 VDC, ≤ 500 mA
  • Power consumption≤ 2 W
  • Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity10% to 90% (no condensing)
  • Dimensions129 mm × 76 mm × 14.7 mm (5.08" × 2.99" × 0.58")
  • Installation壁装吗？Only applied for120 Gang Box
  • Weight≤ 0.15 kg (0.3 lb)
  • KeypadDS-K1103M: No keypad DS-K1103MK: Keypad with 12 Keys (0 to 9, *, #)
  • BuzzerSupport
  • Function
  • ID settingsvia DIP Switch
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Authentication
Card reading frequency
13.56MHz
General
Power supply
12 VDC, ≤ 500 mA
Power consumption
≤ 2 W
Working temperature
-20 °C to 65 °C (-4 °F to 149 °F)
Working humidity
10% to 90% (no condensing)
Dimensions
129 mm × 76 mm × 14.7 mm (5.08" × 2.99" × 0.58")
Installation
壁装吗？Only applied for120 Gang Box
Weight
≤ 0.15 kg (0.3 lb)
Keypad
DS-K1103M: No keypad DS-K1103MK: Keypad with 12 Keys (0 to 9, *, #)
Buzzer
Support
Function
ID settings
via DIP Switch
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Authentication
  • Card reading frequency13.56MHz
General
  • Power supply12 VDC, ≤ 500 mA
  • Power consumption≤ 2 W
  • Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity10% to 90% (no condensing)
  • Dimensions129 mm × 76 mm × 14.7 mm (5.08" × 2.99" × 0.58")
  • Installation壁装吗？Only applied for120 Gang Box
  • Weight≤ 0.15 kg (0.3 lb)
  • KeypadDS-K1103M: No keypad DS-K1103MK: Keypad with 12 Keys (0 to 9, *, #)
  • BuzzerSupport
Function
  • ID settingsvia DIP Switch
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.0.4_201123
Traditional Card Reader Maintenance Project Release Note.pdf
Applied to:
DS-K1103M
DS-K1103MK
