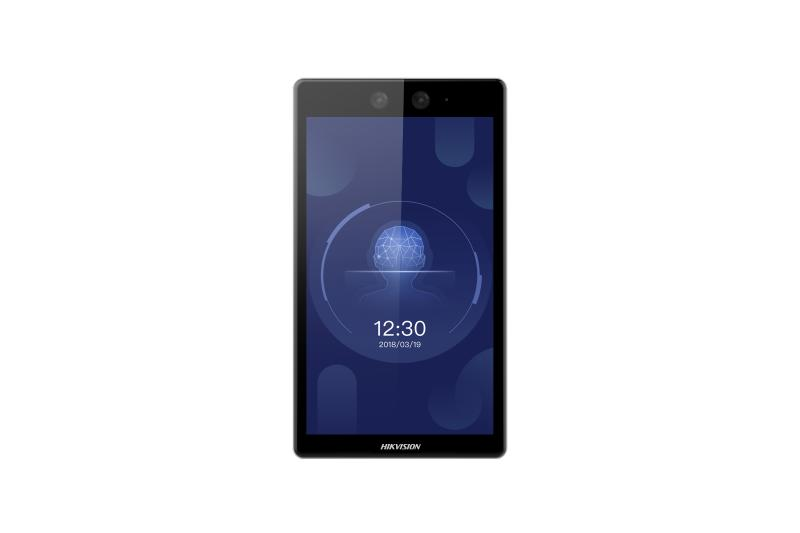

Ultra Series Wall-Mounted Face Access Terminal

  • 7-inch touch screen with bezel-less design
  • Presents card on the screen to authenticate card permission
  • Face recognition distance: 0.3 m to 3 m
  • 50,000 face capacity, 50,000 card capacity, and 50,000 event capacity
  • Face recognition duration < 0.2 s/User; face recognition accuracy rate ≥ 99%
  • Connects to one external card reader via RS-485 protocol
  • Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
  • Connects to external access controller or Wiegand card reader via Wiegand protocol
  • Two-way audio with indoor station and master station
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Configuration via the web client
  • Remotely opens door and starts live view via Hik-Connect
  • Supports ISAPI and EHome 5.0 protocol
  • Supports multiple languages: English, Thai, Russian, Spanish, and Arabic
  • Self-defined voice prompt of authentication result

Specification
  • System
  • CPU800MHz
  • Memory1GB
  • Flash8G
  • Operation systemLinux
  • Display
  • Dimensions7-inch
  • Resolution1024 × 600
  • TypeLCD
  • Operation methodCapacitive touch screen
  • Lumens≥350cd
  • Video
  • Pixel2 MP
  • Lens× 2 Visible light lens × 1,850nm Infrared lens × 1
  • Focal length4mm
  • WDR≥120DB
  • ApertureF2.0
  • HOVFOV=50°;FOH = 90°
  • Video standardPAL (Default) and NTSC
  • Audio
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Volume adjustmentSupport
  • Power output1.5W
  • Audio compression standardG.711U
  • Audio compression bitrate64Kbps
  • Tone qualityNoise Suppression and Echo Cancellation
  • Network
  • Wired network10 M/100 M/1000 M self-adaptive
  • Wi-FiSupport
  • 3G/4GNot support
  • BluetoothNot support
  • Communication protocolEHome 5.0; SDK; RTSP; ISAPI; Hik-Connect
  • Interface
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • IO input2
  • IO output1
  • Power interface2-pin
  • TAMPER1
  • USB1
  • TF card-
  • SIM card-
  • PSAM cardReserved
  • Capacity
  • Card capacity50,000
  • Face capacity50,000
  • Fingerprint capacityNot support
  • Event capacity50,000
  • Authentication
  • Card typeMifare 1 card;EM card
  • Card reading frequency125KHz; 13.56MHz
  • Card reading distance0 to 5 cm
  • Card reading duration< 1 s
  • Face recognition duration< 0.2 s
  • Face recognition accuracy rate≥99%
  • Face recognition distance0.3 to 3 m
  • Fingerprint recognition durationNot Support
  • Fingerprint False Acceptance Rate (FAR)Not Support
  • Fingerprint False Rejection Rate (FRR)Not Support
  • Function
  • QR code recognitionSupport
  • Multiple faces detectionNot Support
  • Face anti-spoofingSupport
  • Live viewSupport
  • Two-way audioTwo-way audio with indoor station and master station
  • AdvertisementSupport
  • DoorbellSupport
  • Audio promptSupport
  • M1 card encryptionSupport
  • CPU card encryptionNot support
  • Anti-passbackSupport
  • First person inSupport
  • Multi-factor authenticationSupport
  • Time synchronizationSupport
  • General
  • buttonTouch screen
  • Supplement lightVisual and Infrared
  • Indicator-
  • Power supply method12 VDC Power Adapter
  • Power supply12 VDC, 3 A
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions185.8 × 103.36 × 20.7mm (7.31'' × 4.07'' × 0.81'' )
  • Application environmentIndoor
  • Protective level-
  • Weight-
  • InstallationSurface mounting
  • Approval-
