See in the dark with varied imaging technologies
The need for crisp and clear video images in low-light environments always exists. The data confirms it: when committing crimes like burglary and vehicle theft, criminals definitely prefer to hide under the cover of darkness[1]. So to both prevent and tackle crime, it’s vital to have security cameras that can record quality, discernible footage in a variety of light conditions, especially in near-total darkness.
For years, improvements in sensor technology and algorithms to enhance the image have helped deliver better surveillance in low-light conditions. Besides IR illumination, other availabilities include the addition of visible light in the vicinity of the field of view, the use of image intensifiers, low-light lenses, and thermal cameras. In this blog, we talk you through different types of cameras – including some of the latest Hikvision technologies – to help you understand the workarounds for low-light and pitch-black monitoring.
Low light means anything down to 0.002 Lux – that’s the same conditions as a moonless, clear night. Many surveillance cameras built today for low-light performance can deliver usable, high-quality images by applying better optics and advanced sensors. To put it simply, the lens used thereby gets as much light as possible onto the image sensor. In this way, Hikvision has two options.
The first is the Hikvision ColorVu cameras, which is ideal for monitoring at a closer range. With an F1.0 super aperture and an advanced sensor, these intelligent eyes pull in four times the light of a conventional camera, for daylight-like color images in low-light conditions. Should light levels fall to zero, the built-in warm supplemental lighting ensures the camera can still capture vivid color images within up-to 40 meters range.
Watch a video to see how Hikvision ColorVu helps tell true stories.
If you need low-light security monitoring over larger distances, then Hikvision DarkFighter camera range are ideal. Featuring a large-sized progressive scan CMOS sensor and a DarkEye SLA lens with a super large F0.95 aperture, DarkFighter cameras can deliver excellent HD high color images down to 0.002 Lux.

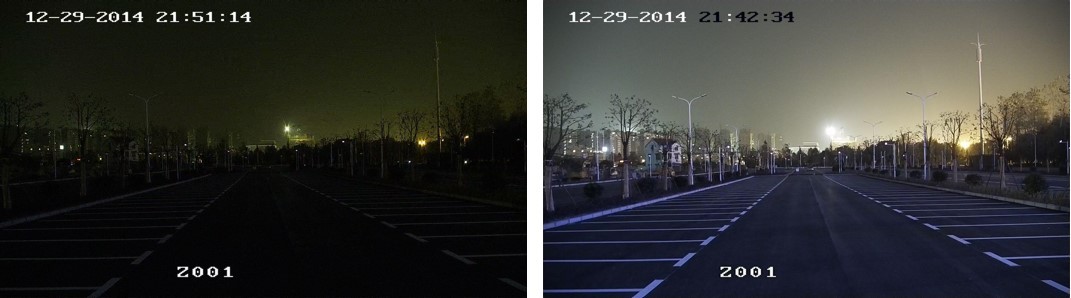

Conventional camera DarkFighter camera
The camera’s increased field of view allows security operatives to pan around and cover a large area of attention, particularly ideal for city streets monitoring, and open environments like ports, squares, parking lots, etc.
When there is zero ambient light, there is one industry-standard option: Infra-Red Cameras.
Security camera manufacturers have created true day/night cameras that add IR illuminators to capture monochrome images when the light level falls to zero lux. Specifically, IR illuminators emit infrared light that is reflected by objects and is further collected by the camera sensor to produce a sharp, black and white image.

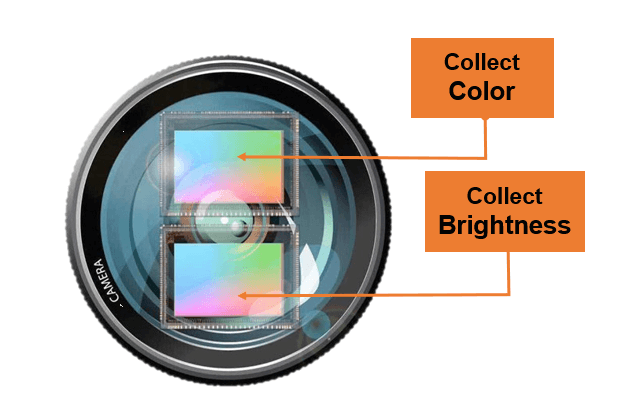

Today, the vast majority of cameras on the market come with built-in IR illuminators. But if you want to take things a step further, it’s worth considering the Hikvision DarkFighterX camera range. Based on the human eye, these cameras use a single lens featuring two sensors: one for IR imaging – ensures that video footage is bright and sharp, and the other for visible light – allows video images to be reproduced in full and vivid color. Both signals work together to create a single, bright, full-color image in light conditions as low as 0.0005 Lux. In zero light, the cameras enable the mixed supplemental lighting to render color images.
Watch a video to look at the DarkFighterX innovations
But what if it’s pitch black, and your view is obscured – by rain, fog or even thick foliage? If you’re trying to see in the most challenging of conditions, there’s one trusty option: Thermal Cameras.

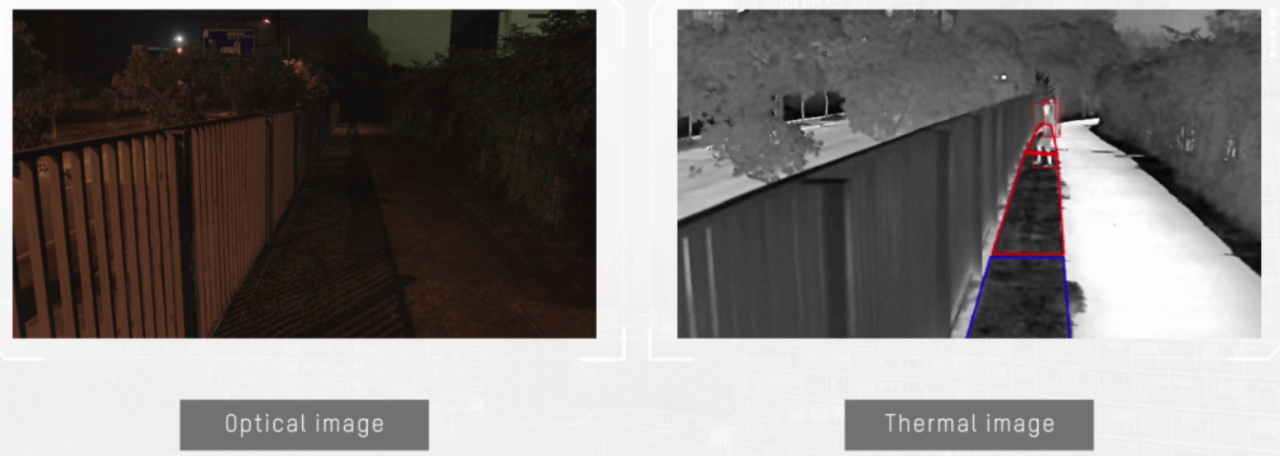

Rather than using light, thermal cameras measure heat – or thermal radiation – to generate images from their field of view. In this way, the rendered image is far less affected by rain, snow, fog, smog or indeed anything that can obscure light.
The way thermal cameras “see” allows them to pick up movements with high accuracy, giving security operatives eyes on objects, vehicles and intruders. Combined with Video Content Analysis (VCA) technology, thermal cameras can offer a range of perimeter security solutions, such as line-crossing detection and intrusion detection. This means they can easily detect intruders moving through bushes or under the cover of complete darkness.
Hikvision offers a range of cutting-edge thermal cameras, including those that deliver the best of both worlds: Bi-Spectrum Cameras, which combine thermal and optical images to create a hybrid image, making it easier to find hidden objects and document unusual events.
To learn more about how Hikvision’s state-of-the-art cameras can help you see in the dark, discover our complete range of low-light and thermal imaging cameras.
