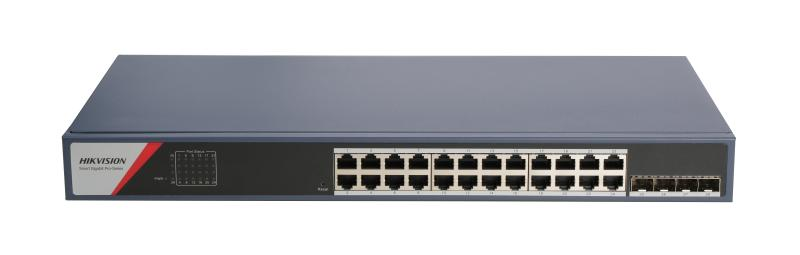

28 Port Aggregation Switch

24 x gigabit RJ45 ports,4 x gigabit fiber optical port
Support DHCP snooping
Support 802.1Q VLAN
Support ACL List
Support STP/ERPS loop prevention, storm control
Support ARP Anti-Spoofing
Support SNMP, QoS
6 kV Surge Protection

View Less

Data Sheet

Available models:

DS-3E1528-SI-24T4F

Specification
Resources
Accessories

Data Sheet

General
ShellMetal material
Net Weight2.3 kg (5.07 lb)
Gross Weight2.82 kg (6.22 lb)
Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.32”× 1.73”× 8.69'')
Operating Temperature0°C to 45°C (0 °F to 113 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply100-240 V,50/60 Hz,0.7 A Max
Installation ModeRack (equipped with mounting ears)
Max. Power Consumption20 W
Power Consumption in Idle5 W
Surge Protection6 kV

Network Parameters
Kikötők 24 × gigabit RJ45 port, and 4 × gigabit fiber optical port
MAC Address Table8 K
Switching Capacity56 Gbps
Packet Forwarding Rate41.66 Mpps
Internal Cache4.1 Mbits

PoE Power Supply
PoE Standard/
PoE Power Pin/
PoE Port/
Max. Port Power/

Software Function
Port IsolationPorts 1 to 28: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP.
VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating.
Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Storm ControlStorm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
ACLPort security strategy. Support up to 64 ACL entries. Support up to 128 configuration rules under all ACL entries.
IPSGIPSG can control the security of port access device. Support port, MAC, IP binding. Support 256 security table entries.

Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety CE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
