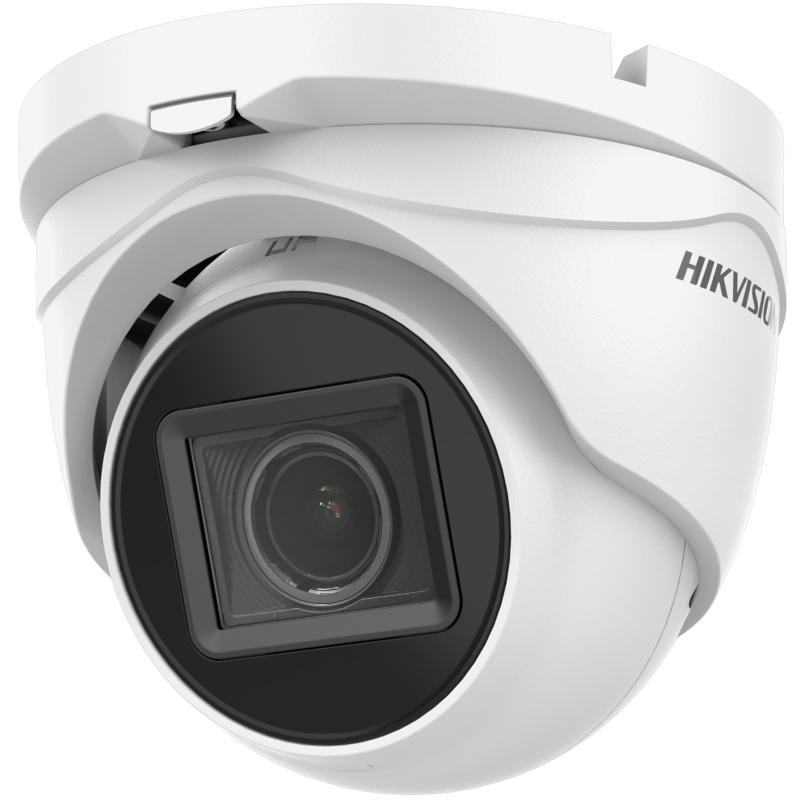

5 MP PoC Motorized Varifocal Turret Camera

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.7 mm to 13.5 mm motorized varifocal lens
  • Up to 40 m IR distance for bright night imaging
  • Water and dust resistant (IP67)

Specification
  • Camera
  • Image Sensor5 MP CMOS
  • Signal SystemPAL/NTSC
  • Resolution2560 (H) × 1944 (V)
  • Frame RateTVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens2.7 mm to 13.5 mm motorized varifocal lens
  • Field of Viewhorizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
  • Lens MountΦ14
  • Day & NightIR Cut Filter
  • WDR (Wide Dynamic Range)Digital WDR
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Image
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Image ModeSTD/HIGH-SAT
  • AGCYes
  • White BalanceAuto/Manual
  • AE (Auto Exposure) ModeBLC;HLC;Global;DWDR
  • Noise Reduction2D DNR
  • LanguageEnglish
  • FunctionSharpness;Brightness;Smart IR
  • Interface
  • Video Output1 HD analog output
  • General
  • IR RangeUp to 40 m
  • Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
  • Power Supply12 VDC±15%/PoC.at *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • ConsumptionMax 8.4 W
  • Protection LevelIP67
  • MaterialMetal
  • CommunicationHIKVISION-C
  • Dimension123.87 mm × 110.24 mm × 134.3 mm (4.87" × 4.34" × 5.29")
  • Approx. 595 g (1.31 lb.)
Specification
Firmware
Applied to:
DS-2CE79H0T-IT3ZE(2.7-13.5mm)(C)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
