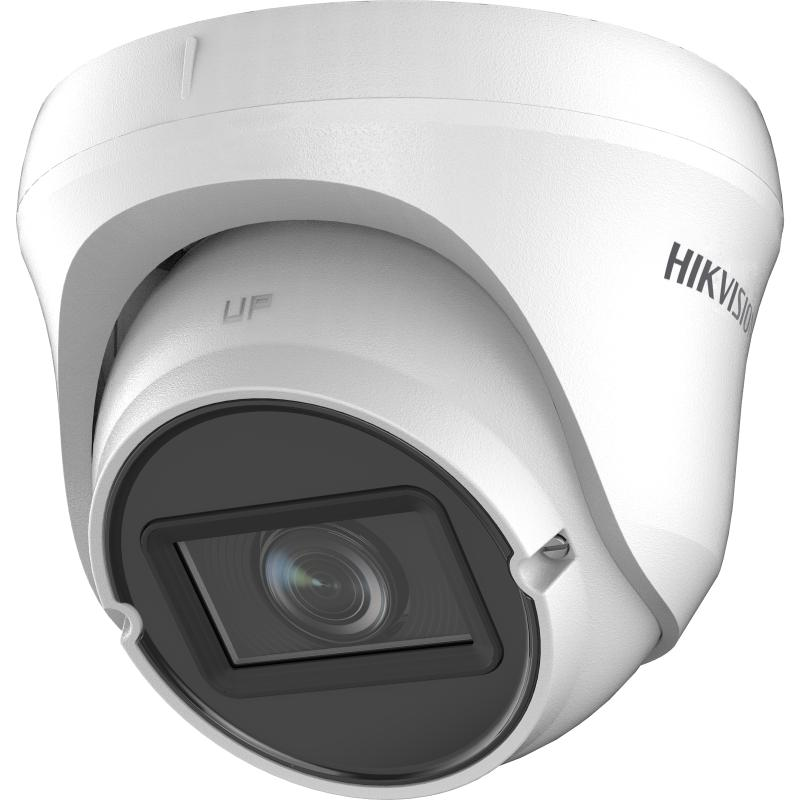

2MP PoC Manual Varifocal Dome Camera

  • 2 MP vari-focal PoC turret camera
  • 2.7 mm to 13.5 mm varifocal lens
  • Up to 40 m IR distance for bright night imaging
  • Water and dust resistant (IP67)
  • Transmits both HD video and power over the same coaxial cable
View Less
View more

Available models:

DS-2CE79D0T-VFIT3E(2.7-13.5mm)(C)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution1920 (H) × 1080 (V)
  • Frame RatePAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps
  • Day & NightICR
  • Min. Illumination0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens MountΦ14
  • Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Lens
  • Lens TypeVarifocal lens, manual adjustment, 2.7 mm to 13.5 mm optional
  • Focal Length & FOVHorizontal FOV: 98° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 35°
  • Illuminator
  • Supplement Light RangeIR: Up to 40 m
  • Image
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Parameters SwitchSTD/HIGH-SAT
  • White BalanceAuto/Manual
  • Image EnhancementDWDR,BLC,HLC,Global
  • Noise Reduction2D DNR
  • LanguageEnglish
  • Image SettingsBrightness, Smart IR, Sharpness, AGC
  • Interface
  • Video Output1 HD analog output
  • General
  • Power12 VDC ± 25%, PoC.at. Max. 5 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • MaterialMain body: Metal, Enclosure: Plastic
  • CommunicationHIKVISION-C
  • DimensionØ120.1 mm × 105.1 mm (Ø4.73" × 4.14")
  • WeightApprox. 460 g (1.01 lb.)
  • Approval
  • ProtectionIP67

Specification

Specification
Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution1920 (H) × 1080 (V)
  • Frame RatePAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps
  • Day & NightICR
  • Min. Illumination0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens MountΦ14
  • Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Lens
  • Lens TypeVarifocal lens, manual adjustment, 2.7 mm to 13.5 mm optional
  • Focal Length & FOVHorizontal FOV: 98° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 35°
Illuminator
  • Supplement Light RangeIR: Up to 40 m
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Parameters SwitchSTD/HIGH-SAT
  • White BalanceAuto/Manual
  • Image EnhancementDWDR,BLC,HLC,Global
  • Noise Reduction2D DNR
  • LanguageEnglish
  • Image SettingsBrightness, Smart IR, Sharpness, AGC
Interface
  • Video Output1 HD analog output
General
  • Power12 VDC ± 25%, PoC.at. Max. 5 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
  • MaterialMain body: Metal, Enclosure: Plastic
  • CommunicationHIKVISION-C
  • DimensionØ120.1 mm × 105.1 mm (Ø4.73" × 4.14")
  • WeightApprox. 460 g (1.01 lb.)
Approval
  • ProtectionIP67

Resources

Technical documents
