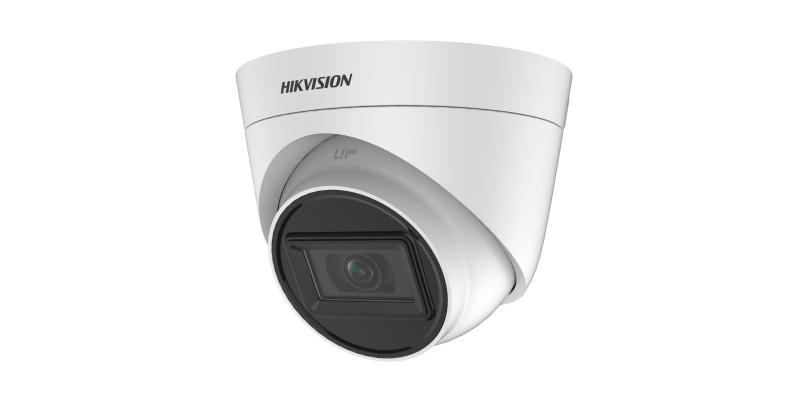

5 MP PoC Fixed Turret Camera

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 40 m IR distance for bright night imaging
  • Water and dust resistant (IP67)

Available models:

DS-2CE78H0T-IT3E(2.8mm)(C)
DS-2CE78H0T-IT3E(3.6mm)(C)

Specification

  • Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°
  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Smart IR
  • Frame Rate5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Enhancement DWDR, BLC, HLC, Global
  • Noise Reduction2D DNR
  • White BalanceAuto/Manual
  • AGCYes
  • Interface
  • Video Output 1 HD analog output
  • General
  • MaterialFront Cover: Plastic Main Body: Metal
  • Dimension91.0 mm × Ø109.8 mm (3.58" × Ø4.32")
  • Approx. 326 g (0.72 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ±25%/PoC.af *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • ConsumptionMax. 3 W
  • IR RangeUp to 40 m
  • Approval
  • ProtectionIP67
