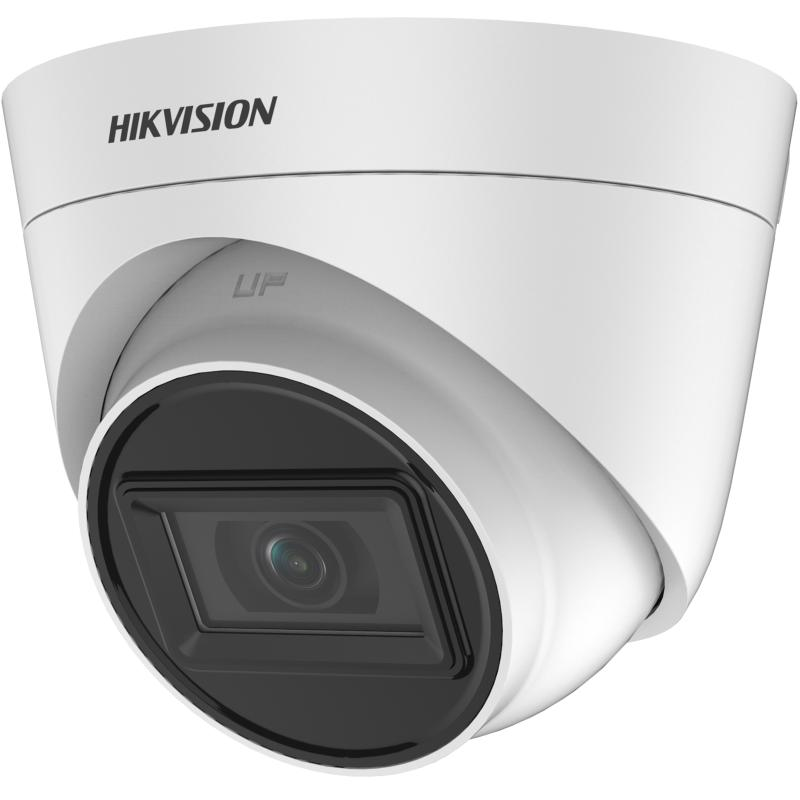

2 MP PoC Fixed Turret Camera

2 MP PoC turret camera
2.8 mm and 3.6 mm fixed focal lens
Up to 40 m IR distance for bright night imaging
Water and dust resistant (IP67)
Transmits both HD video and power over the same coaxial cable

View Less

Data Sheet

Available models:

DS-2CE56D0T-IT3E(2.8mm)(C)

DS-2CE56D0T-IT3E(C)

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Max. Resolution1920 (H) × 1080 (V)
Frame RatePAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps
Day & NightICR
Min. Illumination0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Lens
Lens TypeFixed focal lens, 2.8 mm and 3.6 mm optional
Focal Length & FOV2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°

Illuminator
Supplement Light RangeIR: Up to 40 m

Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image Parameters SwitchSTD/HIGH-SAT
White BalanceAuto/Manual
Image EnhancementDWDR,BLC,HLC,Global
Noise Reduction2D DNR
LanguageEnglish
Image SettingsBrightness, Smart IR, Sharpness, AGC

Interface
Video Output1 HD analog output

General
Power 12 VDC ± 25%, PoC.af. Max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera.
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
MaterialMain body: Metal, Enclosure: Plastic
CommunicationHIKVISION-C
DimensionØ109.8 mm × 91 mm (Ø4.32" × 3.58")
WeightApprox. 310 g (0.68 lb.)

Approval
ProtectionIP67

Camera

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Max. Resolution

1920 (H) × 1080 (V)

Frame Rate

PAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps

Day & Night

ICR

Min. Illumination

0.01 Lux @(F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens Mount

M12

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Lens

Lens Type

Fixed focal lens, 2.8 mm and 3.6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°

Illuminator

Supplement Light Range

IR: Up to 40 m


Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Parameters Switch

STD/HIGH-SAT

White Balance

Auto/Manual

Image Enhancement

DWDR,BLC,HLC,Global

Noise Reduction

2D DNR

Language

English

Image Settings

Brightness, Smart IR, Sharpness, AGC

Interface

Video Output

1 HD analog output

General

Power

12 VDC ± 25%, PoC.af. Max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera.

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

Material

Main body: Metal, Enclosure: Plastic

Communication

HIKVISION-C

Dimension

Ø109.8 mm × 91 mm (Ø4.32" × 3.58")

Weight

Approx. 310 g (0.68 lb.)

Approval

Protection

IP67
