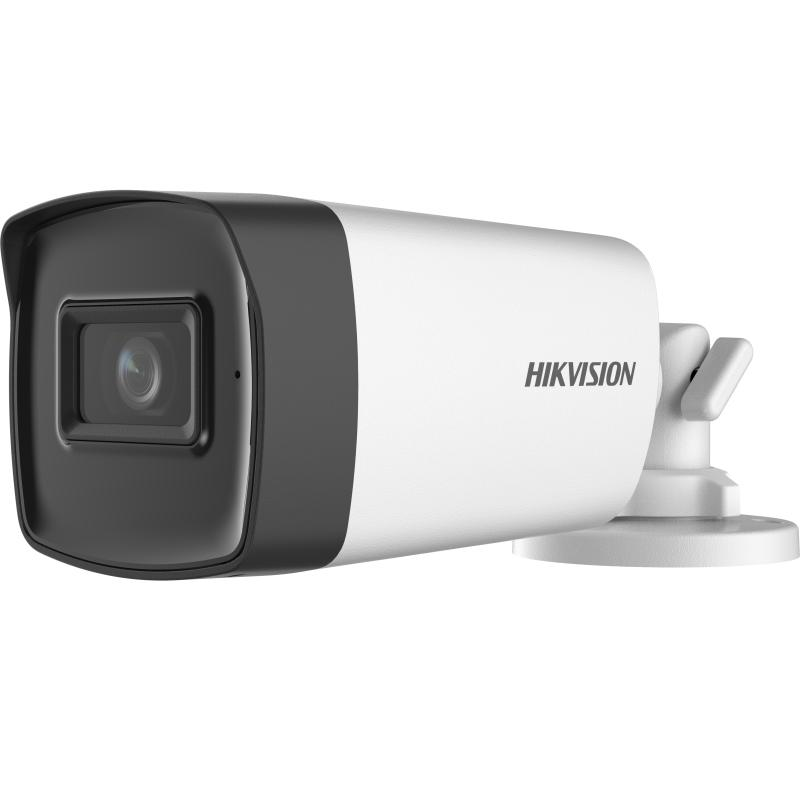

5 MP Audio Fixed Bullet Camera

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Up to 40 m IR distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)
  • High quality audio with audio over coaxial cable, built-in mic

Available models:

DS-2CE17H0T-IT3FS(2.8mm)
DS-2CE17H0T-IT3FS(3.6mm)
DS-2CE17H0T-IT3FS(6mm)

Specification

  • Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 40 m
  • Smart Supplement LightYes
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image Settings Brightness, Mirror, Sharpness, Smart IR
  • Frame RateTVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps CVI: 4 MP @ 30 fps, 4 MP @ 25 fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementDWDR;BLC;HLC;Global
  • Noise Reduction2D DNR
  • White BalanceAuto, Manual
  • AGCYes
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • Built-in MicrophoneYes
  • General
  • MaterialFront cover: Metal, Main body: Plastic
  • Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
  • Approx. 338 g (0.75 lb.)
  • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25%
  • ConsumptionMax. 4.5 W
  • Approval
  • ProtectionIP67
