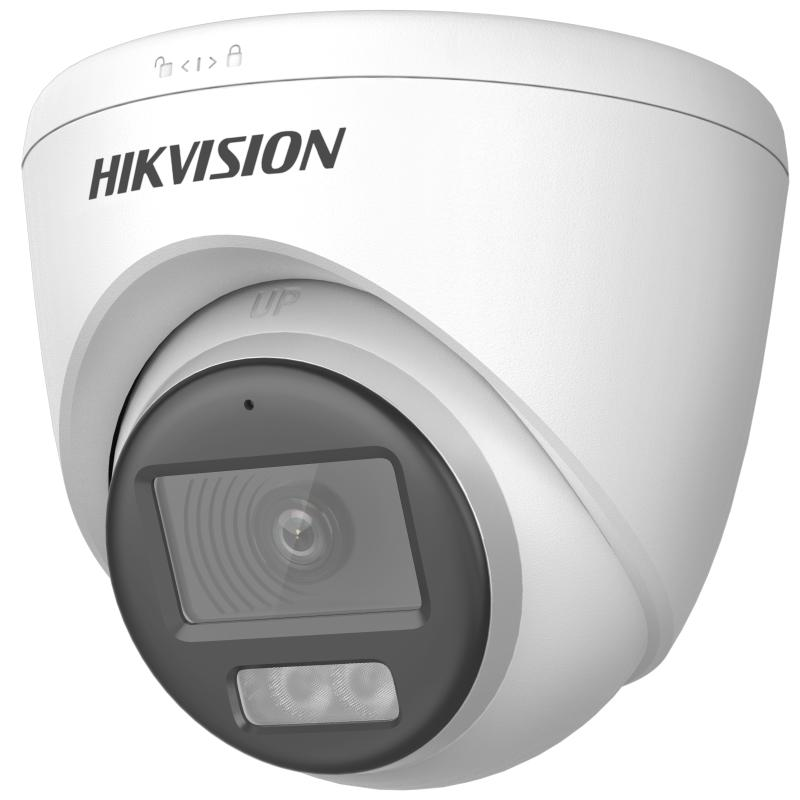

2MP Ultra Low Light POC Fixed Turret Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Up to 40 m IR distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
Water and dust resistant (IP67)

View Less

Available models:

DS-2CE72D8T-IT3SE(2.8mm)(HIK Europe)

DS-2CE72D8T-IT3SE#EU

Specification
Resources
Accessories

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.0005 Lux @ (F1.0, AGC ON)
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal SystemPAL/NTSC
Slow ShutterMax. 16 times

Lens
Lens Type2.8 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeIR: Up to 40 m

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness,Contrast,Sharpness,Anti-banding,AGC
Frame RateTVI: 1080p @30 fps, 1080p @25 fps
Day/Night ModeAuto
Wide Dynamic Range (WDR)≥130 dB
Privacy Mask4 programmable privacy masks
Image EnhancementWDR,BLC,HLC,Global,HLS
Noise Reduction3D DNR
White BalanceAuto,Manual

Interface
Video Output1 HD analog output
Built-in MicrophoneYes

Event
Motion Detection4 programmable motion areas

General
MaterialMain body: Metal, Enclosure: Plastic
DimensionØ109.98 mm × 98.27 mm (Ø4.33" × 3.87")
WeightApprox. 365 g (0.81 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish
Power12 VDC±25%/PoC.at, Max. 5.1 W *You are recommended to use one power adapter to supply the power for one camera.

Approval
ProtectionIP67

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.0005 Lux @ (F1.0, AGC ON)

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

ICR

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Signal System

PAL/NTSC

Slow Shutter

Max. 16 times

Lens

Lens Type

2.8 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°

Lens Mount

M12

Illuminator

Supplement Light Type

Supplement Light Range

IR: Up to 40 m


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness,Contrast,Sharpness,Anti-banding,AGC

Frame Rate

TVI: 1080p @30 fps, 1080p @25 fps

Day/Night Mode

Auto

Wide Dynamic Range (WDR)

≥130 dB

Privacy Mask

4 programmable privacy masks

Image Enhancement

WDR,BLC,HLC,Global,HLS

Noise Reduction

3D DNR

White Balance

Auto,Manual

Interface

Video Output

1 HD analog output

Built-in Microphone

Yes

Event

Motion Detection

4 programmable motion areas

General

Material

Main body: Metal, Enclosure: Plastic

Dimension

Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")

Weight

Approx. 365 g (0.81 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

Communication

HIKVISION-C

Language

English

Power

12 VDC±25%/PoC.at, Max. 5.1 W *You are recommended to use one power adapter to supply the power for one camera.

Approval

Protection

IP67
