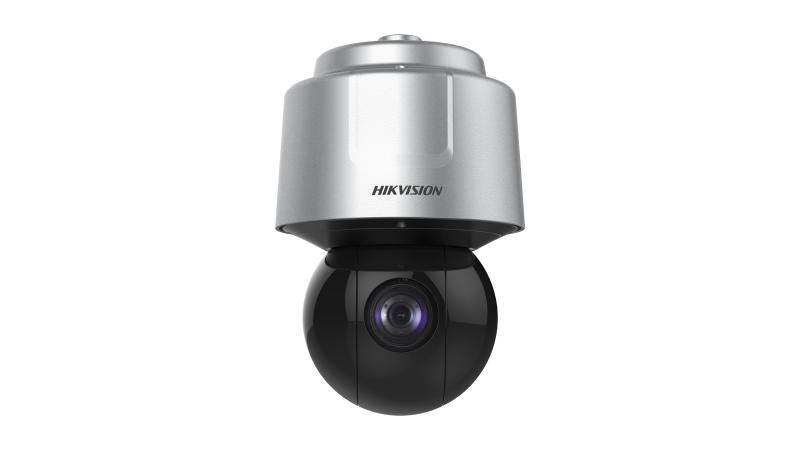

6 Series 2MP 25X DarkFighter Network Speed Dome

  • 1/1.8" Progressive Scan CMOS
  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with DarkFighter technology
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • Supports rapid focus
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Supports face capture to detect, capture, grade, and select faces in motion
  • Supports road traffic to detect vehicles
View Less
View more

Available models:

DS-2DF6A225X-AEL(T5)
Specification
  • Camera
  • Image Sensor 1/1.8" progressive scan CMOS
  • Max. Resolution 1920 × 1080
  • Min. Illumination Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
  • Shutter Speed 1/1 s to 1/30,000 s
  • Day & Night IR cut filter
  • Zoom 25x optical, 16x digital
  • Slow Shutter Yes
  • DORI Detect (25px/m): 2034.5 m Observe (63px/m): 807.3 m Recognize (125px/m): 406.9 m Identify (250px/m): 203.4 m
  • Lens
  • Focal Length 5.9 mm to 147.5 mm
  • FOV Horizontal field of view: 59.8° to 3.3° (wide-tele), Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele)
  • Focus Semi-auto, manual, auto, rapid focus
  • Aperture Max. F1.5
  • Zoom Speed Approx. 4.8 s
  • PTZ
  • Movement Range (Pan) 360°
  • Movement Range (Tilt) -20° to 90° (auto flip)
  • Pan Speed Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt Speed Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional Pan Yes
  • Presets 300
  • Preset Freezing Yes
  • Patrol Scan 8 patrols, up to 32 presets for each patrol
  • Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
  • Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioning Yes
  • PTZ Status Display Yes
  • Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Power-off Memory Yes
  • Video
  • Main Stream 50 Hz: 25 fps (1920×1080, 1280×960, 1280×720) 60 Hz: 24 fps (1920×1080, 1280×960, 1280×720)
  • Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 16384 Kbps
  • H.264 Type Baseline profile, main profile, high profile
  • H.265 Type Main profile
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Region of Interest (ROI) 8 fixed regions for each stream
  • Audio
  • Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
  • Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
  • Network
  • Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • Simultaneous Live View Up to 20 channels
  • API Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
  • Smooth Streaming Yes
  • User/Host Up to 32 users. 3 levels: Administrator, Operator and User
  • Security User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Network Storage NAS (NFS, SMB/ CIFS), ANR
  • Client iVMS-4200, Hik-Connect, HikCentral
  • Web Browser IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Image
  • Day/Night Switch Day, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR) 140 dB WDR
  • SNR ≥ 52 dB
  • Defog Optical defog
  • Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
  • Image Enhancement BLC, HLC, 3D DNR
  • Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
  • Regional Focus Yes
  • Regional Exposure Yes
  • Interface
  • Video Output 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
  • Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board Storage Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm 7 alarm inputs, 2 alarm outputs
  • RS-485 HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Event
  • Basic Event Motion detection, video tampering alarm, alarm input and output, exception
  • Smart Event Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
  • Linkage Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Smart Tracking Manual tracking, auto-tracking
  • Deep Learning Function
  • Face Capture Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • Road Traffic Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
  • General
  • Power 24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
  • Dimension ⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14")
  • Weight Approx. 6 kg (13.23 lb.)
  • Operating Condition Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
  • General Function Mirror, password protection, watermark, IP address filter
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
  • Safety UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
  • Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection Lightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
