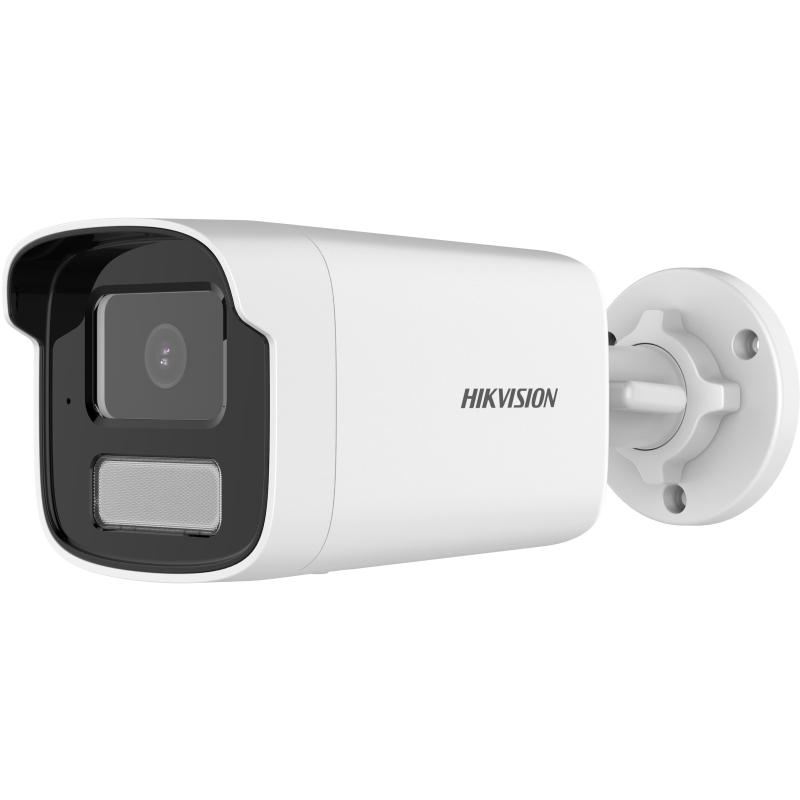

4 MP Smart Hybrid Light Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot) (Optional)

View Less

DS-2CD1T43G2-LIUF

DS-2CD1T43G2-LIU

Data Sheet

Available models:

DS-2CD1T43G2-LIUF(4mm)

Available models:

DS-2CD1T43G2-LIU(4mm)

DS-2CD1T43G2-LIU(F)

Specification
Resources
Accessories

Data Sheet

Kamera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Day & Night IR cut filter

Lens
Lens Type Fixed focal lens, 4 and 6 mm optional
Focal Length & FOV 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° 6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57°
Iris Type Fixed
Aperture F1.6
Lens Mount M12

DORI
DORI 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m 6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m

Illuminator
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
Supplement Light Type IR,White Light
IR Wavelength 850 nm

Video
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
H.265 Type Main Profile
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile,Main Profile,High Profile
Video Bit Rate 32 Kbps to 8 Mbps
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream

Audio
Audio Sampling Rate 8 kHz/16 kHz
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Network
Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Client iVMS-4200,Hik-Connect
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks

Interface
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes
Reset Key -F: Yes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
Material Metal & Plastic
Dimension 83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")
Package Dimension 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight Approx. 580 g (1.3 lb.)
With Package Weight Approx. 635 g (1.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval
Protection IP67: IEC 60529-2013
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
