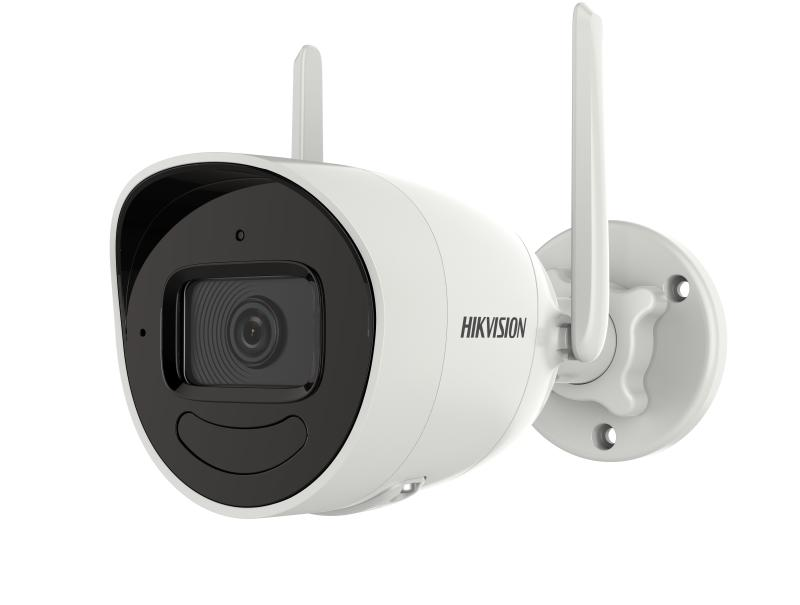

4 MP Outdoor Audio Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Realizing Wi-Fi connection and easy installation
Provides real-time security via built-in two-way audio
EXIR 2.0, advanced infrared technology with long IR distance
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP66)

View Less

DS-2CV2041G2-IDW (W)

DS-2CV2041G2-IDW

Data Sheet

Available models:

DS-2CV2041G2-IDW(2.8mm)(W)

DS-2CV2041G2-IDW(4mm)(W)

Available models:

DS-2CV2041G2-IDW(2.8mm)(E)

DS-2CV2041G2-IDW

Specification
Resources
Accessories

Data Sheet

Kamera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.5 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/25 s to 1/10000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 97°, vertical FOV 53°, diagonal FOV 117° 4 mm, horizontal FOV 82°, vertical FOV 44°, diagonal FOV 100°
Aperture F1.6
Iris Type Fixed
Lens Mount M12
Depth of Field 2.8 mm: 1 m to ∞ 4 mm: 1.5 m to ∞

DORI
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type IR
IR Wavelength 850 nm
Supplement Light Range Up to 30 m
Smart Supplement Light Yes

Video
Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (768 x 432, 512 × 288) 60 Hz: 30 fps (768 x 432, 512 × 288)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 256 Kbps to 4 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR

Audio
Audio Compression G.711/G.722.1/G.726/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, Bonjour
Simultaneous Live View Up to 4 channels
API NA
Security Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS
User/Host Only one user: administrator
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client Hik-Connect, iVMS-4200
Web Browser NA

Wi-Fi
Transfer Rate 11n: up to 300 Mbps
Wi-Fi Protocol 802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
Frequency Range 2.412 GHz to 2.472 GHz
Channel Bandwidth 20 MHz
Modulation 802.11n: BPSK, QPSK, 16QAM, and 64QAM,802.11b: DBPSK and DQPSK, CCK,802.11g: BPSK, QPSK, 16QAM, and 64QAM
Wireless Range Up to 120 m (The performance varies based on actual environment)
Antenna 2 Antennas

Image Settings Auto
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 80 dB
SNR ≥ 52 dB
Image Enhancement BLC, 3D DNR

Interface
Built-in Microphone Yes
Built-in Speaker Yes
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), exception
Linkage Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture

General
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language English
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat, mirror, password protection
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material Front cover: metal, back cover: plastic
Dimension 175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
Package Dimension 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight Approx. 345 g (0.8 lb.)
With Package Weight Approx. 635 g (1.4 lb.)

Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RF CE-RED (EN 301489-1 V2.1.1(BT or 2.4G)
Safety CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013

Kamera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111° 4 mm, horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°

Aperture

F1.6

Iris Type

Fixed

Lens Mount

M12

Depth of Field

2.8 mm: 1 m to ∞ 4 mm: 1.2 m to ∞

DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type

IR Wavelength

850 nm

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Video

Main Stream

50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Audio

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK

Security

Password protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.

Web Browser

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi

Transfer Rate

11n: up to 300 Mbps

Wi-Fi Protocol

802.11n: OFDM,802.11b: DSSS,802.11g: OFDM

Frequency Range

2.412 GHz to 2.472 GHz

Channel Bandwidth

20/40 MHz

Modulation

802.11n: BPSK, QPSK, 16QAM, and 64QAM,802.11b: DBPSK and DQPSK, CCK,802.11g: BPSK, QPSK, 16QAM, and 64QAM

Wireless Range

Up to 120 m (The performance varies based on actual environment)

Antenna

2 Antennas


Image Settings

saturation, brightness, contrast, sharpness, adjustable by client software or web browser

Day/Night Switch

Auto, Schedule, Day, Night

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Enhancement

BLC, 3D DNR

Interface

Built-in Microphone

Yes

Built-in Speaker

Yes

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection, exception

Linkage

Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture

General

Power

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.

Language

English, Ukrainian

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Material

Base: metal, front cover: metal, back cover: plastic

Dimension

175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")

Package Dimension

260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")

Weight

Approx. 335 g (0.8 lb.)

With Package Weight

Approx. 689 g (1.5 lb.)

Approval

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); MIC (JPN)

Safety

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP66: IEC 60529-2013
