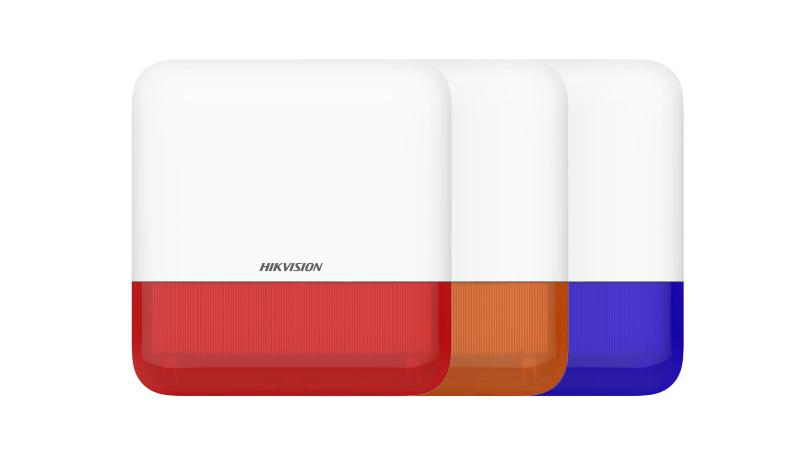

Wireless External Sounder

  • 868 MHz two-way wireless communication
  • 3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
  • AES-128 encryption
  • Front and rear panel tamper-proof
  • 3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
  • Buzzer Decibel: 110 dB
  • Fully remote configurable through APP
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
  • IP65 protective level
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PS1-E-WE
DS-PS1-E-WE
DS-PS1-E-WE
DS-PS1-E-WE
Data Sheet

Specification

  • Electrical characteristics
  • Battery typeBattery (default power supply method) or 12 VDC
  • Power supplyBattery (default power supply method) or 12 VDC
  • Operation humidity10% to 90% (no condensing)
  • Operation temperature-20°C to 60°C (-4 °F to 140 °F)
  • Battery life spanUp to 3 years (standby time)
  • Wireless transmission
  • RF frequency868 MHz
  • RF modulation2GFSK
  • RF distance1.6 km (open area)
  • General
  • IP rateIP65
  • Installation methodWall-mounting
  • Dimension(WxHxD)190 mm × 200 mm × 47. 3mm (7.48" × 7.87" × 1.86")
  • Shell materialPC+ABS
  • Weight606.5 g (21.4 oz)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Electrical characteristics
Battery type
Battery (default power supply method) or 12 VDC
Power supply
Battery (default power supply method) or 12 VDC
Operation humidity
10% to 90% (no condensing)
Operation temperature
-20°C to 60°C (-4 °F to 140 °F)
Battery life span
Up to 3 years (standby time)
Wireless transmission
RF frequency
868 MHz
RF modulation
2GFSK
RF distance
1.6 km (open area)
General
IP rate
IP65
Installation method
Wall-mounting
Dimension(WxHxD)
190 mm × 200 mm × 47. 3mm (7.48" × 7.87" × 1.86")
Shell material
PC+ABS
Weight
606.5 g (21.4 oz)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Electrical characteristics
  • Battery typeBattery (default power supply method) or 12 VDC
  • Power supplyBattery (default power supply method) or 12 VDC
  • Operation humidity10% to 90% (no condensing)
  • Operation temperature-20°C to 60°C (-4 °F to 140 °F)
  • Battery life spanUp to 3 years (standby time)
Wireless transmission
  • RF frequency868 MHz
  • RF modulation2GFSK
  • RF distance1.6 km (open area)
General
  • IP rateIP65
  • Installation methodWall-mounting
  • Dimension(WxHxD)190 mm × 200 mm × 47. 3mm (7.48" × 7.87" × 1.86")
  • Shell materialPC+ABS
  • Weight606.5 g (21.4 oz)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
