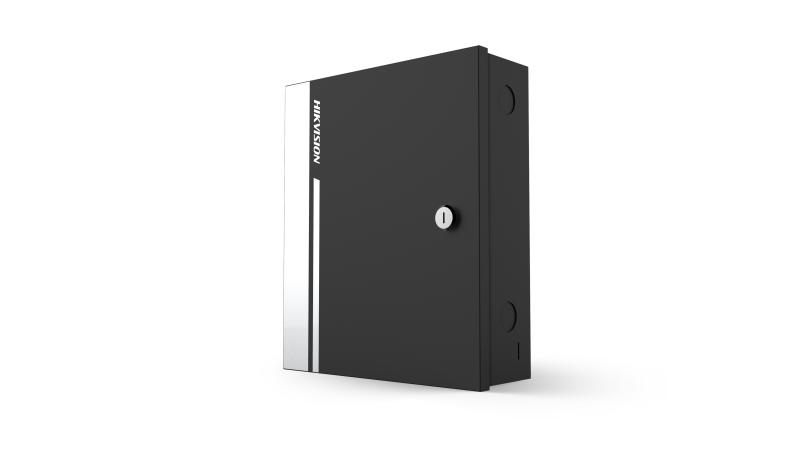

Value Series Card Access Contoller

  • 10,000 cards and 50,000 events storage
  • One door access control
  • Communication via TCP/TP
  • Alarm input/output and alarm event upload
  • Wiegand interface for accessing card reader
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K2801
DS-K2801
Data Sheet

Specification

  • Interface
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm output1
  • WiegandWiegand 26/34
  • General
  • Power consumption≤3.5 w (without load) ≤50 w (with load)
  • Working temperature-20°C to 65°C (-4 °F to 149 °F)
  • Power supply100 ~ 240 VAC
  • Dimensions285 mm × 237 mm × 69 mm (11.22" × 9.33" × 2.72")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Interface
Lock control
1
Exit button
1
Door contact input
1
Alarm output
1
Wiegand
Wiegand 26/34
General
Power consumption
≤3.5 w (without load) ≤50 w (with load)
Working temperature
-20°C to 65°C (-4 °F to 149 °F)
Power supply
100 ~ 240 VAC
Dimensions
285 mm × 237 mm × 69 mm (11.22" × 9.33" × 2.72")
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Interface
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm output1
  • WiegandWiegand 26/34
General
  • Power consumption≤3.5 w (without load) ≤50 w (with load)
  • Working temperature-20°C to 65°C (-4 °F to 149 °F)
  • Power supply100 ~ 240 VAC
  • Dimensions285 mm × 237 mm × 69 mm (11.22" × 9.33" × 2.72")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.0.5_220621
Applied to:
DS-K2801
