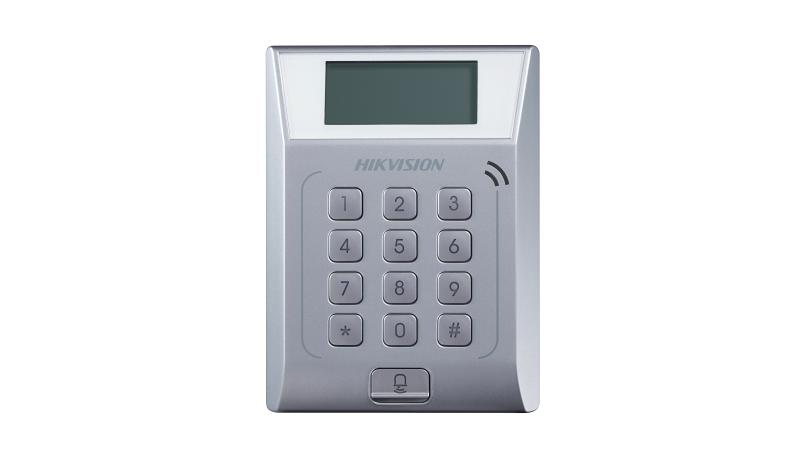

Value Series Network Wire Card Terminal

  • Standalone access control card terminal
  • 3000 card and 10000 event storage
  • Access control function
  • Communication via TCP/TP
  • Offline event alarms upload
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T802E
DS-K1T802E
Data Sheet

Specification

  • System
  • Processor32 bit
  • Display
  • TypeSTN Screen
  • Resolution128 × 64
  • Network
  • Communication protocolTCP/IP
  • Interface
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm outputDoorbell
  • Capacity
  • Card capacity3000
  • Event capacity10,000
  • Authentication
  • Card typeEM card
  • General
  • IndicatorLED Indicator (Communication/Status)
  • Power supplyDC 12V , 0.17 A
  • Working temperature-20°C to 65°C (-4° F to 149° F)
  • Working humidity10% to 90% (No Condensing)
  • Dimensions126.5(L)mm×94.5(W)mm×24(H)mm (4.98" × 3.72" × 0.94")
  • Keypad13 Keys (0-9, , *, #, Doorbell)
  • BuzzerBeeper
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Processor
32 bit
Display
Type
STN Screen
Resolution
128 × 64
Network
Communication protocol
TCP/IP
Interface
Lock control
1
Exit button
1
Door contact input
1
Alarm output
Doorbell
Capacity
Card capacity
3000
Event capacity
10,000
Authentication
Card type
EM card
General
Indicator
LED Indicator (Communication/Status)
Power supply
DC 12V , 0.17 A
Working temperature
-20°C to 65°C (-4° F to 149° F)
Working humidity
10% to 90% (No Condensing)
Dimensions
126.5(L)mm×94.5(W)mm×24(H)mm (4.98" × 3.72" × 0.94")
Keypad
13 Keys (0-9, , *, #, Doorbell)
Buzzer
Beeper
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • Processor32 bit
Display
  • TypeSTN Screen
  • Resolution128 × 64
Network
  • Communication protocolTCP/IP
Interface
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm outputDoorbell
Capacity
  • Card capacity3000
  • Event capacity10,000
Authentication
  • Card typeEM card
General
  • IndicatorLED Indicator (Communication/Status)
  • Power supplyDC 12V , 0.17 A
  • Working temperature-20°C to 65°C (-4° F to 149° F)
  • Working humidity10% to 90% (No Condensing)
  • Dimensions126.5(L)mm×94.5(W)mm×24(H)mm (4.98" × 3.72" × 0.94")
  • Keypad13 Keys (0-9, , *, #, Doorbell)
  • BuzzerBeeper
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.0.5_230410
Access Control Terminal K1T802 V2.0.5_build230410 Release Notes
Applied to:
DS-K1T802E
