DS-2XM6756G0-I(D)(S)(M)(/ND) (C)

EOL

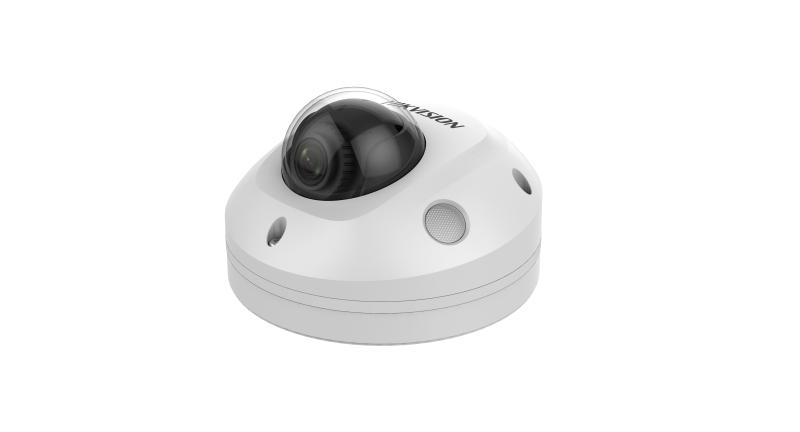

5MP Mobile Dome Camera

  • High quality imaging with 5 MP resolution
  • 2/2.8/4/6/8 mm fixed lens
  • Three streams
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • 4 behavior analysis and object detection
  • Water and dust resistant (IP67) and vandal resistant(IK10)

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2XM6756G0-IS/ND(2.8mm)(C)
DS-2XM6756G0-I(D)(S)(M)(/ND) (C)
EOL
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.9″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON)
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Lens
  • Focal Length & FOV2 mm, horizontal FOV 119.4°, vertical FOV 81.9°, diagonal FOV 142.5° 2.8 mm, horizontal FOV 97.5°, vertical FOV 63.6°, diagonal FOV 119.9° 4 mm, horizontal FOV 73°, vertical FOV 47.8°, diagonal FOV 90.2° 6 mm, horizontal FOV 50.1°, vertical FOV 33.2°, diagonal FOV 61° 8 mm, horizontal FOV 36.4°, vertical FOV 23.9°, diagonal FOV 44.2°
  • Lens MountM12
  • Aperture2 mm, F2.25, 2.8/4/6 mm, F2.0, 8 mm, F1.6,
  • Video
  • Max. Resolution3072 × 2048
  • Main Stream50Hz: 20 fps (3072 × 204
