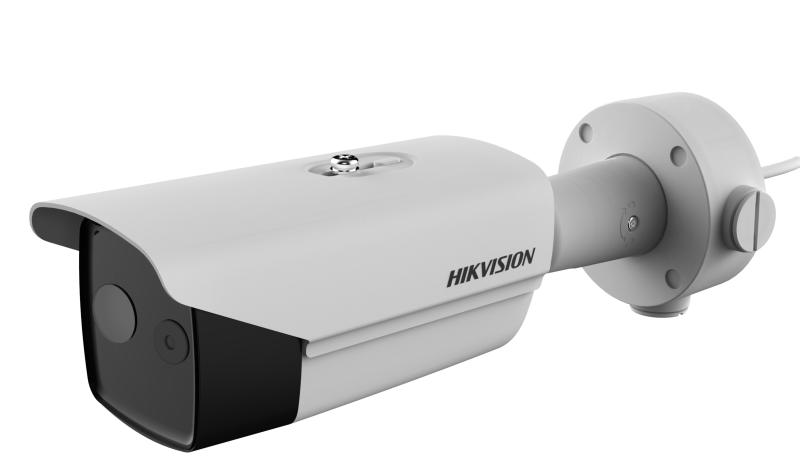

Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera

High sensitivity thermal module with 384 x 288 resolution
NETD is less than 40 mk (@25° C, F#=1.0)
Supports contrast adjustment
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Up to 15 palettes of adjustable color
Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm
High quality optical module with 2 MP resolution
Bi-spectrum image fusion, picture-in-picture preview

View Less

DS-2TD2636T-10

Specification
Resources
Accessories

Thermal Module
Image SensorVOx Uncooled Focal Plane Arrays
Resolution384 × 288
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETDLess than 40 mK (@ 25 °C,F#=1.0)
Focal Length10 mm
Focus ModeAthermalized
IFOV1.70 mrad
ApertureF1.0
Field of View37.7°× 28.7° (H × V)
Min. Focusing Distance1.0 m

Optical Module
Image Sensor1/2.8” Progressive Scan CMOS
Resolution1920 × 1080, 2 MP
Min. IlluminationColor: 0.002 Lux @(F1.5,AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON)
Field of View52.8° × 30.0°(H × V)
Focal Length6 mm
Focus ModeFixed
Shutter Speed1s to 1/100,000s
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night ModeIR cut filter with auto switch
WDRDigital

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel

Illuminator
IR DistanceUp to 40 m
IR Intensity and AngleAutomatically adjusted

Smart Function
VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
Temperature MeasurementSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 550 °C (-4 °F to 1022 °F)
Temperature AccuracyMax (±2 °C, ±2 %)
Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

Video and Audio
Main StreamThermal: 50 fps (1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);Optical: 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub StreamThermal: 50 fps (704 × 576, 384 × 288, 352 × 288);Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Simultaneous Live ViewUp to 20 channels

Interface
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Alarm Input2-ch inputs (0-5vDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
RS4851, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
Analog Video Output1.0 V [p-p]/75 Ω, BNC for thermal channel
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
On-board StorageBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
WiperNo
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
PowerPoE (802.3at, class 4), 42.5 V to 57 V, 0.35 A to 0.47 A;DC 12V, 1.6A
Power Consumption24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.6 A, max. 20W PoE (802.3at, class 4): 42.5 V to 57 V, 0.35 A to 0.47 A
Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 90% or Less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension352.4 mm × 113.5 mm × 114.7 mm (13.9 " × 4.5" × 4.5 ")
WeightApprox. 1.55Kg (3.42lb)
