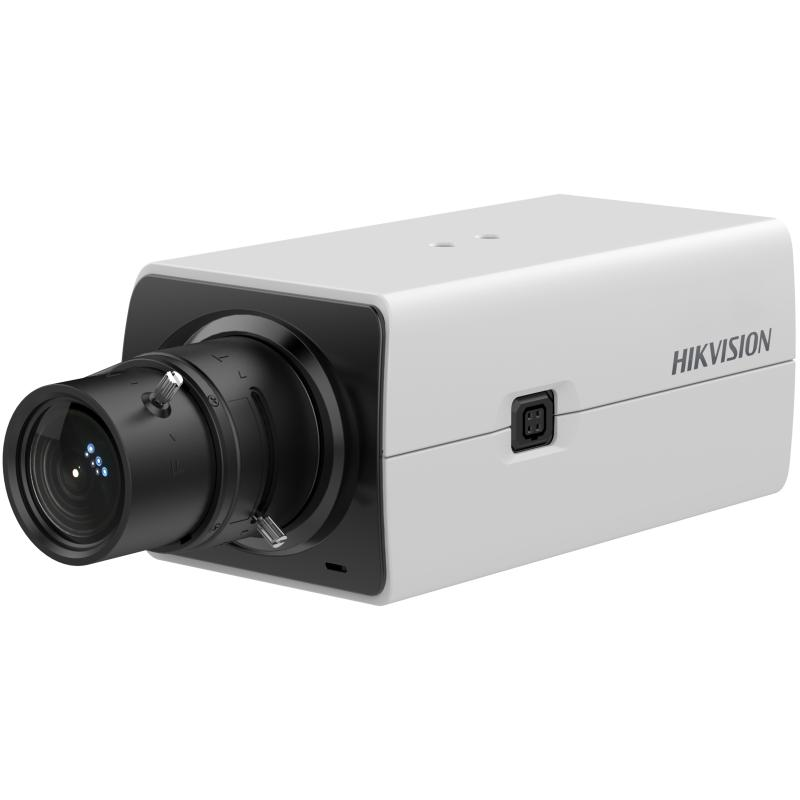

2 MP Powered by DarkFighter Box Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
Specification
  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. Illumination0.005 Lux @ (F1.2, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • DNR3D DNR
  • Lens
  • Auto-IrisDC drive
  • Lens MountCS mount
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • SVCH.265 encoding and H.264 encoding support
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection
  • Region of InterestSupport 1 fixed region for main stream
  • Image
  • Image EnhancementBLC/3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Network
  • Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port, 1 RS232, 1 RS485
  • Audio1 input (line in/mic in, 3.5 mm), 1 output(3.5 mm) (only –AC model supports mic in)
  • AlarmDS-2CD2821G0: 1 input, 1 output (max. DC 12 V, 30 mA) DS-2CD2821G0 (AC24V/DC12V): 1 input, 1 output (max. DC 24 V, 1 A or max. AC 110 V, 500 mA)
  • Video Output1Vp-p composite output (75 Ω/BNC)
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • General
  • Firmware VersionV5.5.53
  • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • ResetYes
  • Startup and Operating Conditions-10 °C to +50 °C (14 °F to +122 °F), humidity 95% or less (non-condensing)
  • Power SupplyDC: 12 V ± 25% AC: 24 V ± 25% (AC24V models support) PoE: 802.3af, class 3 Terminal block
  • Power Consumption and CurrentDC: 12 V, 0.4 A, max: 4.8 W AC: 24 V, 0.2 A, max: 4.8 W (AC24V model supports) PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 6 W
  • MaterialShell: plastic, camera body: metal
  • DimensionsCamera: 68 × 56 × 143 mm (2.7" × 2.2"× 5.6") With package: 172 × 110 × 99 mm (6.8" × 4.3"× 3.9")
  • WeightCamera: 440 g (1 lb.) With package: 600 g (1.3 lb.)
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
Specification
Related Accessories
DS-1299ZJ
Pendant Mount
DS-1292ZJ
Wall mount
