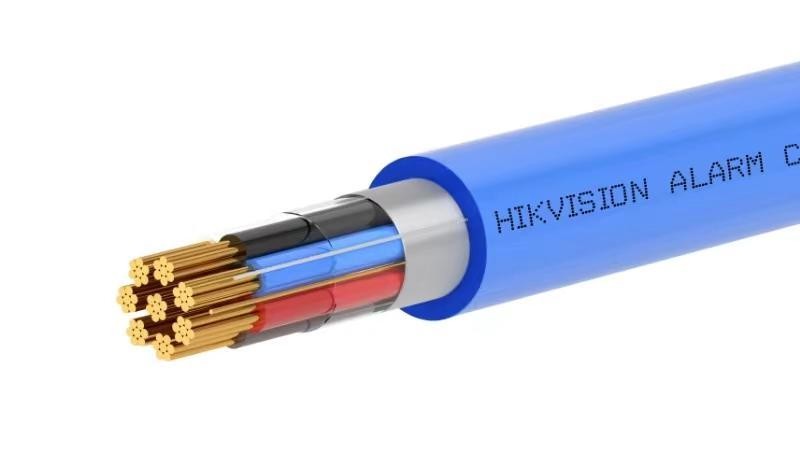

4-Core Sheilded Alarm Cable

  • Suitable for high-rise office buildings, hospitals, entertainment venues hotels, guest houses and other buildings.
  • Used for wiring of fire alarms, smoke detectors, voice communications, anti-theft alarms, and fire circuit protection.
  • Bare stranded copper conductor with less resistance, and better electrical properties and transmission performance.
  • Jacket with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
  • Smooth appearance, reel in box, easy to pull.
  • Flame retardant, compliant with EN50575.
  • Continuous operation at -20 to 70℃.
  • Compliant with RoHS 2.0.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-1AC4APL1
DS-1AC4APL1
Data Sheet

Specification

  • Category
  • Product CategoryAlarm Cable 4×0.22 mm2
  • Fire resistance
  • Fire resistanceCPR Eca
  • Conductor
  • Conductor MaterialBare Stranded Copper (99.95%)
  • Conductor spec7/(0.185± 0.007) mm 25AWG
  • Insulation
  • Insulation MaterialLSZH
  • Insulation Thickness0.2 mm
  • Insulation Diameter1.15± 0.10 mm
  • Shield
  • ShieldDrain wire + Aluminum foil
  • Drain
  • Drain MaterialBare Stranded Copper (99.95%)
  • Conductor Spec7/(0.185± 0.007) mm 25 AWG
  • Rip-cord
  • Rip-cordYes, Nylon
  • Jacket
  • Jacket MaterialLSZH
  • Jacket thickness0.50 mm
  • Jacket Diameter3.90±0.30mm
  • ColorBlue
  • Jacket physical properties
  • Tensile strength≥ 10 Mpa
  • Elongation≥ 150%
  • Cold bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
  • Electrical Characteristics
  • DC resistance≤ 95 Ω/Km(0.22mm²)
  • DC conductor resistance unbalance≤ 4.0%
  • Operating voltage300 V
  • Environmental Specifications
  • Usage scenariosIndoor
  • Operating Temperature-20°C to 70°C
  • Packaging and Weights
  • Packaging TypeReel in box
  • Package dimension328mm×258mm×330mm
  • Packaging quantity1
  • Length(305 ± 1.5) m
  • Weight9.3±1.5kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Category
Product Category
Alarm Cable 4×0.22 mm2
Fire resistance
Fire resistance
CPR Eca
Conductor
Conductor Material
Bare Stranded Copper (99.95%)
Conductor spec
7/(0.185± 0.007) mm 25AWG
Insulation
Insulation Material
LSZH
Insulation Thickness
0.2 mm
Insulation Diameter
1.15± 0.10 mm
Shield
Shield
Drain wire + Aluminum foil
Drain
Drain Material
Bare Stranded Copper (99.95%)
Conductor Spec
7/(0.185± 0.007) mm 25 AWG
Rip-cord
Rip-cord
Yes, Nylon
Jacket
Jacket Material
LSZH
Jacket thickness
0.50 mm
Jacket Diameter
3.90±0.30mm
Color
Blue
Jacket physical properties
Tensile strength
≥ 10 Mpa
Elongation
≥ 150%
Cold bend
-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics
DC resistance
≤ 95 Ω/Km(0.22mm²)
DC conductor resistance unbalance
≤ 4.0%
Operating voltage
300 V
Environmental Specifications
Usage scenarios
Indoor
Operating Temperature
-20°C to 70°C
Packaging and Weights
Packaging Type
Reel in box
Package dimension
328mm×258mm×330mm
Packaging quantity
1
Length
(305 ± 1.5) m
Weight
9.3±1.5kg
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Category
  • Product CategoryAlarm Cable 4×0.22 mm2
Fire resistance
  • Fire resistanceCPR Eca
Conductor
  • Conductor MaterialBare Stranded Copper (99.95%)
  • Conductor spec7/(0.185± 0.007) mm 25AWG
Insulation
  • Insulation MaterialLSZH
  • Insulation Thickness0.2 mm
  • Insulation Diameter1.15± 0.10 mm
Shield
  • ShieldDrain wire + Aluminum foil
Drain
  • Drain MaterialBare Stranded Copper (99.95%)
  • Conductor Spec7/(0.185± 0.007) mm 25 AWG
Rip-cord
  • Rip-cordYes, Nylon
Jacket
  • Jacket MaterialLSZH
  • Jacket thickness0.50 mm
  • Jacket Diameter3.90±0.30mm
  • ColorBlue
Jacket physical properties
  • Tensile strength≥ 10 Mpa
  • Elongation≥ 150%
  • Cold bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics
  • DC resistance≤ 95 Ω/Km(0.22mm²)
  • DC conductor resistance unbalance≤ 4.0%
  • Operating voltage300 V
Environmental Specifications
  • Usage scenariosIndoor
  • Operating Temperature-20°C to 70°C
Packaging and Weights
  • Packaging TypeReel in box
  • Package dimension328mm×258mm×330mm
  • Packaging quantity1
  • Length(305 ± 1.5) m
  • Weight9.3±1.5kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
