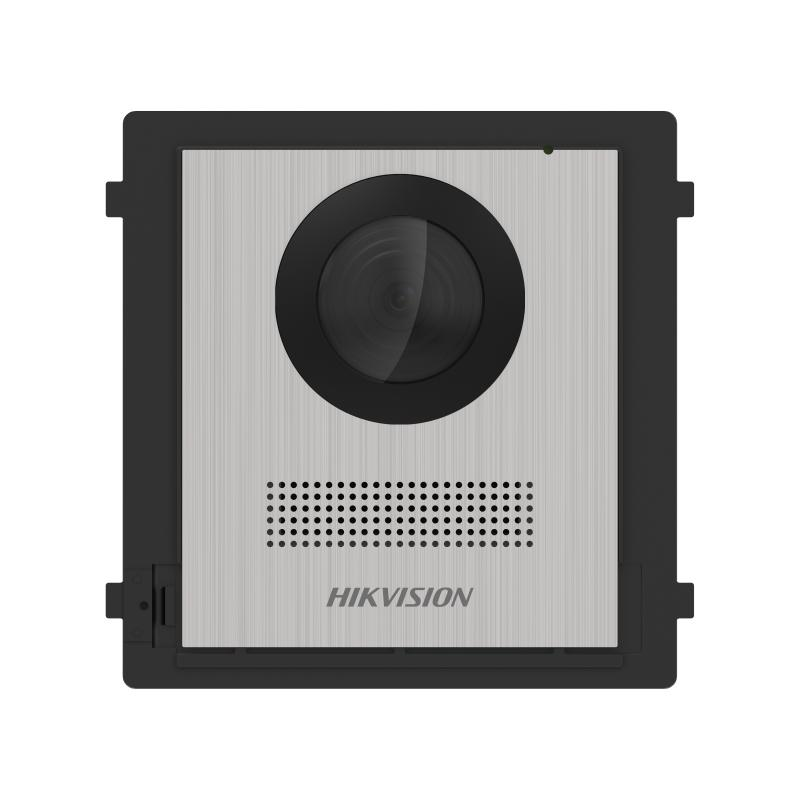

DS-KD8003-IME1(B) NS#EU

KD8 Series Pro Modular Door Station

Modular door station Main unit, needs mounting bracket
2MP HD Camera, Fish eye, IR Supplement
2 lock relays, 4-ch alarm input
Video intercom to indoor station and master station
WEB Configuration
IP65, 12 VDC or standard PoE
Power output for electronic lock, max to 12 V, 500 mA

View Less

Available models:

DS-KD8003-IME1(B)/NS

System parameters
Operating systemEmbedded Linux operation system
ROM32 MB
RAM256 MB
CPUEmbedded Processor

Display parameters
Screen sizeNA
Operation methodNA
TypeNA
ResolutionNA

Video parameters
Supplement lightLow illumination, IR supplement lights
Video standardH.264
Lens1
FOVHorizontal: 146°, Vertical: 82°
WDRSupport
Resolution2 MP

Audio parameters
Audio inputBuilt-in omnidirectional microphone
Audio compression standardG.711 U, G.711 A
Audio outputBuilt-in loudspeaker
Audio compression bitrate64 Kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable

Capacity
Fingerprint capacity/
User capacity2000
Card capacity6000
Face capacityNA
Linked indoor station capacity500
Event capacity/
Sub door station capacity16

Network parameters
Communication protocolTCP/IP, RTSP
Wired network10/100 Mbps self-adaptive Ethernet
Wi-FiNA
BluetoothNA
3G/4GNA

Device interfaces
Alarm input4 (2 exit butttons and 2 door contacts by default)
Network interface1 RJ45
TAMPER1
Exit button2 (2 for lock control)
Door contact input1
RS-4851 (1 for Hikvision's sub module communication)
WiegandNA
TF cardNA
Alarm outputNA
Lock control2 (2 relay)
USBNA
Power interface12 VDC Power Input (max to 12 V, 500 mA)
Two-wire IP interfaceNA

General
Power supply12 VDC/PoE ( IEEE 802.3af)
Working temperature-40° C to 60° C (-40° F to 140° F)
Working humidity10% to 95%
Button0
Protective levelIP65
InstallationSurface mounting & flush mounting
Dimensions(L × W × H)98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
Indicator0
WeightWithout package: 0.410 kg With Package: 0.581 kg
Battery/
Application environmentOutdoor
Power consumption≤ 5 W

Specification

System parameters

Operating system

Embedded Linux operation system

ROM

32 MB

RAM

256 MB

CPU

Embedded Processor

Display parameters

Screen size

Operation method

Type

Resolution

Video parameters

Supplement light

Low illumination, IR supplement lights

Video standard

H.264

Lens

FOV

Horizontal: 146°, Vertical: 82°

WDR

Support

Resolution

2 MP

Audio parameters

Audio input

Built-in omnidirectional microphone

Audio compression standard

G.711 U, G.711 A

Audio output

Built-in loudspeaker

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Capacity

Fingerprint capacity

User capacity

2000

Card capacity

6000

Face capacity

Linked indoor station capacity

500

Event capacity

Sub door station capacity

Network parameters

Communication protocol

TCP/IP, RTSP

Wired network

10/100 Mbps self-adaptive Ethernet

Wi-Fi

Bluetooth

3G/4G

Device interfaces

Alarm input

4 (2 exit butttons and 2 door contacts by default)

Network interface

1 RJ45

TAMPER

Exit button

2 (2 for lock control)

Door contact input

RS-485

1 (1 for Hikvision's sub module communication)

Wiegand

TF card

Alarm output

Lock control

2 (2 relay)

USB

Power interface

12 VDC Power Input (max to 12 V, 500 mA)

Two-wire IP interface

General

Power supply

12 VDC/PoE ( IEEE 802.3af)

Working temperature

-40° C to 60° C (-40° F to 140° F)

Working humidity

10% to 95%

Button

Protective level

IP65

Installation

Surface mounting & flush mounting

Dimensions(L × W × H)

98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")

Language

English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak

Indicator

Weight

Without package: 0.410 kg With Package: 0.581 kg

Battery

Application environment

Outdoor

Power consumption

≤ 5 W
