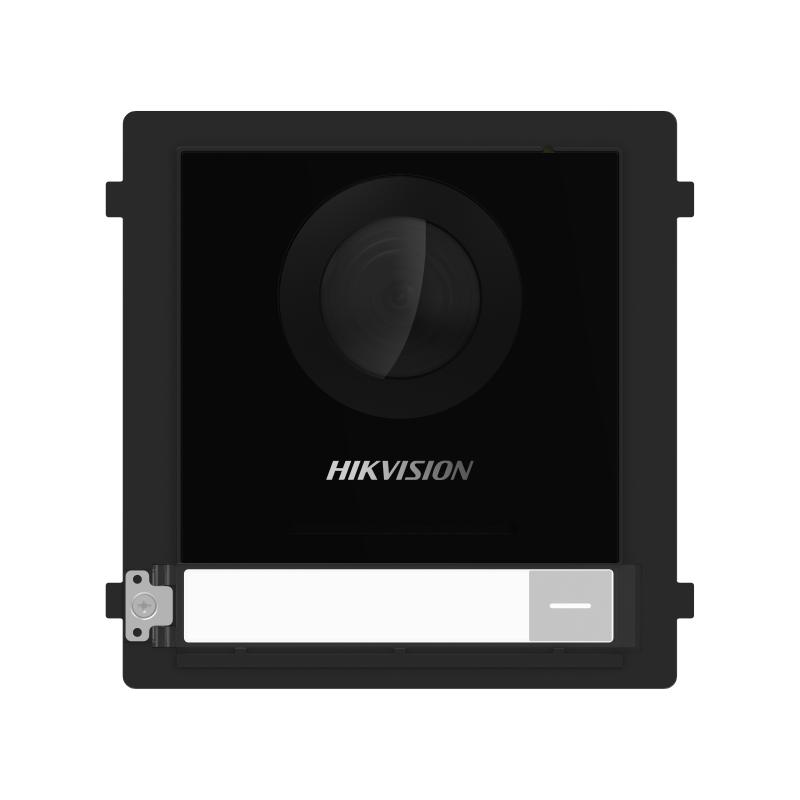

Two wire main unit

  • Modular door station Main unit, needs mounting bracket
  • 2MP HD Camera, Fish eye, IR Supplement
  • 1 Call physical Button, 2 lock relays, 4-ch alarm input
  • Video intercom to indoor station and master station
  • WEB Configuration
  • Power output for electronic lock, max to 12 VDC, 500 mA
View Less
View more

Available models:

DS-KD8003Y-IME2
DS-KD8003Y-IME2#EU

Specification

  • System parameters
  • Operating systemEmbedded Linux operation system
  • ROM32 MB
  • RAM256 MB
  • CPUEmbedded Processor
  • Display parameters
  • Screen sizeNA
  • Operation methodNA
  • TypeNA
  • ResolutionNA
  • Video parameters
  • Supplement lightLow illumination, IR supplement lights
  • Video standardH.264
  • Lens1
  • FOVHorizontal: 146°, Vertical: 82°
  • WDRSupport
  • Resolution2 MP
  • Audio parameters
  • Audio compression standardG.711 U, G.711 A
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Capacity
  • Fingerprint capacity/
  • User capacity2000
  • Face capacityNA
  • Linked indoor station capacity500
  • Event capacity/
  • Sub door station capacity16
  • Network parameters
  • Communication protocolNA
  • Wired networkNA
  • Wi-FiNA
  • BluetoothNA
  • 3G/4GNA
  • Device interfaces
  • Alarm input4 (2 exit butttons and 2 door contacts by default)
  • Network interfaceNA
  • TAMPER1
  • Exit button2 (2 for lock control)
  • Door contact input2
  • RS-4851 (1 for Hikvision's sub module communication)
  • WiegandNA
  • TF cardNA
  • Alarm outputNA
  • Lock control2 (2 relay, max to 30 VDC, 2 A)
  • USBNA
  • Power interface12VDC power output(12 V, 500 mA Max.)
  • Two-wire IP interface1
  • General
  • Button1
  • InstallationSurface mounting & flush mounting
  • Indicator0
  • Weight373.5 g
  • Protective levelIP65
  • Working temperature-40° C to 60° C (-22° F to 140° F)
  • Working humidity10% to 90%
  • Dimensions100 mm × 98 mm × 42 mm
  • Battery/
  • Power supplyPowered by KAD704Y or KAD706Y series distributor
  • Application environmentOutdoor
  • Power consumption≤ 4 W
  • LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak

Specification

Specification
System parameters
  • Operating systemEmbedded Linux operation system
  • ROM32 MB
  • RAM256 MB
  • CPUEmbedded Processor
Display parameters
  • Screen sizeNA
  • Operation methodNA
  • TypeNA
  • ResolutionNA
Video parameters
  • Supplement lightLow illumination, IR supplement lights
  • Video standardH.264
  • Lens1
  • FOVHorizontal: 146°, Vertical: 82°
  • WDRSupport
  • Resolution2 MP
Audio parameters
  • Audio compression standardG.711 U, G.711 A
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
Capacity
  • Fingerprint capacity/
  • User capacity2000
  • Face capacityNA
  • Linked indoor station capacity500
  • Event capacity/
  • Sub door station capacity16
Network parameters
  • Communication protocolNA
  • Wired networkNA
  • Wi-FiNA
  • BluetoothNA
  • 3G/4GNA
Device interfaces
  • Alarm input4 (2 exit butttons and 2 door contacts by default)
  • Network interfaceNA
  • TAMPER1
  • Exit button2 (2 for lock control)
  • Door contact input2
  • RS-4851 (1 for Hikvision's sub module communication)
  • WiegandNA
  • TF cardNA
  • Alarm outputNA
  • Lock control2 (2 relay, max to 30 VDC, 2 A)
  • USBNA
  • Power interface12VDC power output(12 V, 500 mA Max.)
  • Two-wire IP interface1
General
  • Button1
  • InstallationSurface mounting & flush mounting
  • Indicator0
  • Weight373.5 g
  • Protective levelIP65
  • Working temperature-40° C to 60° C (-22° F to 140° F)
  • Working humidity10% to 90%
  • Dimensions100 mm × 98 mm × 42 mm
  • Battery/
  • Power supplyPowered by KAD704Y or KAD706Y series distributor
  • Application environmentOutdoor
  • Power consumption≤ 4 W
  • LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Applied to:
DS-KD8003Y-IME2
