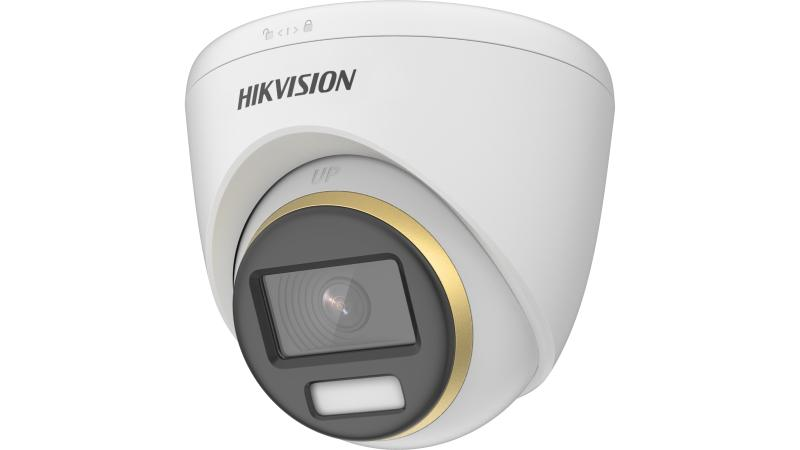

4K ColorVu PoC Fixed Turret Camera

  • High quality imaging with 8 MP, 3840 × 2160 resolution
  • 24/7 color imaging
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • Water and dust resistant (IP67)
View Less
View more

Available models:

DS-2CE72UF3T-E(2.8mm)

Specification

  • Camera
  • Image Sensor8 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. Illumination0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night24/7 Color Imaging
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
  • Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131° 3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113°
  • Lens MountM16
  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 40 m
  • Image
  • Frame RateTVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps
  • Wide Dynamic Range (WDR)≥130 dB
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Day/Night ModeColor
  • White BalanceAuto/Manual
  • Image EnhancementWDR, BLC, HLC, Global, HLS
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR/2D DNR
  • Image SettingsBrightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC
  • Interface
  • Video Output1 HD analog output
  • AlarmSolid Light Alarm (White Light)
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • LanguageEnglish
  • Operating Condition-40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing)
  • MaterialMain body: Metal, Enclosure: Plastic
  • CommunicationHIKVISION-C
  • DimensionØ109.98 mm × 98.27 mm (4.33" × 3.87")
  • WeightApprox. 350 g (0.77 lb.)
  • Power12 VDC ± 25%/PoC.at, Max. 5.1 W *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • Approval
  • ProtectionIP67

Specification

Specification
Camera
  • Image Sensor8 MP CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. Illumination0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & Night24/7 Color Imaging
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131° 3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113°
  • Lens MountM16
Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 40 m
  • Frame RateTVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps
  • Wide Dynamic Range (WDR)≥130 dB
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Day/Night ModeColor
  • White BalanceAuto/Manual
  • Image EnhancementWDR, BLC, HLC, Global, HLS
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR/2D DNR
  • Image SettingsBrightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC
Interface
  • Video Output1 HD analog output
  • AlarmSolid Light Alarm (White Light)
Event
  • Motion Detection4 programmable motion areas
General
  • LanguageEnglish
  • Operating Condition-40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing)
  • MaterialMain body: Metal, Enclosure: Plastic
  • CommunicationHIKVISION-C
  • DimensionØ109.98 mm × 98.27 mm (4.33" × 3.87")
  • WeightApprox. 350 g (0.77 lb.)
  • Power12 VDC ± 25%/PoC.at, Max. 5.1 W *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
Approval
  • ProtectionIP67
