DS-2TD4167T-9/W

EOL

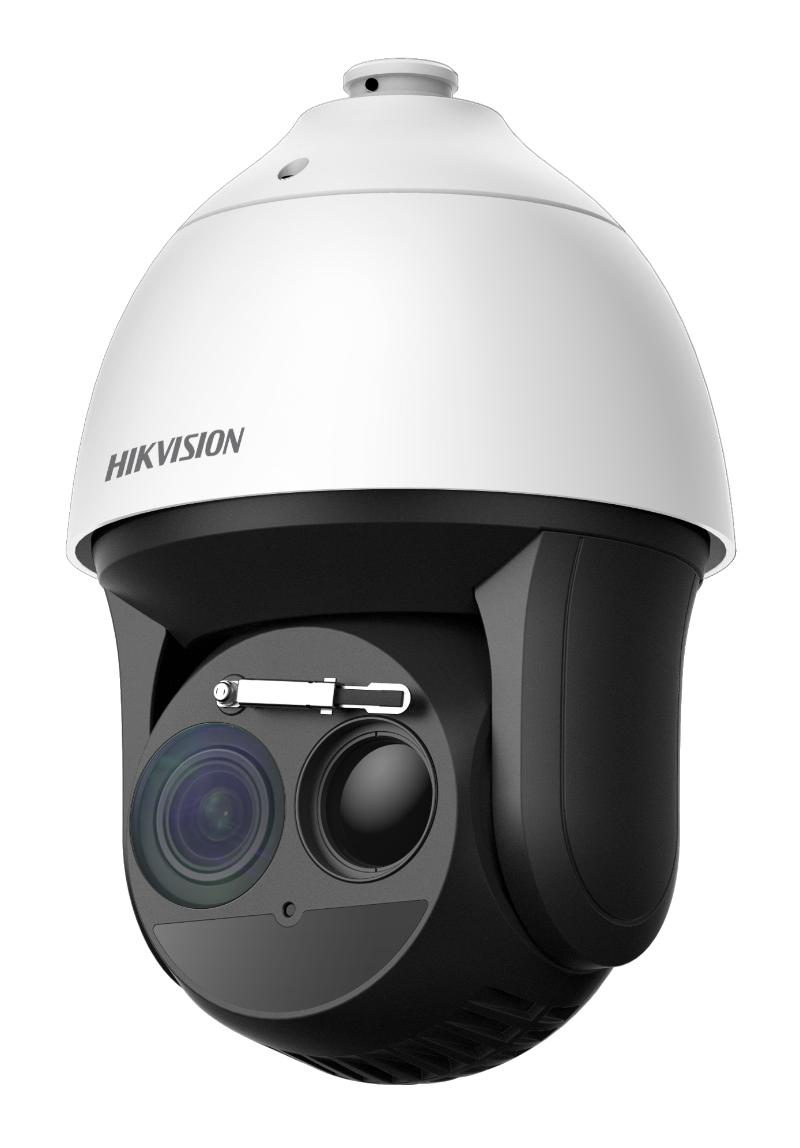

Thermographic Thermal & Optical Bi-spectrum Network Speed Dome

Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance and exit
Temperature exception alarm for fire prevention
Fire detection algorithm
640 × 512 (the resolution of output image is 1920 × 1080) resolution 17 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.1)
Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
High quality detector with 10 years guarantee
Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
Smart tracking linkage: thermal view and optical view
Thermal channel supports EIS, conflicted with intelligent function
Smoke detection for fire prevention

View Less

View more

Available models:

DS-2TD4167T-9/W

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution640 × 512 (the resolution of output image is 1920 × 1080)
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETD≤ 35 mK (@25° C,F# = 1.0)
Focal Length9 mm
Focus ModeAthermalized
IFOV1.89 mrad
ApertureF1.0
Field of View 72.0 ° x56.1 °(H × V)
Min. Focusing Distance1 m
Digital Zoom×2, ×4, ×8

Optical Module
Image Sensor1/1.8" Progressive Scan CMOS
Resolution2688 × 1520, 4 MP
Min. IlluminationColor: 0.005 Lux @ (F1.3，AGC ON), B/W: 0.001 Lux @ (F1.3，AGC ON)
Field of View56.6 ° × 33.7 °(H × V) to 1.8 ° × 1.0 ° (H × V)
Focal Length6-240 mm, 40x
Aperture (Range)F1.3-F4.6
Focus ModeAuto/Semi-auto/Manual
Digital Zoom×2, ×4, ×8, ×16
Shutter Speed1 s to 1/30,000 s
WDR120 dB
Optical DefogYes

Image Effect
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationSupported in white hot and black hot mode

PTZ
Movement RangePan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
Pan SpeedConfigurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
Tilt SpeedConfigurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
Proportional ZoomYes
Presets300 in total, 273 are configurable.
Patrol Scan8; Up to 32 Presets Per Patrol
Pattern Scan4; More Than 10 Minutes Per Pattern
Power Off MemoryYes
ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusTurn On/Turn Off
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Illuminator
IR DistanceUp to 200 m
IR Intensity and AngleAutomatically adjusted

Smart Function
VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range- 20° C to 550° C (-4° F to 1022° F)
Temperature AccuracyMax (± 2° C, ± 2%)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main StreamOptical channel 50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)
Sub-streamOptical channel 50 Hz:25 fps (704 × 576, 352 × 288) 60 Hz:30 fps (704 × 576, 352 × 288) Thermal channel 50 fps (704 × 576, 640 × 512, 384 × 288)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Audio CompressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

Interface
Alarm Input7-ch inputs (0-5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface
Analog Video Output1.0 V [p-p]/75 Ω, BNC for thermal channel

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Alimentation24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%
Power Consumption65W Max
Working Temperature/Humidity From - 40° C to 65° C (- 40° F to 149° F); 95% or less
WiperYes
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension266.6 mm × 410 mm × 198.6 mm (10.5" × 16.15" × 7.82")
WeightApprox. 9 kg (19.84 lb)

Specification

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

640 × 512 (the resolution of output image is 1920 × 1080)

Pixel Interval

17 μm

Response Waveband

8 μm to 14 μm

NETD

≤ 35 mK (@25° C,F# = 1.0)

Focal Length

9 mm

Focus Mode

Athermalized

IFOV

1.89 mrad

Aperture

F1.0

Field of View

72.0 ° x56.1 °(H × V)

Min. Focusing Distance

1 m

Digital Zoom

×2, ×4, ×8

Optical Module

Image Sensor

1/1.8" Progressive Scan CMOS

Resolution

2688 × 1520, 4 MP

Min. Illumination

Color: 0.005 Lux @ (F1.3，AGC ON), B/W: 0.001 Lux @ (F1.3，AGC ON)

Field of View

56.6 ° × 33.7 °(H × V) to 1.8 ° × 1.0 ° (H × V)

Focal Length

6-240 mm, 40x

Aperture (Range)

F1.3-F4.6

Focus Mode

Auto/Semi-auto/Manual

Digital Zoom

×2, ×4, ×8, ×16

Shutter Speed

1 s to 1/30,000 s

WDR

120 dB

Optical Defog

Yes

Image Effect

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Supported in white hot and black hot mode

PTZ

Movement Range

Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)

Pan Speed

Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s

Tilt Speed

Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s

Proportional Zoom

Yes

Presets

300 in total, 273 are configurable.
