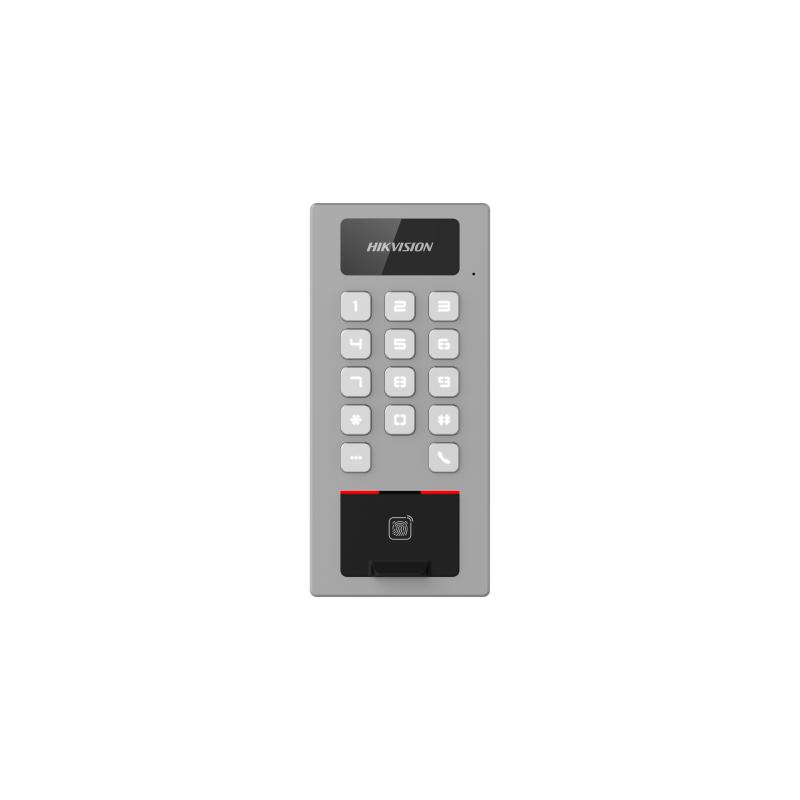

Access Control Terminal

  • Manage access control and intercom functions in one device
  • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
  • Supports multiple authentication methods (card, fingerprint, PIN, etc.)
  • Remote control via the Hik-Connect mobile app
  • Connects to external access controller via Wiegand protocol
  • Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
  • RS-485 communication for connecting external card reader and calling elevator
  • Supports AP mode
  • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
  • Supports up to 256 GB SD card memory
  • Supports PIN settings under platform mode and local mode
  • Setting the priority of wired network and wireless network is available
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T502DBFWX
DS-K1T502DBFWX
Data Sheet

Specification

  • System
  • Operating systemLinux
  • Video
  • Video compression standardH.264 and H.265
  • Network
  • Wired network10 M/100 M self-adaptive
  • Wi-FiSupport
  • Interface
  • Network interface1
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm input1
  • Alarm output1
  • TAMPER1
  • RS-4851
  • Wiegand1 (output)
  • SD Card Slot1
  • Capacity
  • Fingerprint capacity10,000
  • Card capacity100,000
  • Event capacity300,000
  • Authentication
  • Fingerprint moduleCapacitive fingerprint recognition
  • Card typeM1 card;DESfire card
  • Card reading distance0 ~ 3 cm
  • General
  • Power supply1 A (12 VDC to 24 VDC)
  • Power consumption≤12 W
  • Working temperature -40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
  • Protective levelIK09, IP65
  • LanguageArabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
  • Function
  • Two-way audioSupport
  • Hik-ConnectSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Operating system
Linux
Video
Video compression standard
H.264 and H.265
Network
Wired network
10 M/100 M self-adaptive
Wi-Fi
Support
Interface
Network interface
1
Lock control
1
Exit button
1
Door contact input
1
Alarm input
1
Alarm output
1
TAMPER
1
RS-485
1
Wiegand
1 (output)
SD Card Slot
1
Capacity
Fingerprint capacity
10,000
Card capacity
100,000
Event capacity
300,000
Authentication
Fingerprint module
Capacitive fingerprint recognition
Card type
M1 card;DESfire card
Card reading distance
0 ~ 3 cm
General
Power supply
1 A (12 VDC to 24 VDC)
Power consumption
≤12 W
Working temperature
-40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
Protective level
IK09, IP65
Language
Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
Function
Two-way audio
Support
Hik-Connect
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • Operating systemLinux
Video
  • Video compression standardH.264 and H.265
Network
  • Wired network10 M/100 M self-adaptive
  • Wi-FiSupport
Interface
  • Network interface1
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm input1
  • Alarm output1
  • TAMPER1
  • RS-4851
  • Wiegand1 (output)
  • SD Card Slot1
Capacity
  • Fingerprint capacity10,000
  • Card capacity100,000
  • Event capacity300,000
Authentication
  • Fingerprint moduleCapacitive fingerprint recognition
  • Card typeM1 card;DESfire card
  • Card reading distance0 ~ 3 cm
General
  • Power supply1 A (12 VDC to 24 VDC)
  • Power consumption≤12 W
  • Working temperature -40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
  • Protective levelIK09, IP65
  • LanguageArabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
Function
  • Two-way audioSupport
  • Hik-ConnectSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.9.1_240909
DS-K1T502 Series Access Control Terminal V1.9.1_build240909 Release Note
Applied to:
DS-K1T502DBFWX
