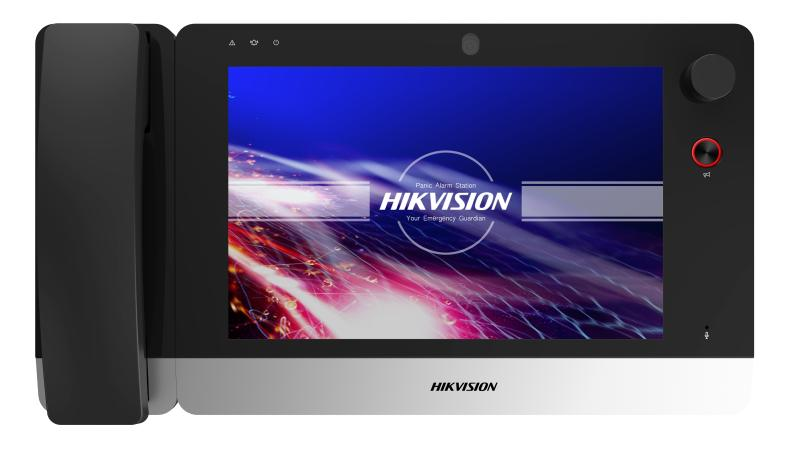

Panic Alarm Master Station

  • 10.1-inch touch screen
  • Real-time alarm information display
  • Supports microphone rod and VGA
  • Supports auto noise suppression and echo cancellation
  • Easy installation with Power over Ethernet (PoE) technology
View Less
View more
Sales Inquiry

Available models:

DS-PEA4H-10
DS-PEA4H-10

Specification

  • Software features
  • User interfaceFlat design
  • Hardware features
  • SD card1, Micro SDXC (≤ 128 GB)
  • USB1, USB 3.0 1, USB 2.0
  • Serial port2, RS-485 half-duplex interface
  • PSTNRJ11, 1 for handset
  • Video interfaceVGA，HDMI
  • Netowrk interface1RJ45,10 M/100 M/1000 M self adaptive
  • Audio interfaceBuilt-in microphone, handset, and mic support
  • Video
  • Resolusion1920*1080
  • Frame ratePAL: 25 FPS, NTSC: 30 FPS
  • Audio
  • IntercomBuilt-in Microphone, Handset、loudspeaker
  • Audio outputBuilt-in loudspeaker, and handset
  • Audio inputBuilt-in microphone, handset, and mic support
  • Audio compression code rate16Kbps;64Kbps
  • Electrical characteristics
  • Power supply12 VDC, PoE (IEEE 802.3 at/af)
  • Operation humidity10％ to 90％
  • Operation temperature-10 ℃ to 55 ℃
  • Power consumption≤15 W
  • Display
  • Display screen10.1 inch colorful TFT LCD, 1280 × 800
  • General
  • Dimension(WxHxD)with handset: 361mm (14.2 inch) × 65mm (2.6 inch) × 197mm (7.8 inch) without handset: 291mm (11.5 inch) × 41mm (1.6 inch) × 197mm (7.8 inch)
  • Weight≤2.5 kg (88.2 oz)
  • Device management
  • Alarm output4
  • Alarm input4
  • Relay output4, relay output
  • CameraCMOS, 2 MP
  • Report method
  • ProtocolTCP/IP, HIK-SIP, and RTSP
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Software features
User interface
Flat design
Hardware features
SD card
1, Micro SDXC (≤ 128 GB)
USB
1, USB 3.0 1, USB 2.0
Serial port
2, RS-485 half-duplex interface
PSTN
RJ11, 1 for handset
Video interface
VGA，HDMI
Netowrk interface
1RJ45,10 M/100 M/1000 M self adaptive
Audio interface
Built-in microphone, handset, and mic support
Video
Resolusion
1920*1080
Frame rate
PAL: 25 FPS, NTSC: 30 FPS
Audio
Intercom
Built-in Microphone, Handset、loudspeaker
Audio output
Built-in loudspeaker, and handset
Audio input
Built-in microphone, handset, and mic support
Audio compression code rate
16Kbps;64Kbps
Electrical characteristics
Power supply
12 VDC, PoE (IEEE 802.3 at/af)
Operation humidity
10％ to 90％
Operation temperature
-10 ℃ to 55 ℃
Power consumption
≤15 W
Display
Display screen
10.1 inch colorful TFT LCD, 1280 × 800
General
Dimension(WxHxD)
with handset: 361mm (14.2 inch) × 65mm (2.6 inch) × 197mm (7.8 inch) without handset: 291mm (11.5 inch) × 41mm (1.6 inch) × 197mm (7.8 inch)
Weight
≤2.5 kg (88.2 oz)
Device management
Alarm output
4
Alarm input
4
Relay output
4, relay output
Camera
CMOS, 2 MP
Report method
Protocol
TCP/IP, HIK-SIP, and RTSP
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Software features
  • User interfaceFlat design
Hardware features
  • SD card1, Micro SDXC (≤ 128 GB)
  • USB1, USB 3.0 1, USB 2.0
  • Serial port2, RS-485 half-duplex interface
  • PSTNRJ11, 1 for handset
  • Video interfaceVGA，HDMI
  • Netowrk interface1RJ45,10 M/100 M/1000 M self adaptive
  • Audio interfaceBuilt-in microphone, handset, and mic support
Video
  • Resolusion1920*1080
  • Frame ratePAL: 25 FPS, NTSC: 30 FPS
Audio
  • IntercomBuilt-in Microphone, Handset、loudspeaker
  • Audio outputBuilt-in loudspeaker, and handset
  • Audio inputBuilt-in microphone, handset, and mic support
  • Audio compression code rate16Kbps;64Kbps
Electrical characteristics
  • Power supply12 VDC, PoE (IEEE 802.3 at/af)
  • Operation humidity10％ to 90％
  • Operation temperature-10 ℃ to 55 ℃
  • Power consumption≤15 W
Display
  • Display screen10.1 inch colorful TFT LCD, 1280 × 800
General
  • Dimension(WxHxD)with handset: 361mm (14.2 inch) × 65mm (2.6 inch) × 197mm (7.8 inch) without handset: 291mm (11.5 inch) × 41mm (1.6 inch) × 197mm (7.8 inch)
  • Weight≤2.5 kg (88.2 oz)
Device management
  • Alarm output4
  • Alarm input4
  • Relay output4, relay output
  • CameraCMOS, 2 MP
Report method
  • ProtocolTCP/IP, HIK-SIP, and RTSP
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
