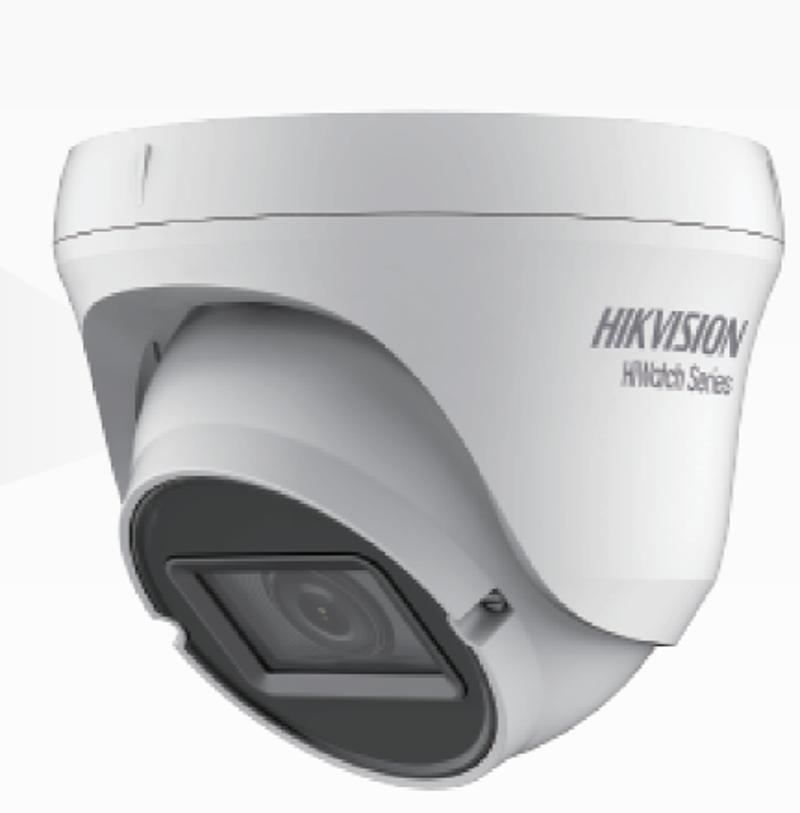

HWT-T320-VF

1080p vari-focal turret camera
EXIR 2.0, advanced infrared technology with 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

View Less

Available models:

HWT-T320-VF(2.8-12mm)(Europe)/C

HWT-T320-VF#EU

Specification
Resources
Accessories

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8mm to 12mm
Focal Length & FOVHorizontal FOV 111.5° to 33.4°
Lens MountΦ14

Illuminator
Supplement Light RangeIR: Up to 40 m
Smart Supplement LightYes

Image SettingsBrightness,Mirror,Sharpness,AGC
Frame RatePAL:1080p@25fps, NTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
MaterialMain body: Metal, Enclosure: Plastic
DimensionΦ 120 mm × 105.06 mm (Φ 4.72" × 4.16")
WeightApprox. 450 g (0.99 lb.)
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
LanguageEnglish
Power Supply12 VDC ± 25%，Max 5W

Approval
ProtectionIP66

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux@(F1.6, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8mm to 12mm

Focal Length & FOV

Horizontal FOV 111.5° to 33.4°

Lens Mount

Φ14

Illuminator

Supplement Light Range

IR: Up to 40 m

Smart Supplement Light

Yes


Image Settings

Brightness,Mirror,Sharpness,AGC

Frame Rate

PAL:1080p@25fps, NTSC: 1080p@30fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC

Noise Reduction

2D DNR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS;1 HD analog output

General

Material

Main body: Metal, Enclosure: Plastic

Dimension

Φ 120 mm × 105.06 mm (Φ 4.72" × 4.16")

Weight

Approx. 450 g (0.99 lb.)

Operating Condition

-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)

Language

English

Power Supply

12 VDC ± 25%，Max 5W

Approval

Protection

IP66
