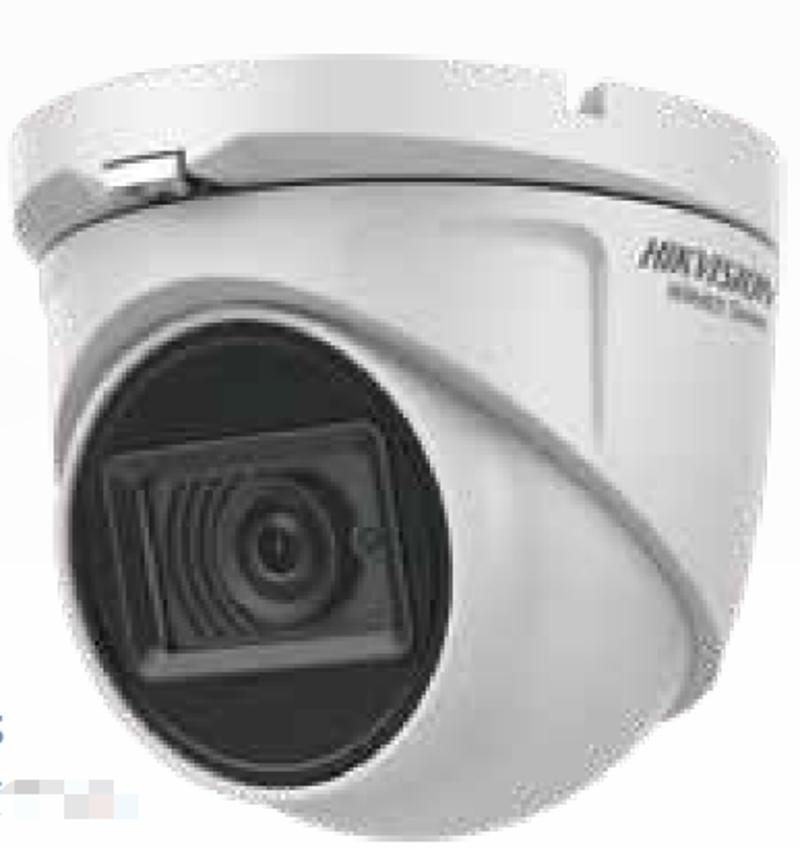

HWT-T120-MS

1080p turret camera
Smart IR, up to 20 m IR distanceWater resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
With built-in microphone, enhancing your safety with video and audio together

View Less

Available models:

HWT-T120-MS(2.8mm)(HIK SPAIN)

HWT-T120-MS(3.6mm)(HIK SPAIN)

HWT-T120-MS

Specification
Resources
Accessories

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens TypeFixed focal lens, 2.8 mm optional Varifocal lens, motor-driven lens, 3.6 mm Varifocal lens, manual adjustment, 6 mm
Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12

Illuminator
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness;Sharpness;Mirror;Smart IR;AGC
Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR;BLC;HLC;Global
Noise Reduction2D DNR
White BalanceAuto/Manual

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Built-in MicrophoneYes

General
Power12 VDC ± 25%, max. 3.7 W
MaterialMetal
Dimension82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12")
WeightApprox. 292 g (0.64 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP66

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux@(F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

Fixed focal lens, 2.8 mm optional Varifocal lens, motor-driven lens, 3.6 mm Varifocal lens, manual adjustment, 6 mm

Focal Length & FOV

2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens Mount

M12

Illuminator

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness;Sharpness;Mirror;Smart IR;AGC

Frame Rate

TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR;BLC;HLC;Global

Noise Reduction

2D DNR

White Balance

Auto/Manual

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

Built-in Microphone

Yes

General

Power

12 VDC ± 25%, max. 3.7 W

Material

Metal

Dimension

82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12")

Weight

Approx. 292 g (0.64 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Communication

HIKVISION-C

Language

English

Approval

Protection

IP66
