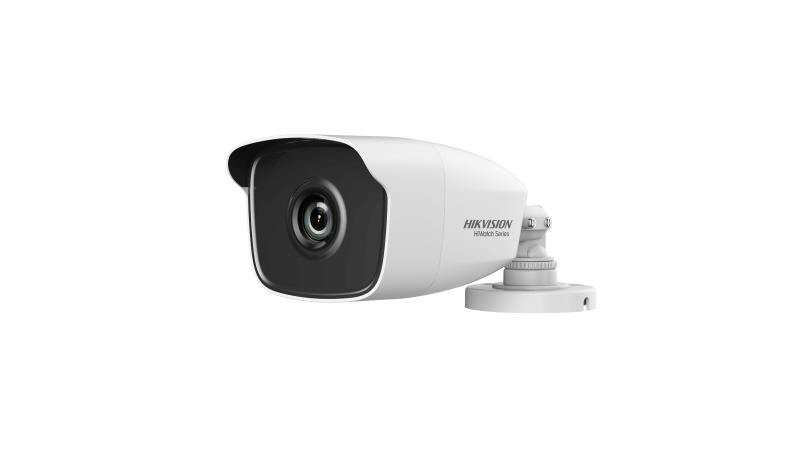

2 MP Fixed Bullet Camera

1080p bullet camera
Smart IR: up to 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS);

View Less

Available models:

HWT-B220-M(2.8mm)(HiWatch STD)

HWT-B220-M(3.6mm)(HiWatch STD)

HWT-B220-M

Specification
Resources
Accessories

Interface
Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS

Menu
AGCHigh/Medium/Low/Off
Day/Night ModeAuto/Color/BW (Black and White)
Backlight CompensationSupport
DWDR (Digital Wide Dynamic Range)Support
LanguageEnglish
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR

Camera
Image Sensor2 MP CMOS image sensor
Signal SystemPAL/NTSC
Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
Resolution1920 (H) × 1080 (V)
Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time1/25 (1/30) s to 1/50,000 s
Lens2.8 mm, 3.6 mm, 6 mm
Horizontal Field of View103° (2.8 mm), 80.7° (3.6 mm), 50.1° (6 mm)
Lens MountM12
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

General
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply12 VDC ±15%
Power ConsumptionMax. 4 W
Protection LevelIP66
MaterialMetal
IR RangeUp to 40 m
Dimensions75.4mm × 230.8 mm × 87.2 mm (2.97" ×9.09" × 3.43")
Weight545 g (1.20 lb.)
