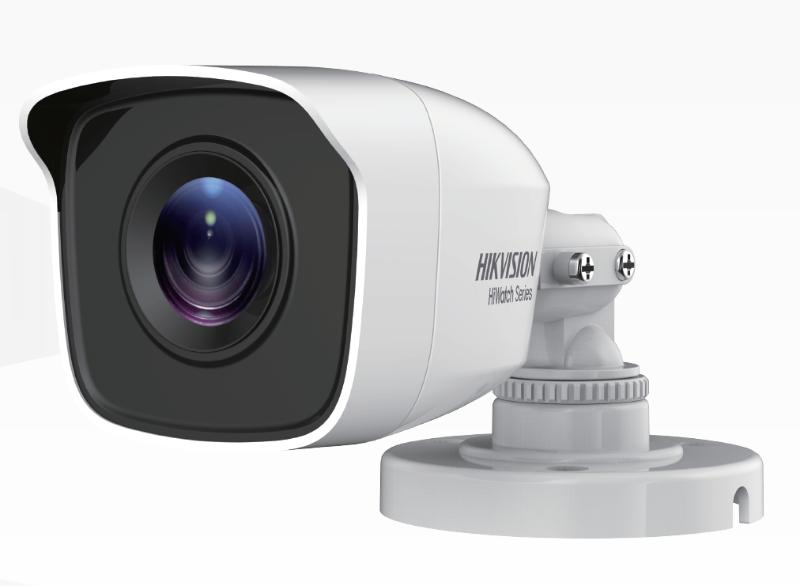

HWT-B150-M

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 20 m IR distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP66)

View Less
View more
Sales Inquiry

Available models:

HWT-B150-M(2.8mm)(HIK SPAIN)
HWT-B150-M(3.6mm)(HIK SPAIN)
HWT-B150-M#SPAIN

Specification

  • Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR, AGC
  • Frame RateTVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • Interface
  • Video Output1 HD analog output
  • General
  • MaterialMetal
  • Dimension165 mm × 62 mm × 58 mm ( 6.50" × 2.44" ×2.28")
  • WeightApprox. 230 g (0.51 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
5 MP CMOS
Max. Resolution
2560 (H) × 1944 (V)
Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & Night
ICR
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
Lens Mount
M12
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness, Sharpness, Mirror, Smart IR, AGC
Frame Rate
TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC, HLC
White Balance
ATW/MANUAL
Interface
Video Output
1 HD analog output
General
Material
Metal
Dimension
165 mm × 62 mm × 58 mm ( 6.50" × 2.44" ×2.28")
Weight
Approx. 230 g (0.51 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP66
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor5 MP CMOS
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
  • Signal SystemPAL/NTSC
Lens
  • Lens Type2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
  • Lens MountM12
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR, AGC
  • Frame RateTVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
Interface
  • Video Output1 HD analog output
General
  • MaterialMetal
  • Dimension165 mm × 62 mm × 58 mm ( 6.50" × 2.44" ×2.28")
  • WeightApprox. 230 g (0.51 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
