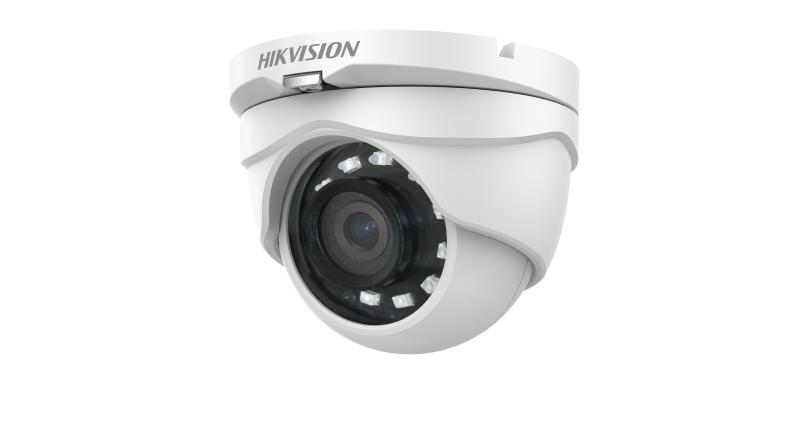

2 MP Fixed Turret Camera

  • 2 MP turret camera
  • Smart IR: up to 25 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specification
  • Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Frame RateTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
  • Resolution1920 (H) × 1080 (V)
  • Min. illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
  • Lens2.8 mm, 3.6 mm, 6 mm fixed lens
  • Horizontal Field of View 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
  • Lens MountM12
  • Day & NightICR
  • WDR (Wide Dynamic Range)Digital WDR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
  • Menu
  • Image ModeSTD/HIGH-SAT
  • AGCYes
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceAuto/Manual
  • HLCYes
  • BLC (Backlight Compensation)Yes
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, Smart IR
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Power Supply12 VDC ± 25%
  • Power ConsumptionMax. 3 W
  • Protection LevelIP67
  • MaterialMetal
  • IR RangeUp to 25 m
  • CommunicationHIKVISION-C
  • Dimensions89.47 mm × 67.6 mm (3.52" × 2.70")
  • WeightApprox. 250 g (0.55 lb.)
Specification
