EOL

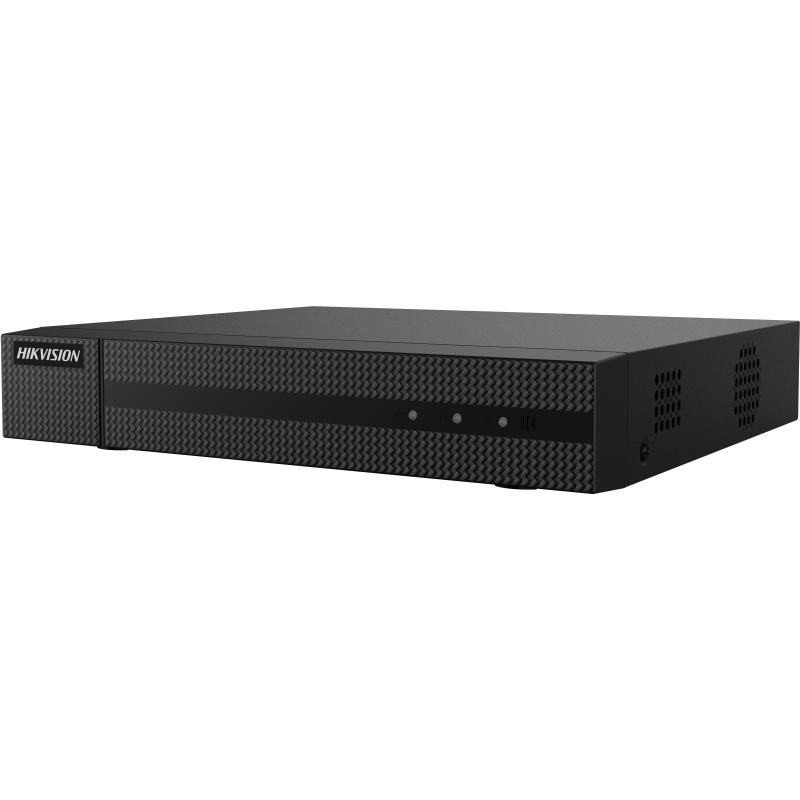

4-ch 5 MP 1U H.265 DVR

  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Long distance transmission over UTP and coaxial cable
  • H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
  • Encoding ability up to 8 MP @ 8 fps
  • One HDD for continuous video recording;
View Less
View more
Sales Inquiry

Available models:

HWD-7104MH-G3(C)(S)
HWD-7104MH
EOL

Specification

  • Hard disk
  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • External interface
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • USB interface2 × USB 2.0
  • General
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working humidity10% to 90%
  • Weights (without HDD)≤1 kg (2.2 lb)
  • Consumption(without HDD)≤ 10 W
  • Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Video/Audio input
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI input5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Audio compressionG.711u
  • IP video input4-ch (up to 8-ch);Up to 8 MP resolution
  • Video/Audio output
  • Encoding resolution5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame rateMain stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Video bit rate32 Kbps to 10 Mbps
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Audio bit rate64 Kbps
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Synchronous playback4-ch
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Network management
  • Remote connections32
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Hard disk
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
External interface
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
Network interface
1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface
2 × USB 2.0
General
Power supply
12 VDC
Working temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity
10% to 90%
Weights (without HDD)
≤1 kg (2.2 lb)
Consumption(without HDD)
≤ 10 W
Dimensions(W × D × H)
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Video/Audio input
Video compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input
4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input
PAL/NTSC
Audio compression
G.711u
IP video input
4-ch (up to 8-ch);Up to 8 MP resolution
Video/Audio output
Encoding resolution
5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate
32 Kbps to 10 Mbps
Audio output
1-ch, RCA (Linear, 1 KΩ)
Audio bit rate
64 Kbps
Dual stream
Support
Stream type
Video, Video & Audio
Synchronous playback
4-ch
HDMI/VGA output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network management
Remote connections
32
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Hard disk
  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
External interface
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • USB interface2 × USB 2.0
General
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working humidity10% to 90%
  • Weights (without HDD)≤1 kg (2.2 lb)
  • Consumption(without HDD)≤ 10 W
  • Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Video/Audio input
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI input5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
  • AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Audio compressionG.711u
  • IP video input4-ch (up to 8-ch);Up to 8 MP resolution
Video/Audio output
  • Encoding resolution5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame rateMain stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Video bit rate32 Kbps to 10 Mbps
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Audio bit rate64 Kbps
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Synchronous playback4-ch
  • HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network management
  • Remote connections32
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.30.303_220623
Firmware_V4.30.303_220623
Turbo HD DVR_V4.30.303 build 220623.pdf
Applied to:
HWD-7104MH-G3(C)(S)
