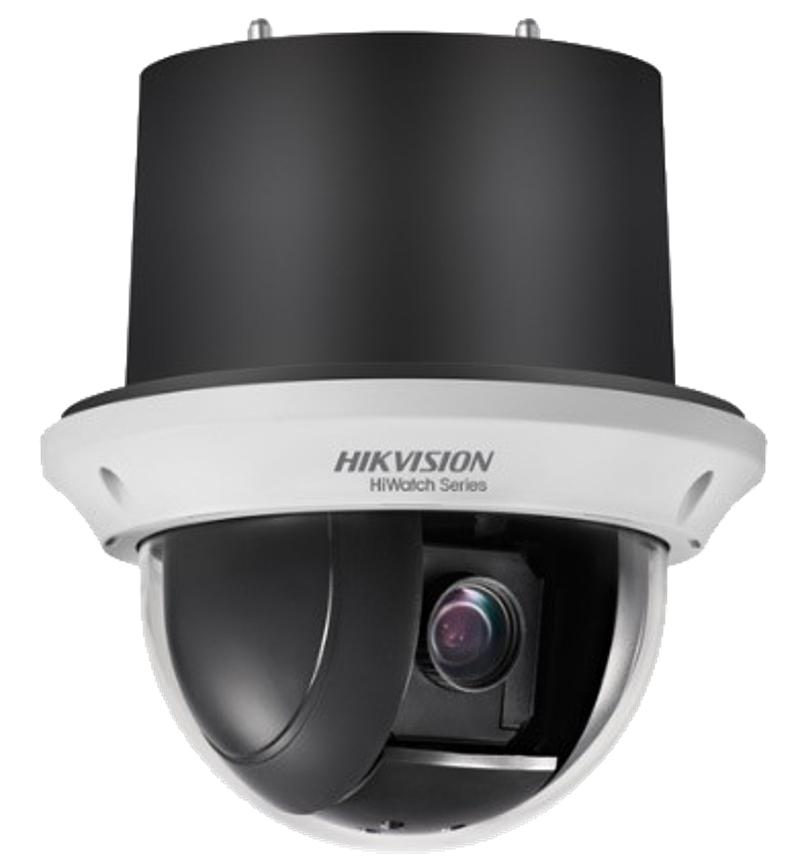

HWP-T4215-D3

2 MP 15X Powered by darkfighter Analog Speed Dome

  • Four-inch 2 MP camera with pan, tilt and zoom (15x) ability
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
View Less
View more
Sales Inquiry

Available models:

HWP-T4215-D3(D)
HWP-T4215-D3

Specification

  • Lens
  • FOVHorizontal field of view: 53.8° to 4.0° (wide to tele)
  • Focal Length5 mm to 75 mm, 15x Optical
  • Zoom SpeedApprox. 2.4 s (optical, wide to tele)
  • Working Distance10 mm to 1500 mm (wide to tele)
  • Aperture RangeF 1.6 to F 3.5
  • Video
  • Max. Resolution1920 × 1080
  • Interface
  • RS-485Half-duplex mode,Self-adaptive HIKVISION, Pelco-P, Pelco-D protocols
  • UTC functionUTC protocol (or HIKVISION-C protocol in previous DVR)
  • Analog Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • Camera Module
  • Frame Rate50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
  • AGCAuto/Manual
  • DNR3D DNR
  • Image Sensor1/2.8" progressive scan CMOS
  • ModelHWP-T4215-D3(C)
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON)
  • White BalanceAuto/Hauto/Manual/ATW/Indoor/Outdoor
  • Shutter TimePAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
  • Day & NightIR cut filter
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semiauto/Manual
  • WDR≥ 120 dB
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedPan manual speed: 0.1° to 100°/s,Pan preset speed: 100°/s
  • Movement Range (Tilt)-5° to 90° (auto flip)
  • Tilt SpeedTilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Presets256
  • Patrol Scan10 patrols, up to 32 presets per patrol
  • Pattern Scan5 patterns, with the total recording time no less than 10 minutes
  • Power-off MemorySupport
  • Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Lens
FOV
Horizontal field of view: 53.8° to 4.0° (wide to tele)
Focal Length
5 mm to 75 mm, 15x Optical
Zoom Speed
Approx. 2.4 s (optical, wide to tele)
Working Distance
10 mm to 1500 mm (wide to tele)
Aperture Range
F 1.6 to F 3.5
Video
Max. Resolution
1920 × 1080
Interface
RS-485
Half-duplex mode,Self-adaptive HIKVISION, Pelco-P, Pelco-D protocols
UTC function
UTC protocol (or HIKVISION-C protocol in previous DVR)
Analog Video Output
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Camera Module
Frame Rate
50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
AGC
Auto/Manual
DNR
3D DNR
Image Sensor
1/2.8" progressive scan CMOS
Model
HWP-T4215-D3(C)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance
Auto/Hauto/Manual/ATW/Indoor/Outdoor
Shutter Time
PAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
Day & Night
IR cut filter
Privacy Mask
8 programmable privacy masks
Focus Mode
Auto/Semiauto/Manual
WDR
≥ 120 dB
PTZ
Movement Range (Pan)
360° endless
Pan Speed
Pan manual speed: 0.1° to 100°/s,Pan preset speed: 100°/s
Movement Range (Tilt)
-5° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
Proportional Zoom
Rotation speed can be adjusted automatically according to zoom multiples
Presets
256
Patrol Scan
10 patrols, up to 32 presets per patrol
Pattern Scan
5 patterns, with the total recording time no less than 10 minutes
Power-off Memory
Support
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display
ON/OFF
Preset Freezing
Support
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Lens
  • FOVHorizontal field of view: 53.8° to 4.0° (wide to tele)
  • Focal Length5 mm to 75 mm, 15x Optical
  • Zoom SpeedApprox. 2.4 s (optical, wide to tele)
  • Working Distance10 mm to 1500 mm (wide to tele)
  • Aperture RangeF 1.6 to F 3.5
Video
  • Max. Resolution1920 × 1080
Interface
  • RS-485Half-duplex mode,Self-adaptive HIKVISION, Pelco-P, Pelco-D protocols
  • UTC functionUTC protocol (or HIKVISION-C protocol in previous DVR)
  • Analog Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Camera Module
  • Frame Rate50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
  • AGCAuto/Manual
  • DNR3D DNR
  • Image Sensor1/2.8" progressive scan CMOS
  • ModelHWP-T4215-D3(C)
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON)
  • White BalanceAuto/Hauto/Manual/ATW/Indoor/Outdoor
  • Shutter TimePAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
  • Day & NightIR cut filter
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semiauto/Manual
  • WDR≥ 120 dB
PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedPan manual speed: 0.1° to 100°/s,Pan preset speed: 100°/s
  • Movement Range (Tilt)-5° to 90° (auto flip)
  • Tilt SpeedTilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Presets256
  • Patrol Scan10 patrols, up to 32 presets per patrol
  • Pattern Scan5 patterns, with the total recording time no less than 10 minutes
  • Power-off MemorySupport
  • Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V3.51_190617
Applied to:
HWP-T4215-D3(D)
