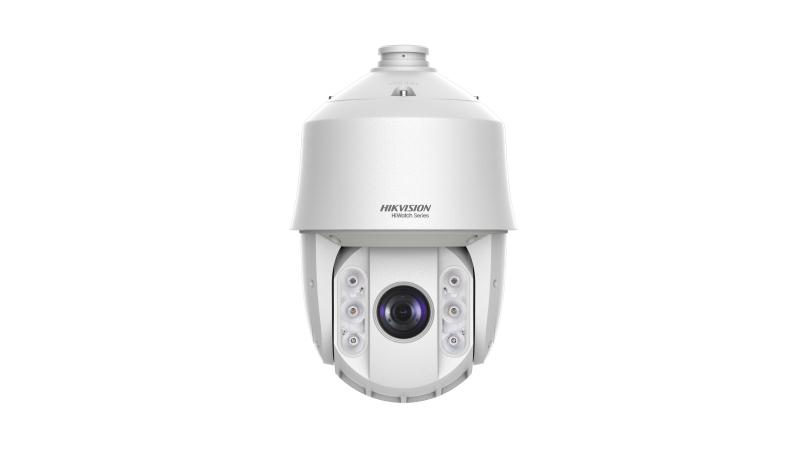

5-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome

Four-inch 5 MP camera with pan, tilt and zoom (25x) ability
Clear imaging against strong back light
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66).

View Less

Data Sheet

Available models:

HWP-N5225IH-AE(D)

HWP-N5225IH-AE

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/2.8" progressive scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Zoom25x optical, 16x digital

Lens
Focal Length4.8 mm to 120 mm, 25× optical
FOVHorizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)
FocusAuto, semi-auto, manual
ApertureF1.6 to F3.5
Zoom SpeedApprox. 3.2 s (optical lens, wide-tele)

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 150 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)From -15° to 90° (Auto-flip)
Pan SpeedConfigurable, from 0.1°/s to 120°/s, Preset Speed: 120°/s
Tilt SpeedConfigurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status DisplayYes
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Power-off MemoryYes

Video
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16384 Kbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)Main stream, sub-stream and third stream respectively support four fixed areas

Audio
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit RateG.711alaw/G.711ulaw: 64 Kbps, G.722.1/G.726: 16 Kbps, MP212/PCM: 32 Kbps to 160 Kbps

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface, ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network StorageNAS (NPS, SMB/ CIPS), ANR
ClientiVMS-4200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)120 dB
DefogDigital defog
Image StabilizationNo
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable privacy masks
Regional FocusYes
Regional ExposureYes

Interface
Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+
On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm2 inputs, 1 output

Event
Basic EventMotion Detection, Video Tampering Detection, Exception Detection
Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection

General
Power24 VAC, 2.2 A, 50/60 Hz & Hi-PoE 42.5 to 57 VDC, 1.41 A Max. 18 W
DimensionØ 213.4 mm × 345 mm (Ø 8.40" × 13.58")
WeightApprox. 3.3 kg (7.28 lb)
MaterialADC 12, PC+10% GF
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Camera

Image Sensor

1/2.8" progressive scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/1 s to 1/30,000 s

Day & Night

IR Cut Filter

Zoom

25x optical, 16x digital

Lens

Focal Length

4.8 mm to 120 mm, 25× optical

FOV

Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)

Focus

Auto, semi-auto, manual

Aperture

F1.6 to F3.5

Zoom Speed

Approx. 3.2 s (optical lens, wide-tele)

Illuminator

Supplement Light Type

Supplement Light Range

Up to 150 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360° endless

Movement Range (Tilt)

From -15° to 90° (Auto-flip)

Pan Speed

Configurable, from 0.1°/s to 120°/s, Preset Speed: 120°/s

Tilt Speed

Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s

Proportional Pan

Yes

Presets

300

Preset Freezing

Yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Park Action

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PTZ Status Display

Yes

Scheduled Task

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust

Power-off Memory

Yes

Video

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16384 Kbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

Main stream, sub-stream and third stream respectively support four fixed areas

Audio

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

G.711alaw/G.711ulaw: 64 Kbps, G.722.1/G.726: 16 Kbps, MP212/PCM: 32 Kbps to 160 Kbps

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface, ISAPI, SDK, ISUP

User/Host

Up to 32 users. 3 levels: Administrator, Operator and User

Security

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Network Storage

NAS (NPS, SMB/ CIPS), ANR

Client

iVMS-4200, Hik-Connect

Web Browser

IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51


Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Wide Dynamic Range (WDR)

120 dB

Defog

Digital defog

Image Stabilization

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

24 programmable privacy masks

Regional Focus

Yes

Regional Exposure

Yes

Interface

Ethernet Interface

1 RJ45 10 M/100 M Ethernet Interface; PoE+

On-board Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarm

2 inputs, 1 output

Event

Basic Event

Motion Detection, Video Tampering Detection, Exception Detection

Smart Event

Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection

General

Power

24 VAC, 2.2 A, 50/60 Hz & Hi-PoE 42.5 to 57 VDC, 1.41 A Max. 18 W

Dimension

Ø 213.4 mm × 345 mm (Ø 8.40" × 13.58")

Weight

Approx. 3.3 kg (7.28 lb)

Material

ADC 12, PC+10% GF

Operating Condition

-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP66 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
