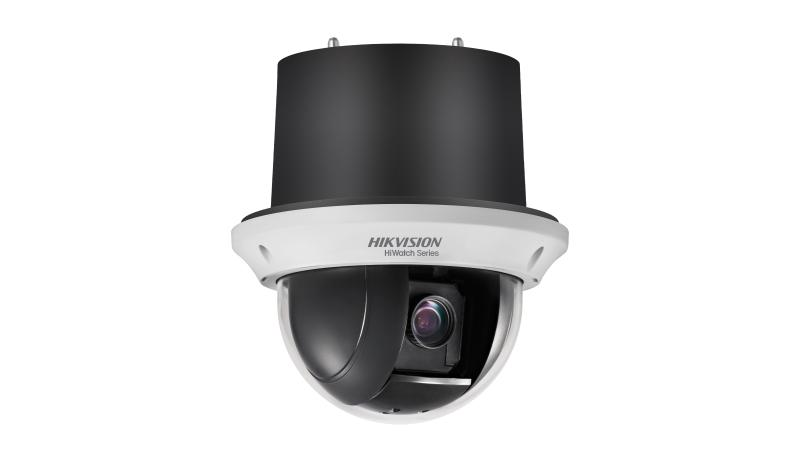

4-inch 2 MP 15X Powered by DarkFighter IR Network Speed Dome

  • Four-inch 2 MP camera with pan, tilt and zoom (15x) ability
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to 120 dB true WDR technology

View Less
View more
Data Sheet
Sales Inquiry

Available models:

HWP-N4215H-DE3(D)
HWP-N4215H-DE3(G)
HWP-N4215H-DE3
Data Sheet

Specification

  • Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON)
  • Shutter Speed1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Zoom15x optical, 16x digital
  • Lens
  • Focal Length5 mm to 75 mm, 15× optical
  • FOVHorizontal field of view: 53.8° to 4.0° (wide-tele), Vertical field of view: 31.9° to 2.3° (wide-tele), Diagonal field of view: 60.4° to 4.6°(wide-tele)
  • FocusAuto, semi-auto, manual
  • ApertureF1.6 to F3.0
  • Zoom SpeedApprox. 2.4 s (optical lens, wide-tele)
  • PTZ
  • Movement Range (Pan)360° endless
  • Movement Range (Tilt)From 0° to 90° (Auto-flip)
  • Pan SpeedConfigurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
  • Tilt SpeedConfigurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
  • Proportional PanYes
  • Presets300
  • Preset FreezingYes
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplayYes
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
  • Power-off MemoryYes
  • Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16384 Kbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)Main stream, sub-stream and third stream respectively support four fixed areas
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface, ISAPI, SDK, ISUP
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Network StorageNAS (NPS, SMB/ CIPS), ANR
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Wide Dynamic Range (WDR)120 dB
  • DefogDigital defog
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Mask24 programmable privacy masks
  • Regional FocusYes
  • Regional ExposureYes
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
  • On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
  • Event
  • Basic EventMotion Detection, Video Tampering Detection, Exception Detection
  • Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
  • General
  • Power12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max. 18 W
  • DimensionØ165 mm × 168 mm (Ø 6.5"×6.6") (In-ceiling mounting indoor model)
  • WeightApprox. 2 kg (4.41 lb)
  • MaterialADC 12, PC, PMMA
  • Operating Condition-10°C to 55°C (14°F to 131°F). Humidity 90% or less (non-condensing)
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection6000V Lightning Protection, Surge Protection and Voltage Transient Protection
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8" progressive scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON)
Shutter Speed
1/1 s to 1/30,000 s
Day & Night
IR Cut Filter
Zoom
15x optical, 16x digital
Lens
Focal Length
5 mm to 75 mm, 15× optical
FOV
Horizontal field of view: 53.8° to 4.0° (wide-tele), Vertical field of view: 31.9° to 2.3° (wide-tele), Diagonal field of view: 60.4° to 4.6°(wide-tele)
Focus
Auto, semi-auto, manual
Aperture
F1.6 to F3.0
Zoom Speed
Approx. 2.4 s (optical lens, wide-tele)
PTZ
Movement Range (Pan)
360° endless
Movement Range (Tilt)
From 0° to 90° (Auto-flip)
Pan Speed
Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
Tilt Speed
Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Proportional Pan
Yes
Presets
300
Preset Freezing
Yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status Display
Yes
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Power-off Memory
Yes
Video
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16384 Kbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
Main stream, sub-stream and third stream respectively support four fixed areas
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface, ISAPI, SDK, ISUP
User/Host
Up to 32 users. 3 levels: Administrator, Operator and User
Security
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network Storage
NAS (NPS, SMB/ CIPS), ANR
Client
iVMS-4200, Hik-Connect
Web Browser
IE10-11, Chrome 57+, Firefox 52+, Safari 12+
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)
120 dB
Defog
Digital defog
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
24 programmable privacy masks
Regional Focus
Yes
Regional Exposure
Yes
Interface
Ethernet Interface
1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
On-board Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Event
Basic Event
Motion Detection, Video Tampering Detection, Exception Detection
Smart Event
Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
General
Power
12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max. 18 W
Dimension
Ø165 mm × 168 mm (Ø 6.5"×6.6") (In-ceiling mounting indoor model)
Weight
Approx. 2 kg (4.41 lb)
Material
ADC 12, PC, PMMA
Operating Condition
-10°C to 55°C (14°F to 131°F). Humidity 90% or less (non-condensing)
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
6000V Lightning Protection, Surge Protection and Voltage Transient Protection
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON)
  • Shutter Speed1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Zoom15x optical, 16x digital
Lens
  • Focal Length5 mm to 75 mm, 15× optical
  • FOVHorizontal field of view: 53.8° to 4.0° (wide-tele), Vertical field of view: 31.9° to 2.3° (wide-tele), Diagonal field of view: 60.4° to 4.6°(wide-tele)
  • FocusAuto, semi-auto, manual
  • ApertureF1.6 to F3.0
  • Zoom SpeedApprox. 2.4 s (optical lens, wide-tele)
PTZ
  • Movement Range (Pan)360° endless
  • Movement Range (Tilt)From 0° to 90° (Auto-flip)
  • Pan SpeedConfigurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
  • Tilt SpeedConfigurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
  • Proportional PanYes
  • Presets300
  • Preset FreezingYes
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplayYes
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
  • Power-off MemoryYes
Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16384 Kbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)Main stream, sub-stream and third stream respectively support four fixed areas
Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface, ISAPI, SDK, ISUP
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Network StorageNAS (NPS, SMB/ CIPS), ANR
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Wide Dynamic Range (WDR)120 dB
  • DefogDigital defog
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Mask24 programmable privacy masks
  • Regional FocusYes
  • Regional ExposureYes
Interface
  • Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
  • On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Event
  • Basic EventMotion Detection, Video Tampering Detection, Exception Detection
  • Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
General
  • Power12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max. 18 W
  • DimensionØ165 mm × 168 mm (Ø 6.5"×6.6") (In-ceiling mounting indoor model)
  • WeightApprox. 2 kg (4.41 lb)
  • MaterialADC 12, PC, PMMA
  • Operating Condition-10°C to 55°C (14°F to 131°F). Humidity 90% or less (non-condensing)
Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection6000V Lightning Protection, Surge Protection and Voltage Transient Protection
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.7.11_230612
Release Note E7_V5.7.11_230612
Applied to:
HWP-N4215H-DE3(D)
HWP-N4215H-DE3(G)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics and tailor our website’s content. For more information on cookie practices please refer to our cookie policy.

Manage Cookies Reject all Accept
Accept
Reject all Manage Cookies
Sales
Technical Support
Newsletter Subscription
Online Service
Where to Buy
Website Feedback
Contact Us
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
