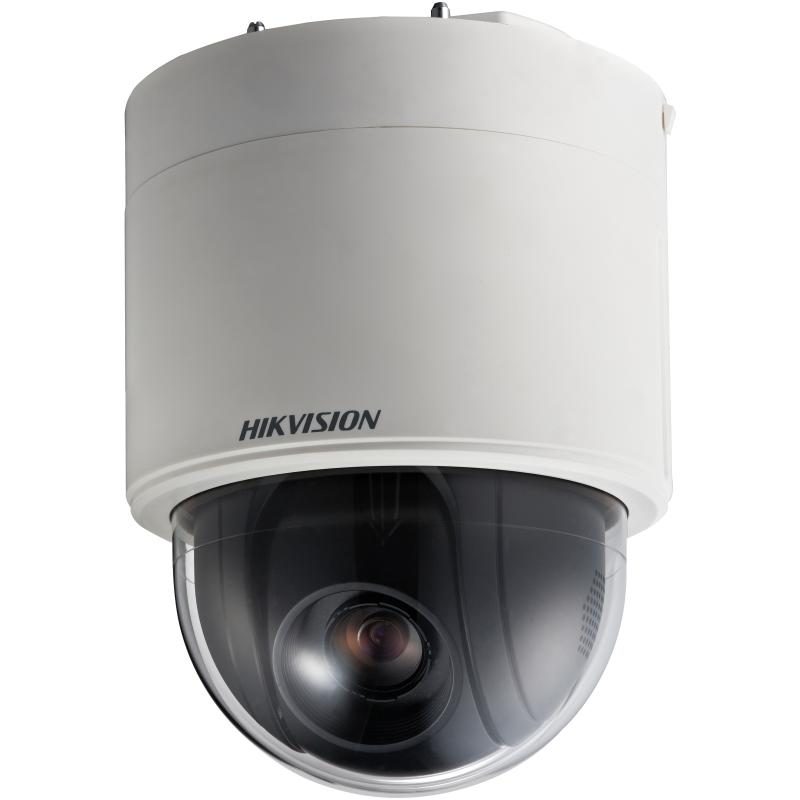

5-inch 2 MP 32X DarkFighter Network Speed Dome

  • 1/2.8" progressive scan CMOS
  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with DarkFighter technology
  • 32× optical zoom and 16× digital zoom provide close up views over expansive areas
  • 120 dB WDR, 3D DNR, HLC
  • Water and dust resistant (IP66) and vandal resistant (IK10)

Specification

  • Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
  • Shutter Speed1 to 1/30,000 s
  • Day & NightIR cut filter
  • Zoom32 × optical, 16 × digital
  • Max. Resolution1920 × 1080
  • Lens
  • FocusAuto, semi-auto, manual
  • Focal Length4.8 mm to 153 mm
  • Zoom SpeedApprox. 5.6 s
  • FOVHorizontal field of view: 58.4° to 2.14° (wide-tele) Vertical field of view: 33.8° to 1.2° (wide-tele) Diagonal field of view: 65.6° to 2.46° (wide-tele)
  • ApertureMax. F1.2
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-5° to 90° (auto flip)
  • Pan SpeedPan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt SpeedTilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional PanYes
  • Presets300
  • Patrol Scan8 patrols
  • Pattern Scan4 pattern scans
  • Power-off MemoryYes
  • Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Preset FreezingYes
  • Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline profile, main profile, high profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream
  • Audio
  • Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
  • Network
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
  • User/HostUp to 32 users, 3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • ClientiVMS-4200, HikCentral, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • DefogOptical defog
  • Image EnhancementBLC, HLC, 3D DNR
  • Wide Dynamic Range (WDR)120 dB WDR
  • Image StabilizationEIS
  • Regional ExposureYes
  • Regional FocusYes
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Alarm7 inputs, 2 outputs
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Event
  • Basic EventMotion detection, video tampering alarm, exception, alarm input and output
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Smart TrackingManual tracking, auto-tracking
  • Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Deep Learning Function
  • Face CaptureDetects up to 30 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
  • Road Traffic and Vehicle Detection
  • Road TrafficSupports vehicle detection
  • General
  • Power24 V, 2.5 A, 50/60Hz, AC (Max. 25 W), Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 25 W)
  • Operating Condition-10°C to 50°C (14°F to 122°F), Humidity 95% or less (non-condensing)
  • DimensionØ245.1 mm × 239 mm (Ø9.65" × 9.41")
  • Approx. 3.4 kg (7.5 lb.)
  • Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 62368-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
