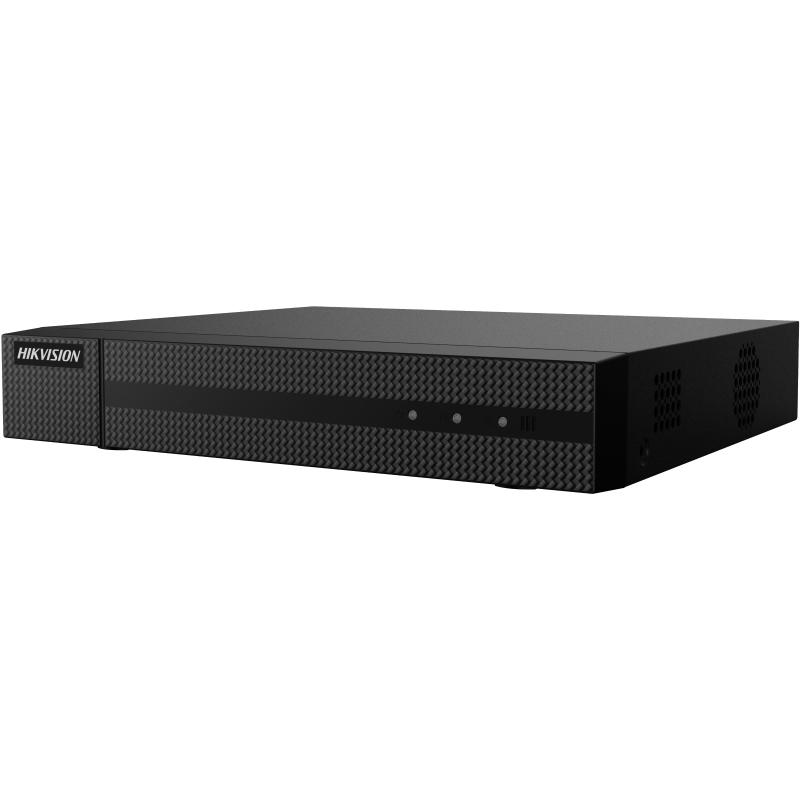

8-ch 1U 4K NVR

Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
Up to 80 Mbps incoming bandwidth

View Less

Data Sheet

Available models:

HWN-4108MH(C)

HWN-4108MH(D)

HWN-4108MH

Specification
Resources
Accessories

Data Sheet

Video and Audio
IP Video Input8-ch
HDMI OutputHDMI：1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA：1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
Incoming Bandwidth80 Mbps
Outgoing Bandwidth80 Mbps
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265+,H.265,H.264+,H.264
Decoding Capability4-ch@1080p
Synchronous playback8-ch
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE
InterfaceN/A

RAID
RAID TypeNo

Auxiliary Interface
SATA1 SATA interface
CapacityUp to 8TB capacity for each disk
USB Interface2 × USB 2.0

General
Power Supply12 VDC, 1.3 A
Consumption≤ 10 W
Working Temperature-10 to +55º C (+14 to +131º F)
Working Humidity10 to 90 %
Chassis1U
Dimension (W × D × H)265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Weight≤ 1 kg (2.2 lb)

Video and Audio

IP Video Input

8-ch

HDMI Output

HDMI：1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA：1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

80 Mbps

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265+,H.265,H.264+,H.264

Decoding Capability

4-ch@1080p

Synchronous playback

8-ch

Recording Resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Network Protocol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

Interface

N/A

RAID

RAID Type

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 8TB capacity for each disk

USB Interface

2 × USB 2.0

General

Power Supply

12 VDC, 1.3 A

Consumption

≤ 10 W

Working Temperature

-10 to +55º C (+14 to +131º F)

Working Humidity

10 to 90 %

Chassis

Dimension (W × D × H)

265 × 225 × 48 mm (10.2" × 8.9" × 1.9")

Weight

≤ 1 kg (2.2 lb)

Video and Audio

IP Video Input8-ch
HDMI OutputHDMI：1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA：1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
Incoming Bandwidth80 Mbps
Outgoing Bandwidth80 Mbps
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding FormatH.265+,H.265,H.264+,H.264
Decoding Capability4-ch@1080p
Synchronous playback8-ch
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE
