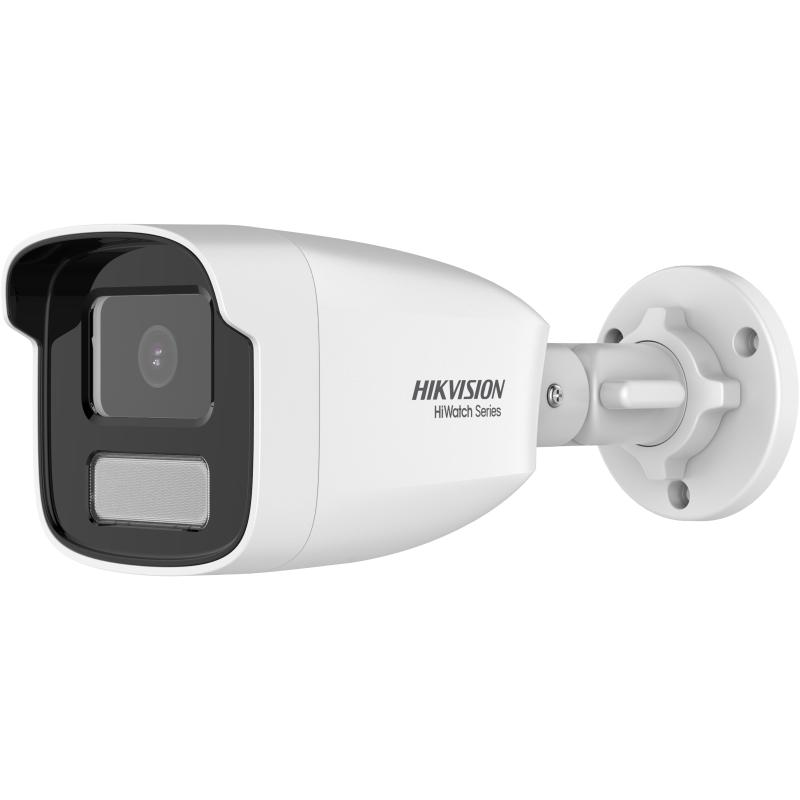

2 MP ColorVu Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • 24/7 color imaging
View Less
View more

Available models:

HWI-B429H(4mm)(C)(HiWatchSTD)
HWI-B429H(6mm)(C)(HiWatchSTD)

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
  • Shutter Speed1/3 s to 1/100, 000 s
  • Day & Night24/7 color imaging
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
  • Lens
  • Focal Length & FOV2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1° 4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
  • Lens MountM12
  • ApertureF1.0
  • DORI
  • DORI2.8 mm, D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m 4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
  • Illuminator
  • Smart Supplement LightYes
  • White Light RangeUp to 50 m
  • Video
  • Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region of Interest (ROI)1 fixed region for main stream
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception
  • General
  • Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.15 A to 0.2 A, max. 6.5 W
  • Linkage MethodUpload to FTP, notify surveillance center, send email, trigger capture
  • Camera MaterialFront cover: metal, body: plastic, bracket: metal
  • Camera Dimension83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2"× 8.1")
  • Package Dimension260 mm × 125 mm × 1
