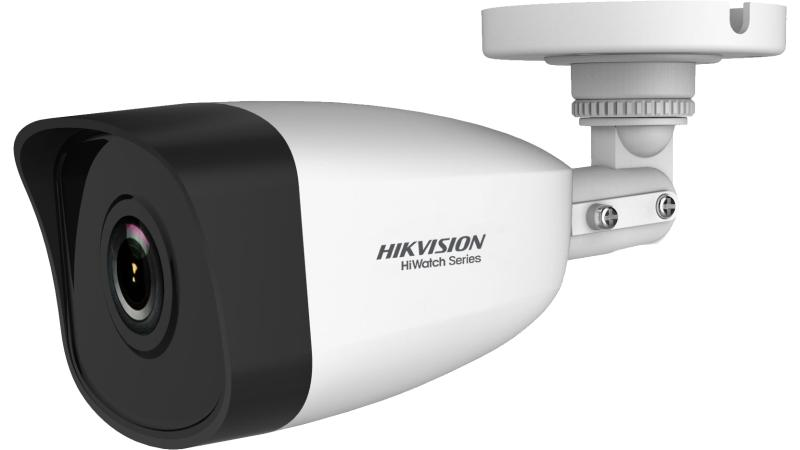

4 MP Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
3D DNR technology delivers clean and sharp images
Easy installation with Power over Ethernet (PoE) technology

View Less

Available models:

HWI-B140H-M(2.8mm)(ESP HIK)

HWI-B140H-M#SPAIN

Specification
Resources
Accessories

Camera
Image Sensor1/3" progressive scan CMOS
Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100, 000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens
Focal Length & FOV2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
Lens MountM12
FocusFixed
ApertureF2.0

Illuminator
IR Wavelength850 nm
IR RangeUp to 30 m

Video
Max. Resolution2560 × 1440
Main Stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Region of Interest (ROI)1 fixed region for main stream

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering alarm, exception

General
Linkage MethodUpload to FTP, notify surveillance center, send email
Camera MaterialMetal
Camera Dimension181.6 mm × 71.4 mm × 66.7 mm (7.1" × 2.8" × 2.6")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Camera WeightApprox. 270 g (0.6 lb.)
With Package WeightApprox. 490 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply12 VDC ± 25% PoE: 802.3af, Class 3
Power InterfaceØ5.5 mm coaxial power plug

Approval
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016);
EnvironmentCE-RoHS (2011/65/EU);
ProtectionIP67 (IEC 60529-2013)

Camera

Image Sensor

1/3" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

Lens Mount

M12

Focus

Fixed

Aperture

F2.0

Illuminator

IR Wavelength

850 nm

IR Range

Up to 30 m

Video

Max. Resolution

2560 × 1440

Main Stream

50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Region of Interest (ROI)

1 fixed region for main stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, Schedule, Day, Night

Image Enhancement

BLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception

General

Linkage Method

Upload to FTP, notify surveillance center, send email

Camera Material

Metal

Camera Dimension

181.6 mm × 71.4 mm × 66.7 mm (7.1" × 2.8" × 2.6")

Package Dimension

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Camera Weight

Approx. 270 g (0.6 lb.)

With Package Weight

Approx. 490 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Web Client Language

English, Ukrainian

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Power Consumption and Current

12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

Power Supply

12 VDC ± 25% PoE: 802.3af, Class 3

Power Interface

Ø5.5 mm coaxial power plug

Approval

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016);

Environment

CE-RoHS (2011/65/EU);

Protection

IP67 (IEC 60529-2013)
