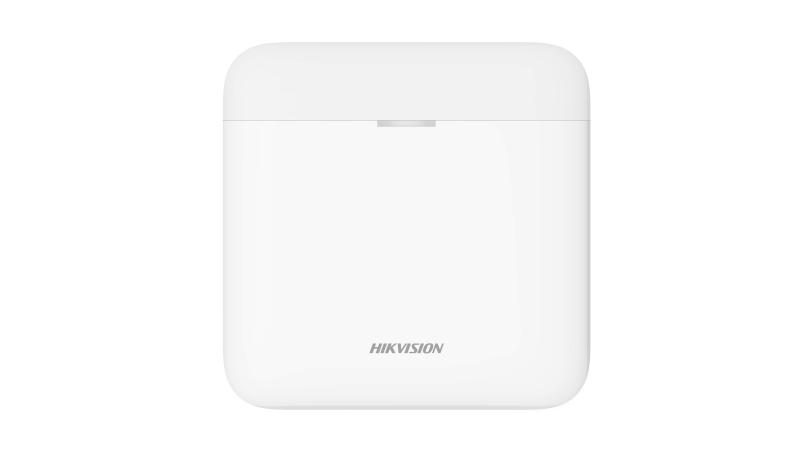

Wireless Repeater

868MHz two-way wireless communication
Two-way communication, stable and secure
LED display, show the differernt feedbacks with easy understanding
Up to 35 hrs battery backup after mains lost, no worry about communication
Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
Easy installation with new designed structure

View Less

Data Sheet

Available models:

DS-PR1-WE（O-STD）

DS-PR1-WE

Specification
Resources
Accessories

Data Sheet

Software features
Auto paringSupported

Hardware features
Serial port2, for debug
Tamper-Proof1, front and back
Power switch1

Electrical characteristics
Battery typeBuilt in Battery Li
Power supply100 VAC to 240 VAC
Operation humidity10％ to 90％
Operation temperature﹣10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
Battery life spanUp to 35 hours at normal temperature(The battery working time can be significantly reduced at low temperatures)

Wireless transmission
RF frequency868 MHz
RF methodTwo-way communication
RF modulation2GFSK
RF distance1600 m (open area)
Wireless securityAES-128

Display
LEDs status3, register/signal (green/red), power (green), fault (amber)

General
Installation methodWall mounting
Dimension(WxHxD)150 mm × 150 mm × 25 mm
Shell materialPlastic
ColorWhite
Weight372 g

Device management
PIRCAM paringSupported
KeypadLCD keypad not support

Software features

Auto paring

Supported

Hardware features

Serial port

2, for debug

Tamper-Proof

1, front and back

Power switch

Electrical characteristics

Battery type

Built in Battery Li

Power supply

100 VAC to 240 VAC

Operation humidity

10％ to 90％

Operation temperature

﹣10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)

Battery life span

Up to 35 hours at normal temperature(The battery working time can be significantly reduced at low temperatures)

Wireless transmission

RF frequency

868 MHz

RF method

Two-way communication

RF modulation

2GFSK

RF distance

1600 m (open area)

Wireless security

AES-128

Display

LEDs status

3, register/signal (green/red), power (green), fault (amber)

General

Installation method

Wall mounting

Dimension(WxHxD)

150 mm × 150 mm × 25 mm

Shell material

Plastic

Color

White

Weight

372 g

Device management

PIRCAM paring

Supported

Keypad

LCD keypad not support
