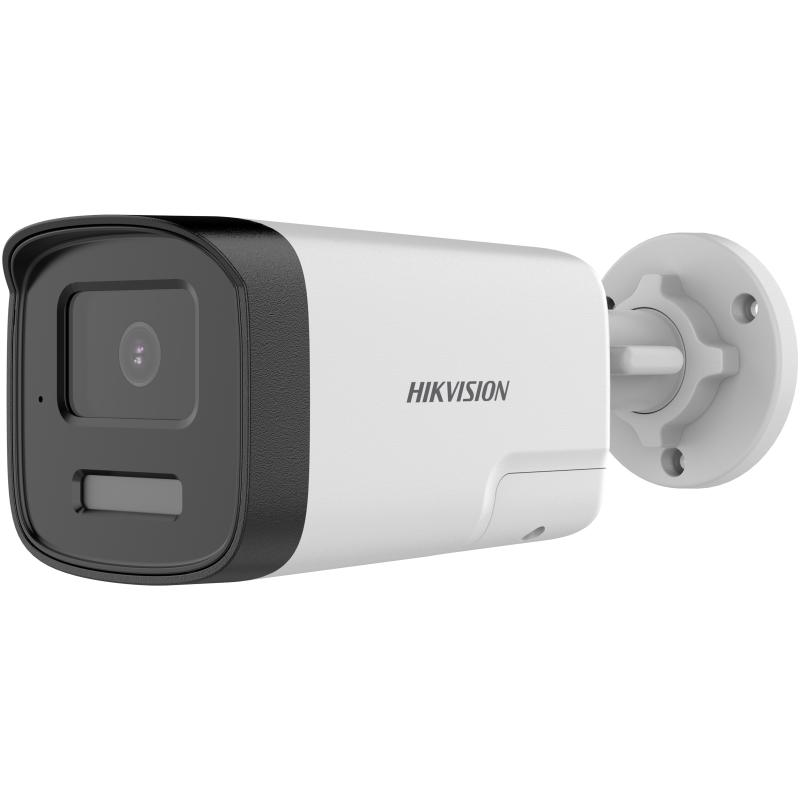

2MP Two Way Audio & Siren Fixed Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
Up to 40 m IR distance for bright night imaging
Up to 40 m white light distance for bright night imaging
Smart-Hybrid Light, optimize your security with flexible lighting options
Active strobe light and audio alarm
High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
Provide real-time communication via built-in two-way audio
Water and dust resistant (IP67)

View Less

Data Sheet

Available models:

DS-2CE17D0T-LXTS(2.8mm)

DS-2CE17D0T-LXTS(3.6mm)

DS-2CE17D0T-LXTS

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen2 MP CMOS
Max. Resolución1920 (H) × 1080 (V)
Iluminación mínima0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Tiempo de obturaciónPAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s
Día y NocheICR
Ajuste de ánguloPan: 0° to 360°,Tilt: 0° to 180°,Rotate: 0° to 360°
Señal del sistemaPAL/NTSC

Lente
Lente2.8 mm, 3.6 mm fixed lens
Focal Length & FOV2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 127°; 3.6 mm, horizontal FOV: 87°, vertical FOV: 46°, diagonal FOV: 105°
Montura del lenteM12

Micrófono
Distancia de recogidaIn a radius of up to 5 m
Amount1

Altavoz
Rated Power2 W
Speaker RangeIn a radius of up to 5 m

Iluminador
Tipo de luz suplementariaSmart,IR,White Light
Rango de luz suplementariaIR: Up to 40 m,White Light: Up to 40 m

Imagen
Configuración de imagen Anti-banding, Brightness, Sharpness, Smart IR
Frame RateTVI: 1080p @25 fps/30 fps
Modo día/nocheAuto/Color
Wide Dynamic Range (WDR)Digital WDR
Mejora de la imagenDWDR, BLC, HLC, Global, HLS
Reducción de ruido2D DNR
Balance de blancosAuto, Manual

Audio
Audio FunctionEcho Cancellation, AI Noise Reduction, Automatic Gain Control

Interfaz
Salida de Vídeo1 HD analog output
AlarmaFlashing Light Alarm (Red & Blue)

General
alimentación12 VDC ± 25%, max. 9.9 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
MaterialMain body: Metal; Enclosure: Plastic
Dimensión211 mm × 83.5 mm × 80.7 mm (8.31" × 3.29" × 3.18")
Approx. 440 g (0.97 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
ComunicaciónHIKVISION-C
IdiomaEnglish

Certificaciones
ProtecciónIP67

Cámara

Sensor de imagen

2 MP CMOS

Max. Resolución

1920 (H) × 1080 (V)

Iluminación mínima

0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR

Tiempo de obturación

PAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s

Día y Noche

ICR

Ajuste de ángulo

Pan: 0° to 360°,Tilt: 0° to 180°,Rotate: 0° to 360°

Señal del sistema

PAL/NTSC

Lente

2.8 mm, 3.6 mm fixed lens

Focal Length & FOV

2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 127°; 3.6 mm, horizontal FOV: 87°, vertical FOV: 46°, diagonal FOV: 105°

Montura del lente

M12

Micrófono

Distancia de recogida

In a radius of up to 5 m

Amount

Altavoz

Rated Power

2 W

Speaker Range

In a radius of up to 5 m

Iluminador

Tipo de luz suplementaria

Smart,IR,White Light

Rango de luz suplementaria

IR: Up to 40 m,White Light: Up to 40 m

Imagen

Configuración de imagen

Anti-banding, Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080p @25 fps/30 fps

Modo día/noche

Auto/Color

Wide Dynamic Range (WDR)

Digital WDR

Mejora de la imagen

DWDR, BLC, HLC, Global, HLS

Reducción de ruido

2D DNR

Balance de blancos

Auto, Manual

Audio

Audio Function

Echo Cancellation, AI Noise Reduction, Automatic Gain Control

Interfaz

Salida de Vídeo

1 HD analog output

Alarma

Flashing Light Alarm (Red & Blue)

General

alimentación

12 VDC ± 25%, max. 9.9 W, *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

Material

Main body: Metal; Enclosure: Plastic

Dimensión

211 mm × 83.5 mm × 80.7 mm (8.31" × 3.29" × 3.18")

Approx. 440 g (0.97 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

Comunicación

HIKVISION-C

Idioma

English

Certificaciones

Protección

IP67
