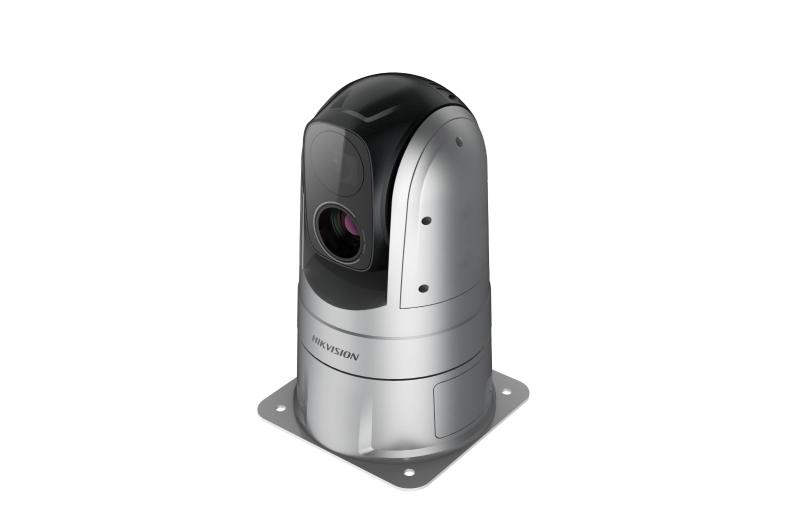

Bi-spectrum Mobile Thermal PTZ Camera

640 × 512 resolution, 12 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
High accuracy temperature exception alarm, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Support GPS positioning function
2.4GHz Wi-Fi, easy for set-up.; LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
Professionally designed structure, strong anti-shake capacity
E-mark and EN45545 on-board certification

View Less

Data Sheet

Available models:

DS-2TD4568-25A4/W

Especificación
Resources
Accesorios

Data Sheet

Módulo térmico
Sensor de imagenVOx Uncooled Focal Plane Arrays
Resolución640 x 512
Spectral Range8 μm to 14 μm
Tamaño de píxel12 μm
Longitud focal25 mm
Modo de enfoqueAthermalized
IFOV0.48 mrad
NETDLess than 35 mK (@25 °C,F#=1.0)
Campo de visión17.4° × 13.9° (H × V)
AperturaF1.0
Zoom Digital×1, ×2, ×4, ×8
Min. Distancia de enfoque23 m

Módulo óptico
Sensor de imagen1/2.8" Progressive Scan CMOS
Resolución2560 × 1440, 4 MP
Campo de visión55°×33° (H × V)~2.4°×1.4° (H × V)
Longitud focal4.8 mm～120 mm，25X
Iluminación mínimaColor: 0.05 Lux @ (F1.3, AGC ON), B/W: 0.01 Lux @ (F1.3, AGC ON)
Aperture (Range)F1.0-F1.6
Modo de enfoqueSemi-auto & Manual
Zoom Digital×1, ×2, ×4, ×8，×16
Modo día y nocheIR cut filter with auto switch
Velocidad de obturación1/1 s to 1/30,000 s
WDR120 dB
Desempañador ópticoNo, support defog by algorithm

Image Effect
Imagen en imagenDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationSupported in white hot and black hot mode(Up to 15 types)

PTZ
Rango de movimientoPan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
Velocidad de movimiento horizontal (pan)Configurable, From 0.2°/s to 200°/s
Velocidad de vertical (tilt)Configurable, From 0.2°/s to 100°/s
Zoom proporcionalYes
Preajustes300 in total, 273 are configurable.
Escaneo de patrulla8; Up to 32 Presets Per Patrol
Patrón de escaneo4; More Than 10 Minutes Per Pattern
Memoria de apagadoYes
ParquePreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

Iluminador
Distancia IRUp to 100m
Intensidad y ángulo IRAutomatically adjusted

Función inteligente
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Medida de temperaturaSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Rango de temperatura-20 °C to 150 °C (-4 °F to 302 °F)
Precisión de la temperatura ± 8 °C (±14.4 °F)
Detección de fuegoDynamic fire detection, up to 10 fire points detectable

Video and Audio
Main streamOptical channel 50 Hz: 25 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 x 576, 352 x 288, 384 x 288)
Sub-streamOptical channel 50 Hz: 25fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 50 fps (704 × 576, 352 × 288, 384 × 288)
Compresión de vídeoMain stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Almacenamiento en redMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Vista en vivo simultáneaUp to 20 channels
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User
SeguridadUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
ClienteiVMS-4200, Hik-Connect
Navegador webLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Mobile Communication
SIM Card TypeMicroSIM
FrecuenciaLTE FDD: B 1/3/5/7/8/20/28 LTE TDD: B 38/40/41 WCDMA: B 1/5/8
EstándarLTE FDD/LTE TDD/WCDMA
Wi-FiWi-Fi standard: IEEE802.11b, 802.11g, 802.11n Frequency range: 2.4GHz~2.4835GHz Channel bandwith: Support 20MHz Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Interfaz
Acción de alarmaPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Interfaz de comunicación1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

General
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Fuente de alimentaciónDC8V~DC36V
Consumo de energíaMax. ＜ 25 W
Working Temperature/HumidityFrom -40°C to 70°C (-40°F to 140°F); Humidity: 90% or Less
Nivel de protecciónIP67 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
DimensionesØ180mm×300mm(height)
Approx. 4.5 kg (10.8 lb)

Tabla de rango de detección/rango de función inteligente
Rango VCA para humanos250 m
Rango VCA para vehículos750 m

Certificaciones
OtrosE-mark and EN45545 on-board certification

Módulo térmico

Sensor de imagen

VOx Uncooled Focal Plane Arrays

Resolución

640 x 512

Spectral Range

8 μm to 14 μm

Tamaño de píxel

12 μm

Longitud focal

25 mm

Modo de enfoque

Athermalized

IFOV

0.48 mrad

NETD

Less than 35 mK (@25 °C,F#=1.0)

Campo de visión

17.4° × 13.9° (H × V)

Apertura

F1.0

Zoom Digital

×1, ×2, ×4, ×8

Min. Distancia de enfoque

23 m

Módulo óptico

Sensor de imagen

1/2.8" Progressive Scan CMOS

Resolución

2560 × 1440, 4 MP

Campo de visión

55°×33° (H × V)~2.4°×1.4° (H × V)

Longitud focal

4.8 mm～120 mm，25X

Iluminación mínima

Color: 0.05 Lux @ (F1.3, AGC ON), B/W: 0.01 Lux @ (F1.3, AGC ON)

Aperture (Range)

F1.0-F1.6

Modo de enfoque

Semi-auto & Manual

Zoom Digital

×1, ×2, ×4, ×8，×16

Modo día y noche

IR cut filter with auto switch

Velocidad de obturación

1/1 s to 1/30,000 s

WDR

120 dB

Desempañador óptico

No, support defog by algorithm

Image Effect

Imagen en imagen

Display partial image of thermal channel on the full screen of optical channel

Target Coloration

Supported in white hot and black hot mode(Up to 15 types)

PTZ

Rango de movimiento

Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)

Velocidad de movimiento horizontal (pan)

Configurable, From 0.2°/s to 200°/s

Velocidad de vertical (tilt)

Configurable, From 0.2°/s to 100°/s

Zoom proporcional

Yes

Preajustes

300 in total, 273 are configurable.

Escaneo de patrulla

8; Up to 32 Presets Per Patrol

Patrón de escaneo

4; More Than 10 Minutes Per Pattern

Memoria de apagado

Yes

Parque

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

Iluminador

Distancia IR

Up to 100m

Intensidad y ángulo IR

Automatically adjusted

Función inteligente

VCA

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Medida de temperatura

Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)

Rango de temperatura

-20 °C to 150 °C (-4 °F to 302 °F)

Precisión de la temperatura

± 8 °C (±14.4 °F)

Detección de fuego

Dynamic fire detection, up to 10 fire points detectable

Video and Audio

Main stream

Optical channel 50 Hz: 25 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 x 576, 352 x 288, 384 x 288)

Sub-stream

Optical channel 50 Hz: 25fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 50 fps (704 × 576, 352 × 288, 384 × 288)

Compresión de vídeo

Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Almacenamiento en red

MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

API

ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)

Vista en vivo simultánea

Up to 20 channels

Nivel de usuario/operador

Up to 32 users, 3 levels: Administrator, Operator, User

Seguridad

User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Cliente

iVMS-4200, Hik-Connect

Navegador web

Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Mobile Communication

SIM Card Type

MicroSIM

Frecuencia

LTE FDD: B 1/3/5/7/8/20/28 LTE TDD: B 38/40/41 WCDMA: B 1/5/8

Estándar

LTE FDD/LTE TDD/WCDMA

Wi-Fi

Wi-Fi standard: IEEE802.11b, 802.11g, 802.11n Frequency range: 2.4GHz~2.4835GHz Channel bandwith: Support 20MHz Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Interfaz

Acción de alarma

Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage

Interfaz de comunicación

1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

General

Menu Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Fuente de alimentación

DC8V~DC36V

Consumo de energía

Max. ＜ 25 W

Working Temperature/Humidity

From -40°C to 70°C (-40°F to 140°F); Humidity: 90% or Less

Nivel de protección

IP67 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensiones

Ø180mm×300mm(height)

Approx. 4.5 kg (10.8 lb)

Tabla de rango de detección/rango de función inteligente

Rango VCA para humanos

250 m

Rango VCA para vehículos

750 m

Certificaciones

Otros

E-mark and EN45545 on-board certification
