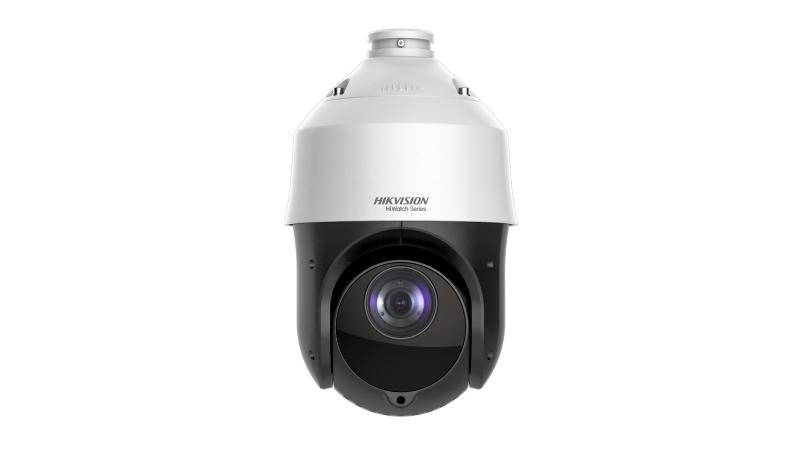

4-inch 2 MP 15X Powered by darkfighter IR Network Speed Dome

Four-inch 2 MP camera with pan, tilt and zoom (15x) ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)

View Less

Data Sheet

Available models:

HWP-N4215IH-DE(H)

HWP-N4215IH-DE

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen1/2.8" progressive scan CMOS
Max. Resolución1920 × 1080
Iluminación mínimaColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
Velocidad de obturación1/1 s to 1/30,000 s
Día y NocheIR Cut Filter
Zoom15x optical, 16x digital

Lente
Longitud focal5 mm to 75 mm, 15× optical
FOVHorizontal field of view: 53.8° to 4.0° (wide-tele), Vertical field of view: 31.9° to 2.3° (wide-tele), Diagonal field of view: 60.4° to 4.6°(wide-tele)
EnfoqueAuto, semi-auto, manual
AperturaF1.6 to F3.0
Velocidad del ZoomApprox. 2.4 s (optical lens, wide-tele)

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 100 m
Luz de suplemento inteligenteYes

PTZ
Rango de movimiento (pan)360° endless
Rango de movimiento (tilt)From -15° to 90° (Auto-flip)
Velocidad de movimiento horizontal (pan)Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Velocidad de vertical (tilt)Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Proportional PanYes
Preajustes300
Congelación preestablecidaYes
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
Acción del parquePreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Pantalla de estado de PTZYes
Tarea programadaPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Memoria de apagadoYes

Vídeo
Main stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16384 Kbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)Main stream, sub-stream and third stream respectively support four fixed areas

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface, ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users. 3 levels: Administrator, Operator and User
SeguridadUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Almacenamiento en redNAS (NPS, SMB/ CIPS), ANR
ClienteiVMS-4200, Hik-Connect
Navegador webIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen
Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)120 dB
DesempañarDigital defog
Mejora de la imagenBLC, HLC, 3D DNR
Máscara de privacidad24 programmable privacy masks
Enfoque regionalYes
Exposición regionalYes

Interfaz
Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
Almacenamiento a bordoBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

Evento
Evento BásicoMotion Detection, Video Tampering Detection, Exception Detection
Evento inteligenteIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection

General
alimentación12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max. 18 W (IR light 6 W Max.)
DimensiónØ 165.9 mm × 290 mm (Ø 6.53" × 11.42")
Approx. 2.5 kg (5.51 lb)
MaterialADC 12, PC+10% GF
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Certificaciones
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
SeguridadUL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIP66 (IEC 60529-2013), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Cámara

Sensor de imagen

1/2.8" progressive scan CMOS

Max. Resolución

1920 × 1080

Iluminación mínima

Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR

Velocidad de obturación

1/1 s to 1/30,000 s

Día y Noche

IR Cut Filter

Zoom

15x optical, 16x digital

Lente

Longitud focal

5 mm to 75 mm, 15× optical

FOV

Horizontal field of view: 53.8° to 4.0° (wide-tele), Vertical field of view: 31.9° to 2.3° (wide-tele), Diagonal field of view: 60.4° to 4.6°(wide-tele)

Enfoque

Auto, semi-auto, manual

Apertura

F1.6 to F3.0

Velocidad del Zoom

Approx. 2.4 s (optical lens, wide-tele)

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 100 m

Luz de suplemento inteligente

Yes

PTZ

Rango de movimiento (pan)

360° endless

Rango de movimiento (tilt)

From -15° to 90° (Auto-flip)

Velocidad de movimiento horizontal (pan)

Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s

Velocidad de vertical (tilt)

Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s

Proportional Pan

Yes

Preajustes

300

Congelación preestablecida

Yes

Escaneo de patrulla

8 patrols, up to 32 presets for each patrol

Patrón de escaneo

4 pattern scans, record time over 10 minutes for each scan

Acción del parque

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

Pantalla de estado de PTZ

Yes

Tarea programada

Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust

Memoria de apagado

Yes

Vídeo

Main stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Compresión de vídeo

Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16384 Kbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

Main stream, sub-stream and third stream respectively support four fixed areas

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

Vista en vivo simultánea

Up to 20 channels

API

Open Network Video Interface, ISAPI, SDK, ISUP

Usuario/operador

Up to 32 users. 3 levels: Administrator, Operator and User

Seguridad

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Almacenamiento en red

NAS (NPS, SMB/ CIPS), ANR

Cliente

iVMS-4200, Hik-Connect

Navegador web

IE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen

Configuración de imagen

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Wide Dynamic Range (WDR)

120 dB

Desempañar

Digital defog

Mejora de la imagen

BLC, HLC, 3D DNR

Máscara de privacidad

24 programmable privacy masks

Enfoque regional

Yes

Exposición regional

Yes

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)

Almacenamiento a bordo

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

Evento

Evento Básico

Motion Detection, Video Tampering Detection, Exception Detection

Evento inteligente

Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection

General

alimentación

12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max. 18 W (IR light 6 W Max.)

Dimensión

Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42")

Approx. 2.5 kg (5.51 lb)

Material

ADC 12, PC+10% GF

Operating Condition

-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Certificaciones

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)

Seguridad

UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protección

IP66 (IEC 60529-2013), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
