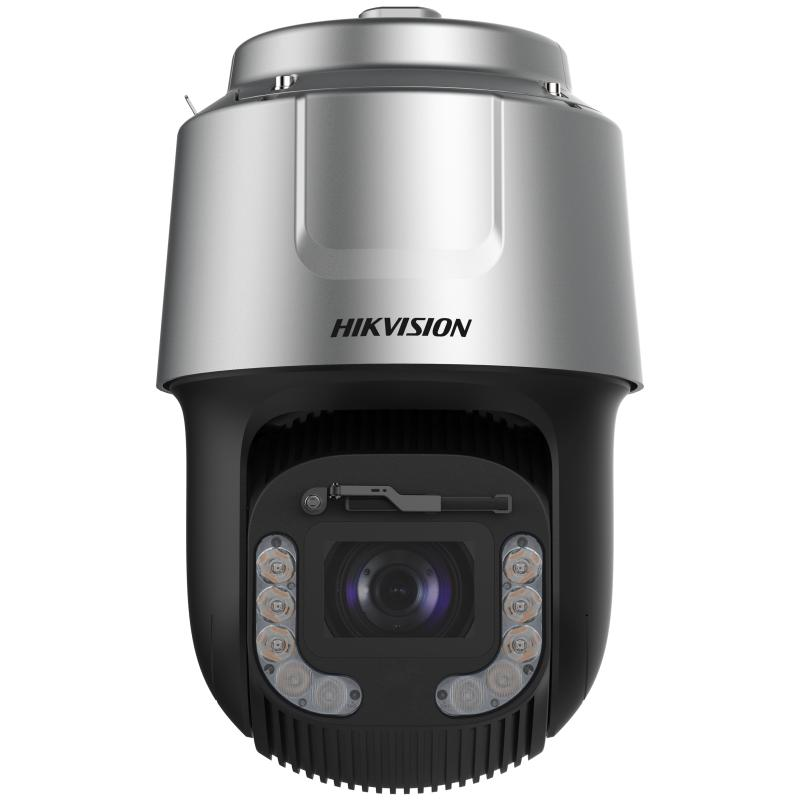

8C Series 4 MP 25X DarkFighterX IR Network Speed Dome

  • Dual sensor 1/1.8" progressive scan CMOS
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with DarkFighterX technology
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • 300 m IR distance
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • Supports face capture to detect, capture, grade, and select faces in motion
  • Supports road traffic to detect vehicles
  • Efficient H.265+/H.265 compression technology
  • 140 dB WDR, 3D DNR, HLC, BLC, EIS, defog

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2DF8C425MHS-DELW
DS-2DF8C425MHS-DELW
Data Sheet

Especificación

  • Cámara
  • Sensor de imagenTwo sensors, 1/1.8" Progressive Scan CMOS
  • Max. Resolución2560 × 1440
  • Iluminación mínimaColor: 0.0004 Lux @ (F1.6, AGC ON),B/W: 0.0001 Lux @ (F1.6, AGC ON),0 Lux with IR
  • Velocidad de obturación1/1 s to 1/30000 s
  • Zoom25 × optical,16 × digital
  • Obturador lentoYes
  • Lente
  • Longitud focal5.9 to 147.5 mm
  • FOVHorizontal field of view: 59° to 3.05°, vertical field of view: 34.28° to 1.73°, diagonal field of view: 66.92° to 3.49°
  • EnfoqueAuto,semi-auto,manual,rapid focus
  • AperturaF1.6
  • Velocidad del ZoomApprox. 6.2 s
  • Iluminador
  • Tipo de luz suplementariaHybrid
  • Rango de luz suplementariaIR distance: up to 300 m
  • Luz de suplemento inteligenteYes
  • PTZ
  • Rango de movimiento (pan)0° to 360°
  • Rango de movimiento (tilt)-20° to 90°
  • Velocidad de movimiento horizontal (pan)Pan speed: configurable from 0.1° to 210°/s, preset speed: 280°/s
  • Velocidad de vertical (tilt)Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
  • Proportional PanYes
  • Preajustes300
  • Congelación preestablecidaYes
  • Escaneo de patrulla8 patrols, up to 32 presets for each patrol
  • Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
  • Acción del parquePreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • Posicionamiento 3DYes
  • Pantalla de estado de PTZYes
  • Tarea programadaPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
  • Memoria de apagadoYes
  • Vídeo
  • Main stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Compresión de vídeoMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
  • Vídeo bitrate32 Kbps to 16 Mbps
  • Tipo H.264Baseline profile,Main profile,High profile
  • Tipo H.265Main profile
  • Codificación de video escalable (SVC)H.264 and H.265 encoding
  • Región de interés (ROI)8 fixed regions for each stream
  • Audio
  • Compresión de audioG.711,G.722.1,MP2L2,G.726,PCM,AAC-LC
  • Velocidad de bits de audio64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
  • Red
  • ProtocolosIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,TCP/IP,ICMP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,UPnP,SMTP,SNMP,IGMP,UDP,Bonjour,NTP
  • Vista en vivo simultáneaUp to 20 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • Usuario/operadorUp to 32 users. 3 user levels: administrator, operator, and user
  • SeguridadPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
  • Almacenamiento en redNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • ClienteiVMS-4200,HikCentral Pro,Hik-Connect
  • Navegador webIE 10+, Chrome 57+, Firefox 52+, Safari 12+
  • Imagen
  • Interruptor de parámetros de imagenYes
  • Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Interruptor día/nocheDay,night,auto,schedule
  • Wide Dynamic Range (WDR)140 dB
  • SNR≥ 52 dB
  • DesempañarOptical defog
  • Image StabilizationEIS
  • Mejora de la imagenBLC,HLC,3D DNR
  • Máscara de privacidad24 programmable polygon privacy masks, mask color or mosaic configurable
