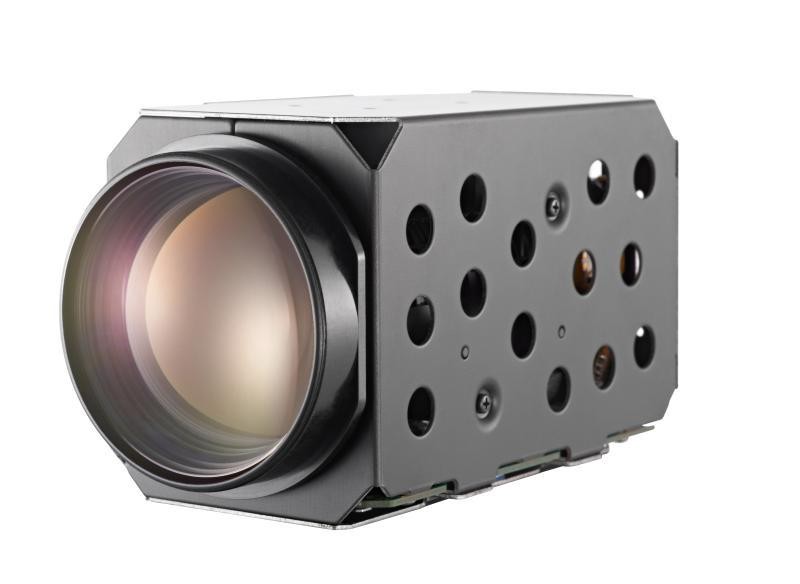

iDS-2ZMN3207N-JKB(B)

1/2.8" progressive scan CMOS
Up to 1920 × 1080 resolution
32 × optical zoom, focal length 5.9 mm to 188.8 mm
Min. illumination: Color: 0.05 Lux @ (F1.5, AGC ON)
IR cut filter with auto switch
EIS, 120 dB WDR, 3D DNR
Smart events: intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Face capture
Quick and accurate focus
Efficient H.265 compression technology
Multiple interfaces for extended functionality
Network output
Small size and low power consumption
Easy to connect to PTZ cameras and positioning systems
Seamless access to mainstream platforms and other network devices

View Less

Data Sheet

Available models:

Especificación
Resources
Accesorios

Data Sheet

Módulo de cámara
Sensor de imagen1/2.8" progressive scan CMOS
Iluminación mínimaColor: 0.05 Lux @ (F1.5, AGC ON); B/W: 0.01 Lux @(F1.5, AGC ON)
Resolution and Frame RateMain Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoH.264/H.265
Compresión de audioG.722.1, G.711alaw, G.711ulaw, MP2L2, G.726, PCM
Balance de blancosauto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Ganar controlAuto/Manual
SNR>52 dB
DNR 3Dyes
BLCyes
Enfoque regionalyes
Obturador1/1 s to 1/30,000 s
Día y NocheAuto/Color/BW/Triggered by Alarm Input/Scheduled-Switch
Zoom Digital12 ×
Enfoqueauto, semi-auto, manual
Máscara de privacidadup to 8 masks
Exposición regionalyes
Vídeo bitrate32 kbps to 16384 kbps
Heartbeatyes
Interruptor día/nocheICR
Exposure Mode auto, iris priority, shutter priority, manual

Función
Mejora de la imagen120 dB WDR, HLC, BLC, electronic defog, EIS with built-in gyroscope
Codificación Inteligentelow bit rate, ROI
Detección de excepcionesillegal login
Memoria de apagadoyes
Smart Detectionintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Captura de la carayes

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour
APIOpen-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect
Navegador webIE 10-11, Chrome 57+, Firefox 52+, Safari 12+
Vista en vivo simultáneaUp to 20 channels
UserUp to 32 users. 3 levels: Administrator, Operator and User
Medidas de seguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access

Interfaz
Interfaz de energía12 VDC ± 10%
Interfaz de comunicación10 M/100 M Ethernet interface
E/S de audio1 audio input, 1 audio output
E/S de alarma1 alarm input, 1 alarm output
Salida de Vídeono
Salida SDIno
RS-485yes
Almacenamiento a bordoMicro SD/Micro SDHC/Micro SDXC card, up to 256 GB
Interfaz36pin FFC (including network interface, RS485, RS232, SDHC, alarm in/out, line in/out, power supply)
ComunicaciónRS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol

General
Consumo de energíaStatic: 5 W, Dynamic: 7 W
Condiciones de operaciónTemperature: -10 °C to 60 °C (14°F to 140°F) Humidity: ≤90%
Dimensiones57 mm × 67 mm × 137 mm (2.24" × 2.64" × 5.39")
Approx. 435 g (0.96 lb.)

Lente
Longitud focal5.9 mm to 188.8 mm, 32 × optical
FOVHorizontal field of view: 59.8° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Velocidad del ZoomApprox. 5.6 s (Optical, Wide-Tele)
AperturaF1.5 to F3.4

Módulo de cámara

Sensor de imagen

1/2.8" progressive scan CMOS

Iluminación mínima

Color: 0.05 Lux @ (F1.5, AGC ON); B/W: 0.01 Lux @(F1.5, AGC ON)

Resolution and Frame Rate

Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Compresión de vídeo

H.264/H.265

Compresión de audio

G.722.1, G.711alaw, G.711ulaw, MP2L2, G.726, PCM

Balance de blancos

auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB

Ganar control

Auto/Manual

SNR

>52 dB

DNR 3D

yes

BLC

yes

Enfoque regional

yes

Obturador

1/1 s to 1/30,000 s

Día y Noche

Auto/Color/BW/Triggered by Alarm Input/Scheduled-Switch

Zoom Digital

12 ×

Enfoque

auto, semi-auto, manual

Máscara de privacidad

up to 8 masks

Exposición regional

yes

Vídeo bitrate

32 kbps to 16384 kbps

Heartbeat

yes

Interruptor día/noche

ICR

Exposure Mode

auto, iris priority, shutter priority, manual

Función

Mejora de la imagen

120 dB WDR, HLC, BLC, electronic defog, EIS with built-in gyroscope

Codificación Inteligente

low bit rate, ROI

Detección de excepciones

illegal login

Memoria de apagado

yes

Smart Detection

intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Captura de la cara

yes

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour

API

Open-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect

Navegador web

IE 10-11, Chrome 57+, Firefox 52+, Safari 12+

Vista en vivo simultánea

Up to 20 channels

User

Up to 32 users. 3 levels: Administrator, Operator and User

Medidas de seguridad

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access

Interfaz

Interfaz de energía

12 VDC ± 10%

Interfaz de comunicación

10 M/100 M Ethernet interface

E/S de audio

1 audio input, 1 audio output

E/S de alarma

1 alarm input, 1 alarm output

Salida de Vídeo

Salida SDI

RS-485

yes

Almacenamiento a bordo

Micro SD/Micro SDHC/Micro SDXC card, up to 256 GB

Interfaz

36pin FFC (including network interface, RS485, RS232, SDHC, alarm in/out, line in/out, power supply)

Comunicación

RS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol

General

Consumo de energía

Static: 5 W, Dynamic: 7 W

Condiciones de operación

Temperature: -10 °C to 60 °C (14°F to 140°F) Humidity: ≤90%

Dimensiones

57 mm × 67 mm × 137 mm (2.24" × 2.64" × 5.39")

Approx. 435 g (0.96 lb.)

Lente

Longitud focal

5.9 mm to 188.8 mm, 32 × optical

FOV

Horizontal field of view: 59.8° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°

Velocidad del Zoom

Approx. 5.6 s (Optical, Wide-Tele)

Apertura

F1.5 to F3.4

Módulo de cámara

Sensor de imagen1/2.8" progressive scan CMOS
Iluminación mínimaColor: 0.05 Lux @ (F1.5, AGC ON); B/W: 0.01 Lux @(F1.5, AGC ON)
Resolution and Frame RateMain Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoH.264/H.265
Compresión de audioG.722.1, G.711alaw, G.711ulaw, MP2L2, G.726, PCM
Balance de blancosauto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Ganar controlAuto/Manual
SNR>52 dB
DNR 3Dyes
BLCyes
Enfoque regionalyes
Obturador1/1 s to 1/30,000 s
Día y NocheAuto/Color/BW/Triggered by Alarm Input/Scheduled-Switch
Zoom Digital12 ×
Enfoqueauto, semi-auto, manual
Máscara de privacidadup to 8 masks
Exposición regionalyes
Vídeo bitrate32 kbps to 16384 kbps
Heartbeatyes
Interruptor día/nocheICR
Exposure Mode auto, iris priority, shutter priority, manual

Función

Mejora de la imagen120 dB WDR, HLC, BLC, electronic defog, EIS with built-in gyroscope
Codificación Inteligentelow bit rate, ROI
Detección de excepcionesillegal login
Memoria de apagadoyes
Smart Detectionintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Captura de la carayes

Red

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour
APIOpen-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect
Navegador webIE 10-11, Chrome 57+, Firefox 52+, Safari 12+
Vista en vivo simultáneaUp to 20 channels
UserUp to 32 users. 3 levels: Administrator, Operator and User
Medidas de seguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access

Interfaz

Interfaz de energía12 VDC ± 10%
Interfaz de comunicación10 M/100 M Ethernet interface
E/S de audio1 audio input, 1 audio output
E/S de alarma1 alarm input, 1 alarm output
Salida de Vídeono
Salida SDIno
RS-485yes
Almacenamiento a bordoMicro SD/Micro SDHC/Micro SDXC card, up to 256 GB
Interfaz36pin FFC (including network interface, RS485, RS232, SDHC, alarm in/out, line in/out, power supply)
ComunicaciónRS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol

General

Consumo de energíaStatic: 5 W, Dynamic: 7 W
Condiciones de operaciónTemperature: -10 °C to 60 °C (14°F to 140°F) Humidity: ≤90%
Dimensiones57 mm × 67 mm × 137 mm (2.24" × 2.64" × 5.39")
Approx. 435 g (0.96 lb.)

Lente

Longitud focal5.9 mm to 188.8 mm, 32 × optical
FOVHorizontal field of view: 59.8° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Velocidad del ZoomApprox. 5.6 s (Optical, Wide-Tele)
AperturaF1.5 to F3.4
