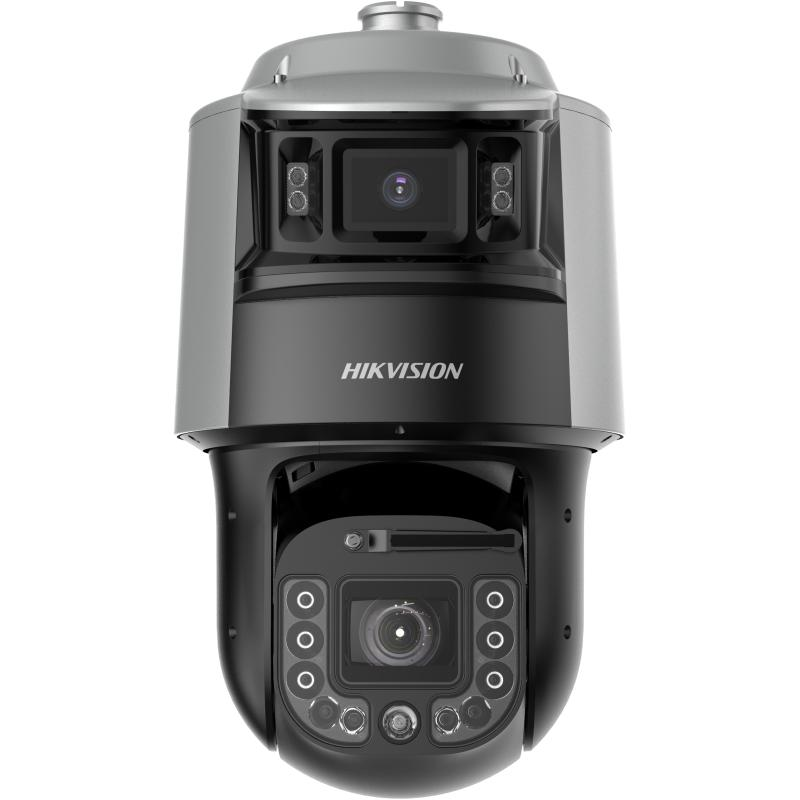

TandemVu 8C Series 4MP 32X Water-Level Detection Darkfighter Network Speed Dome

Built-in gauge reading algorithm to automatically get the readings of standard water level gauges
Detects water level range from 0 to 40 m, within 80 m distance, with minimum scale of 1 cm and detection accuracy of ±2 cm
Performance mode, power saving mode, and sleep mode are available, the minimum power consumption is whitin 5 W
With high accuracy PT system, the moving hysteresis error is less than 0.08°
The platform can wake up the device via remote command in sleep mode
High quality imaging with max. resolution of 2560 × 1440 @30 fps

View Less

Data Sheet

Available models:

DS-2SF8C432MXG-WD/14(F1)

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen[Bullet channel] 1/1.8"" Progressive Scan CMOS, [PTZ channel] 1/1.8"" Progressive Scan CMOS
Max. Resolución2560 × 1440
Iluminación mínima[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR
Velocidad de obturación1/1~1/30000 s
Día y Noche[Bullet channel] 24/7 color imaging, [PTZ channel] IR cut filter
Zoom[PTZ channel] 32 × optical, 16 × digital
Obturador lentoyes

Lente
Longitud focal[Bullet channel] 4 mm, [PTZ channel] 7.1 to 227.2 mm
FOV[Bullet channel]: 90°, [PTZ channel]: approx. 60.2° to 2.3° (wide-tele)
Enfoquesemi-auto,manual,auto
Apertura[Bullet channel] F1.0, [PTZ channel] F1.5
Velocidad del Zoom[Bullet channel] No, [PTZ channel] approx. 5.6 s

Iluminador
Rango de luz suplementaria[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
Luz de suplemento inteligenteyes

PTZ
Rango de movimiento (pan)[PTZ channel] 0° to 360°
Rango de movimiento (tilt)[PTZ channel] -20° to 90°
Velocidad de movimiento horizontal (pan)[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Velocidad de vertical (tilt)[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan[Bullet channel] No, [PTZ channel] Yes
Preajustes300
Congelación preestablecidayes
Escaneo de patrulla8 patrols
Patrón de escaneo4 pattern scans
Acción del parquepreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Tarea programadapreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Memoria de apagadoyes

Vídeo
Main stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoH.265,H.264,MJPEG
Vídeo bitrate32 to 16384 Kbps
Tipo H.264Baseline Profile, Main Profile, High Profile
Tipo H.265Main Profile
Codificación de video escalable (SVC)yes
Región de interés (ROI)fixed region

Audio
Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM
Velocidad de bits de audioMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps, AAC-LC: 16 kbps, 32 kbps, 64 kbps
Frecuencia de muestreo de audioMP2L2: 16 kHz, 32 kHz, 48 kHz, AAC-LC: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Filtro de ruido ambientalyes

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, websocket, websockets
Vista en vivo simultánea20
APIISUP, Open-ended API, ISAPI, Hikvision SDK, Ehome, Open Network Video Interface
Usuario/operador32
SeguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Almacenamiento en redANR, NAS (NFS, SMB/CIFS)
ClienteiVMS-4200
Navegador webIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Imagen
Interruptor de parámetros de imagenyes
Configuración de imagensaturation, brightness, contrast, sharpness
Interruptor día/nocheday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR≥52dB
DesempañarOptical defog
Image Stabilizationyes
Mejora de la imagenBLC,HLC,3D DNR
Máscara de privacidad[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Enfoque regional[Bullet channel] No, [PTZ channel] Yes
Exposición regionalyes

Supplement Detection
Gyroscopeyes

Interfaz
Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Altavoz incorporado1 built-in speaker
Audio1 audio input, 2.0 to 2.4 Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarma7 alarm inputs, 2 alarm output
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Reiniciaryes

Evento
Evento Básicoaudio exception, video tampering alarm, alarm in, alarm out, exceptions
LinkageUpload to FTP/NAS/memory card, audible warning, preset, patrol scan, pattern scan, send email, notify surveillance center, white light flashing, trigger alarm output, trigger recording

Deep Learning Function
Multi-Target-Type Detection[Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

Water Level
Distancia de detección≤100 m
Water Level Range0 to 40 m
Minimum Scale1 cm
Detection Accuracy±2 cm

General
alimentación12 VDC/5 A max. 60 W (including 6 W for heater and 6 w for supplement light in panoramic channel, and 6 W for heater and 12 w for supplement light in PTZ channel)
DimensiónØ243 mm × 424 mm (Ø9.57" × 16.69")
Approx. 9.845 kg (21.7 lb.)
MaterialADC12
Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 90% or less (non-condensing) Operationg temperature for the speaker: -30 ℃ to 55 ℃ (-22 °F to 131 °F).
Función generalmirror,password protection,watermark,IP address filter
Limpiador de lenteyes
Demistayes
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones
ProtecciónIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection

Cámara

Sensor de imagen

[Bullet channel] 1/1.8"" Progressive Scan CMOS, [PTZ channel] 1/1.8"" Progressive Scan CMOS

Max. Resolución

2560 × 1440

Iluminación mínima

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR

Velocidad de obturación

1/1~1/30000 s

Día y Noche

[Bullet channel] 24/7 color imaging, [PTZ channel] IR cut filter

Zoom

[PTZ channel] 32 × optical, 16 × digital

Obturador lento

yes

Lente

Longitud focal

[Bullet channel] 4 mm, [PTZ channel] 7.1 to 227.2 mm

FOV

[Bullet channel]: 90°, [PTZ channel]: approx. 60.2° to 2.3° (wide-tele)

Enfoque

semi-auto,manual,auto

Apertura

[Bullet channel] F1.0, [PTZ channel] F1.5

Velocidad del Zoom

[Bullet channel] No, [PTZ channel] approx. 5.6 s

Iluminador

Rango de luz suplementaria

[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m

Luz de suplemento inteligente

yes

PTZ

Rango de movimiento (pan)

[PTZ channel] 0° to 360°

Rango de movimiento (tilt)

[PTZ channel] -20° to 90°

Velocidad de movimiento horizontal (pan)

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Velocidad de vertical (tilt)

[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

[Bullet channel] No, [PTZ channel] Yes

Preajustes

300

Congelación preestablecida

yes

Escaneo de patrulla

8 patrols

Patrón de escaneo

4 pattern scans

Acción del parque

preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

Posicionamiento 3D

yes

Pantalla de estado de PTZ

yes

Tarea programada

preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Memoria de apagado

yes

Vídeo

Main stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Compresión de vídeo

H.265,H.264,MJPEG

Vídeo bitrate

32 to 16384 Kbps

Tipo H.264

Baseline Profile, Main Profile, High Profile

Tipo H.265

Main Profile

Codificación de video escalable (SVC)

yes

Región de interés (ROI)

fixed region

Audio

Compresión de audio

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM

Velocidad de bits de audio

MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps, AAC-LC: 16 kbps, 32 kbps, 64 kbps

Frecuencia de muestreo de audio

MP2L2: 16 kHz, 32 kHz, 48 kHz, AAC-LC: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Filtro de ruido ambiental

yes

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, websocket, websockets

Vista en vivo simultánea

API

ISUP, Open-ended API, ISAPI, Hikvision SDK, Ehome, Open Network Video Interface

Usuario/operador

Seguridad

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Almacenamiento en red

ANR, NAS (NFS, SMB/CIFS)

Cliente

iVMS-4200

Navegador web

IE 10+, Chrome 57+, Firefox 52+, Safari 12+

Imagen

Interruptor de parámetros de imagen

yes

Configuración de imagen

saturation, brightness, contrast, sharpness

Interruptor día/noche

day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

120 dB WDR

SNR

≥52dB

Desempañar

Optical defog

Image Stabilization

yes

Mejora de la imagen

BLC,HLC,3D DNR

Máscara de privacidad

[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Enfoque regional

[Bullet channel] No, [PTZ channel] Yes

Exposición regional

yes

Supplement Detection

Gyroscope

yes

Interfaz

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

Almacenamiento a bordo

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Altavoz incorporado

1 built-in speaker

Audio

1 audio input, 2.0 to 2.4 Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω

Alarma

7 alarm inputs, 2 alarm output

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Reiniciar

yes

Evento

Evento Básico

audio exception, video tampering alarm, alarm in, alarm out, exceptions

Linkage

Upload to FTP/NAS/memory card, audible warning, preset, patrol scan, pattern scan, send email, notify surveillance center, white light flashing, trigger alarm output, trigger recording

Deep Learning Function

Multi-Target-Type Detection

[Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

Water Level

Distancia de detección

≤100 m

Water Level Range

0 to 40 m

Minimum Scale

1 cm

Detection Accuracy

±2 cm

General

alimentación

12 VDC/5 A max. 60 W (including 6 W for heater and 6 w for supplement light in panoramic channel, and 6 W for heater and 12 w for supplement light in PTZ channel)

Dimensión

Ø243 mm × 424 mm (Ø9.57" × 16.69")

Approx. 9.845 kg (21.7 lb.)

Material

ADC12

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 90% or less (non-condensing) Operationg temperature for the speaker: -30 ℃ to 55 ℃ (-22 °F to 131 °F).

Función general

mirror,password protection,watermark,IP address filter

Limpiador de lente

yes

Demista

yes

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones

Protección

IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection

Cámara

Sensor de imagen[Bullet channel] 1/1.8"" Progressive Scan CMOS, [PTZ channel] 1/1.8"" Progressive Scan CMOS
Max. Resolución2560 × 1440
Iluminación mínima[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR
Velocidad de obturación1/1~1/30000 s
Día y Noche[Bullet channel] 24/7 color imaging, [PTZ channel] IR cut filter
Zoom[PTZ channel] 32 × optical, 16 × digital
Obturador lentoyes

Lente

Longitud focal[Bullet channel] 4 mm, [PTZ channel] 7.1 to 227.2 mm
FOV[Bullet channel]: 90°, [PTZ channel]: approx. 60.2° to 2.3° (wide-tele)
Enfoquesemi-auto,manual,auto
Apertura[Bullet channel] F1.0, [PTZ channel] F1.5
Velocidad del Zoom[Bullet channel] No, [PTZ channel] approx. 5.6 s

Iluminador

Rango de luz suplementaria[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
Luz de suplemento inteligenteyes

PTZ

Rango de movimiento (pan)[PTZ channel] 0° to 360°
Rango de movimiento (tilt)[PTZ channel] -20° to 90°
Velocidad de movimiento horizontal (pan)[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Velocidad de vertical (tilt)[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan[Bullet channel] No, [PTZ channel] Yes
Preajustes300
Congelación preestablecidayes
Escaneo de patrulla8 patrols
Patrón de escaneo4 pattern scans
Acción del parquepreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Tarea programadapreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Memoria de apagadoyes

Vídeo

Main stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoH.265,H.264,MJPEG
Vídeo bitrate32 to 16384 Kbps
Tipo H.264Baseline Profile, Main Profile, High Profile
Tipo H.265Main Profile
Codificación de video escalable (SVC)yes
Región de interés (ROI)fixed region

Audio

Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM
Velocidad de bits de audioMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps, AAC-LC: 16 kbps, 32 kbps, 64 kbps
Frecuencia de muestreo de audioMP2L2: 16 kHz, 32 kHz, 48 kHz, AAC-LC: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Filtro de ruido ambientalyes

Red

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, websocket, websockets
Vista en vivo simultánea20
APIISUP, Open-ended API, ISAPI, Hikvision SDK, Ehome, Open Network Video Interface
Usuario/operador32
SeguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Almacenamiento en redANR, NAS (NFS, SMB/CIFS)
ClienteiVMS-4200
Navegador webIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Imagen

Interruptor de parámetros de imagenyes
Configuración de imagensaturation, brightness, contrast, sharpness
Interruptor día/nocheday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR≥52dB
DesempañarOptical defog
Image Stabilizationyes
Mejora de la imagenBLC,HLC,3D DNR
Máscara de privacidad[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Enfoque regional[Bullet channel] No, [PTZ channel] Yes
Exposición regionalyes

Supplement Detection

Gyroscopeyes

Interfaz

Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Altavoz incorporado1 built-in speaker
Audio1 audio input, 2.0 to 2.4 Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarma7 alarm inputs, 2 alarm output
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Reiniciaryes

Evento

Evento Básicoaudio exception, video tampering alarm, alarm in, alarm out, exceptions
LinkageUpload to FTP/NAS/memory card, audible warning, preset, patrol scan, pattern scan, send email, notify surveillance center, white light flashing, trigger alarm output, trigger recording

Deep Learning Function

Multi-Target-Type Detection[Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

Water Level

Distancia de detección≤100 m
Water Level Range0 to 40 m
Minimum Scale1 cm
Detection Accuracy±2 cm

General

alimentación12 VDC/5 A max. 60 W (including 6 W for heater and 6 w for supplement light in panoramic channel, and 6 W for heater and 12 w for supplement light in PTZ channel)
DimensiónØ243 mm × 424 mm (Ø9.57" × 16.69")
Approx. 9.845 kg (21.7 lb.)
MaterialADC12
Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 90% or less (non-condensing) Operationg temperature for the speaker: -30 ℃ to 55 ℃ (-22 °F to 131 °F).
Función generalmirror,password protection,watermark,IP address filter
Limpiador de lenteyes
Demistayes
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
