*Images are for illustrative purposes. Actual product appearance and specifications may vary.

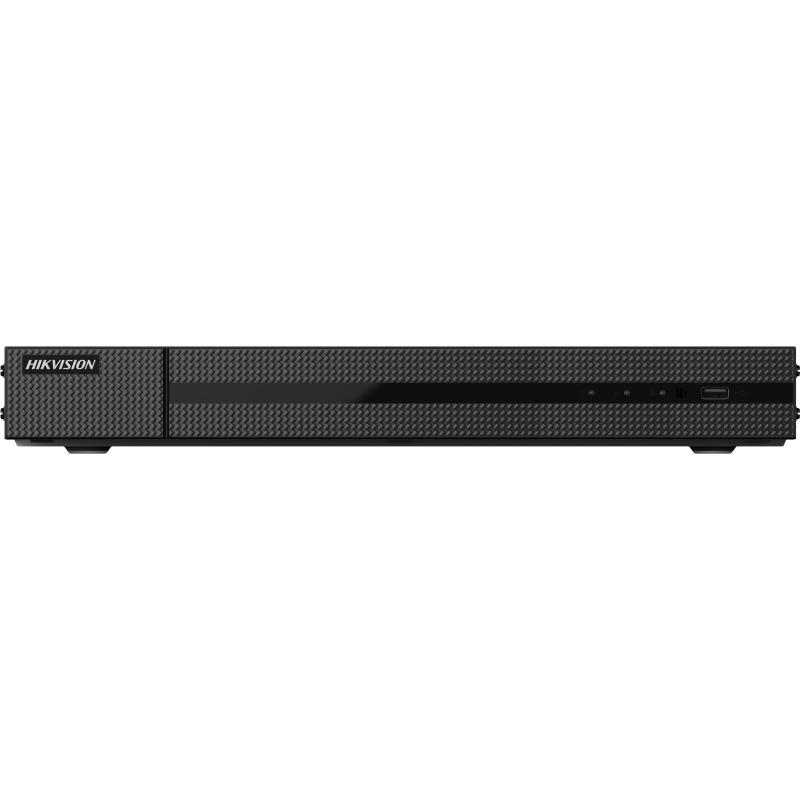

32-ch PoE 1U K Series AcuSense 4K NVR

Up to 32-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 256 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

View Less

Available models:

DS-7632NXI-K2/16P/ESP/HWN-5232MH-16P(D)

HWN-5232MH-16P #SPAIN

Especificación
Resources
Accesorios

Intelligent Analytics
AI by DeviceFacial recognition, perimeter protection, motion detection 2.0
AI by CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance1-ch, 8 MP
Comparación de imagen de cara4-ch

Detección de movimiento 2.0
By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels

Protección perimetral
By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels

Video and Audio
Entrada de vídeo IP32-ch
Incoming Bandwidth256 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA independent output
CVBS OutputN/A
Salida de audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio1-ch, RCA (Linear, 1 KΩ)

Descodificación
Formato de decodificaciónH.265/H.265+/H.264+/H.264
Resolución de grabación12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Reproducción síncrona16-ch
DecodificaciónAI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Compresión de audioG.711ulaw/G.711alaw/G.722/G.726/AAC

Red
Conexión remota128
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Interfaz de red1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interfaz16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
alimentación≤ 200 W
EstándarIEEE 802.3af/at

Auxiliary Interface
SATA2 SATA interfaces
CapacidadUp to 10 TB capacity for each HDD
Interfaz USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarma E/S4/1

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Fuente de alimentación100 to 240 VAC, 50 to 60 Hz
Consumo≤ 15 W (without HDD and PoE off)
Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
Condiciones de Humedad10% to 90%
Dimensión (W × D × H)385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
≤ 3 kg (without HDD, 6.6 lb.)

Certificación
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

Intelligent Analytics

AI by Device

Facial recognition, perimeter protection, motion detection 2.0

AI by Camera

Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

1-ch, 8 MP

Comparación de imagen de cara

4-ch

Detección de movimiento 2.0

By Device

All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm

By Camera

All channels

Protección perimetral

By Device

2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

By Camera

All channels

Video and Audio

Entrada de vídeo IP

32-ch

Incoming Bandwidth

256 Mbps

Outgoing Bandwidth

160 Mbps

HDMI Output

1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

N/A

Salida de audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Two-Way Audio

1-ch, RCA (Linear, 1 KΩ)

Descodificación

Formato de decodificación

H.265/H.265+/H.264+/H.264

Resolución de grabación

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Reproducción síncrona

16-ch

Decodificación

AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

Stream Type

Video, Video & Audio

Compresión de audio

G.711ulaw/G.711alaw/G.722/G.726/AAC

Red

Conexión remota

128

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Protocolo de red

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Interfaz de red

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interfaz

16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

alimentación

≤ 200 W

Estándar

IEEE 802.3af/at

Auxiliary Interface

SATA

2 SATA interfaces

Capacidad

Up to 10 TB capacity for each HDD

Interfaz USB

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarma E/S

4/1

General

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

Fuente de alimentación

100 to 240 VAC, 50 to 60 Hz

Consumo

≤ 15 W (without HDD and PoE off)

Temperatura de trabajo

-10 °C to 55 °C (14 °F to 131 °F)

Condiciones de Humedad

10% to 90%

Dimensión (W × D × H)

385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")

≤ 3 kg (without HDD, 6.6 lb.)

Certificación
