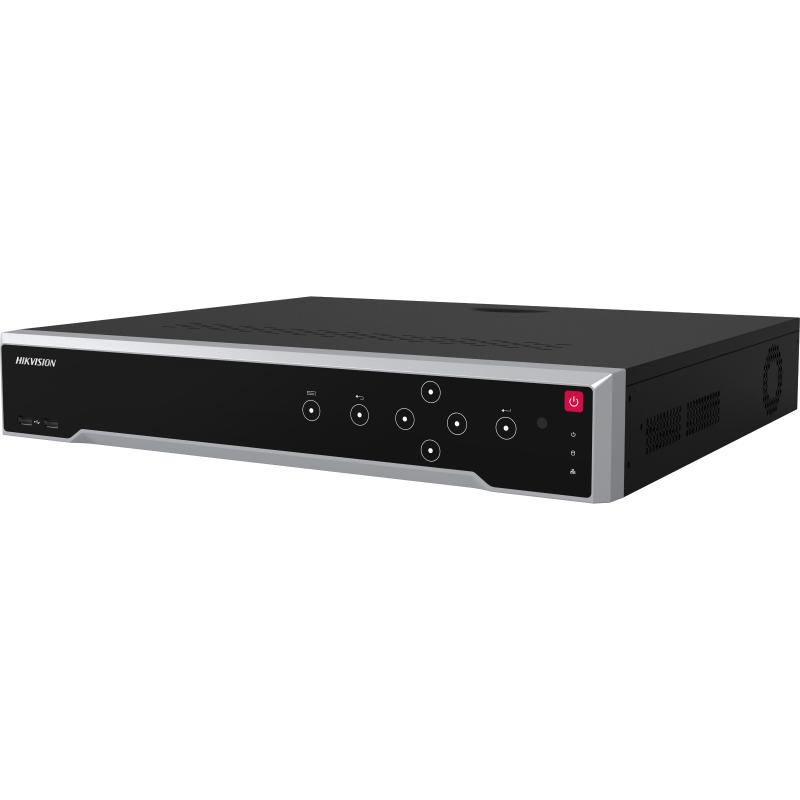

32-ch 1.5U 16 PoE 8K NVR

H.265+/H.265/H.264+/H.264 video formats
Up to 32-ch IP camera inputs
Up to 32-ch@1080p decoding capacity
Up to 320 Mbps incoming bandwidth
Up to 8-ch IP speakers can be connected

View Less

Data Sheet

Available models:

DS-7732NI-M4/16P

Especificación
Resources
Accesorios

Data Sheet

Video and Audio
Entrada de vídeo IP32-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth320 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA Output 1920 × 1080/60Hz
Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Descodificación
Formato de decodificaciónH.265+/H.265/H.264+/H.264
Resolución de grabación32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Reproducción Sincrónica16-ch
Decodificación2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Compresión de audioG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Red
Conexión remota128
Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Interfaz de red1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

PoE
Interfaz16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
alimentación≤ 200 W
EstándarIEEE 802.3 af/at

RAID
RAID TypeN/A

Auxiliary Interface
eSATA1 eSATA interface
SATA4 SATA interfaces
CapacidadUp to 16 TB capacity for each disk
Interfaz de serie2 RS-485 (half-duplex), 1 RS-232
Alarma E/S16/9
Interfaz USBFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

General
Fuente de alimentación100 to 240 VAC, 50 to 60 Hz
Consumo≤ 15 W (without HDD and PoE off)
Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
Condiciones de Humedad10% to 90%
Chassis19-inch rack-mounted 1.5U chassis
Dimensión (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
≤ 5 kg (without HDD, 11 lb.)

Certificación
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Video and Audio

Entrada de vídeo IP

32-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

400 Mbps

HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

VGA Output

1920 × 1080/60Hz

Video Output Mode

HDMI1/VGA simultaneous output, HDMI2/VGA independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Salida de audio

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Descodificación

Formato de decodificación

H.265+/H.265/H.264+/H.264

Resolución de grabación

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Reproducción Sincrónica

16-ch

Decodificación

2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)

Dual-Stream Recording

Support

Stream Type

Video, Video & Audio

Compresión de audio

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Red

Conexión remota

128

Protocolo de red

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

Interfaz de red

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Camera Access Protocol

ONVIF(Version 2.5), RTSP

PoE

Interfaz

16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

alimentación

≤ 200 W

Estándar

IEEE 802.3 af/at

RAID

RAID Type

N/A

Auxiliary Interface

eSATA

1 eSATA interface

SATA

4 SATA interfaces

Capacidad

Up to 16 TB capacity for each disk

Interfaz de serie

2 RS-485 (half-duplex), 1 RS-232

Alarma E/S

16/9

Interfaz USB

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

General

Fuente de alimentación

100 to 240 VAC, 50 to 60 Hz

Consumo

≤ 15 W (without HDD and PoE off)

Temperatura de trabajo

-10 °C to 55 °C (14 °F to 131 °F)

Condiciones de Humedad

10% to 90%

Chassis

19-inch rack-mounted 1.5U chassis

Dimensión (W × D × H)

445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")

≤ 5 kg (without HDD, 11 lb.)

Certificación

FCC

Part 15 Subpart B, ANSI C63.4-2014

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
